Infineon EVAL-2EDL23N06PJ MOSFET Gate Driver for 2EDL23N06PJ for Server, Solar Inverter

RS Stock No.:: 234-2082
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: EVAL2EDL23N06PJTOBO1
ผู้ผลิต / Manufacturer:: Infineon

Infineon EVAL-2EDL23N06PJ MOSFET Gate Driver for 2EDL23N06PJ for Server, Solar Inverter

มีส่วนลดเมื่อซื้อจำนวนมาก

ราคา / Price Each**

THB4,199.59

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB4,493.56

(รวมภาษีมูลค่าเพิ่ม)

1 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB2,500.00 (ไม่รวมภาษี)

เช็คสต็อกแบบเรียลไทม์ / Real time qty checker

ชิ้น	ต่อหน่วย
1 - 2	THB4,199.59
3 - 4	THB4,157.43
5 +	THB4,115.83

**ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 234-2082
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: EVAL2EDL23N06PJTOBO1
ผู้ผลิต / Manufacturer:: Infineon

Datasheet - 2EDL23x06PJ Family

Infineon Evaluation board, MOSFET Gate Driver, For Use With Server/Solar Inverter - EVAL2EDL23N06PJTOBO1

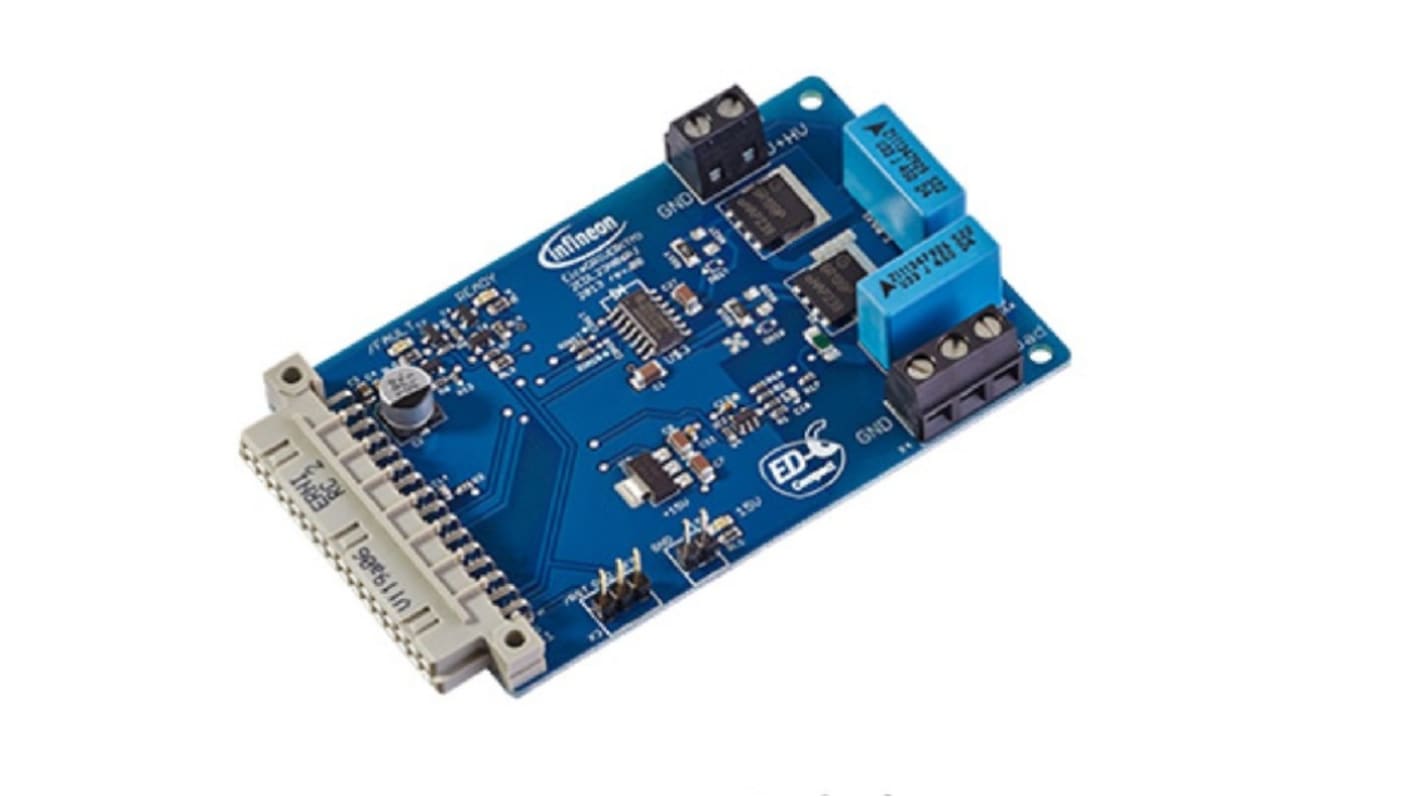

This evaluation board demonstrates the capabilities of the Infineon EiceDRIVER gate driver, designed for efficient power management in applications like solar inverters and server systems. It allows users to assess the performance of the 2EDL23N06PJ MOSFET driver, providing insights into essential functionalities for optimal operation in challenging environments.

Features & Benefits

• Short circuit protection enhances safety and reliability
• Integrated undervoltage lockout prevents operational failures
• Bootstrap functionality supports high side switching capability
• Onboard voltage regulator provides stable 5V for operation
• Current measurement capabilities improve monitoring precision
• Status LEDs deliver real-time feedback on system states

Applications

• Suitable for server power management systems
• Ideal for assessing solar inverter technologies
• Applicable in experimental power electronics setups
• Supports testing and prototyping for advanced

What power supply requirements should be maintained during operation?

The evaluation board requires a +15V external supply for the driver output and generates +5V internally.

How can short circuit detection enhance system performance?

The integrated short circuit detection measures the voltage drop across a shunt, allowing timely switching off at critical current thresholds.

Is this board suitable for multi-pulse operation?

The design is not intended for multi-pulse operation and is optimised for resonant zero-voltage switching conditions.

What measures exist for ensuring stable operation during use?

The undervoltage lockout feature monitors supply voltage and disables the driver output to prevent damage under low voltage conditions.

How can the current measurement feature be calibrated?

Calibration is recommended for the operational amplifier's output to ensure accurate current readings based on component tolerances.

คุณสมบัติ	Value
Power Management Function	MOSFET Gate Driver
For Use With	Server, Solar Inverter
Kit Classification	Evaluation Board
Featured Device	2EDL23N06PJ
Kit Name	EVAL-2EDL23N06PJ
