Infineon EVAL-M7-HVMOS-INV 3-Phase Inverter for 600 V CoolMOS™ PFD7 for EVAL-M7-D111T
- RS Stock No.:
- 248-9744
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- EVALM7HVMOSINVTOBO1
- ผู้ผลิต:
- Infineon
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB3,001.52
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,211.63
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 1 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 1 | THB3,001.52 |
| 2 - 2 | THB2,941.46 |
| 3 + | THB2,882.72 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 248-9744
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- EVALM7HVMOSINVTOBO1
- ผู้ผลิต:
- Infineon
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Infineon | |
| Power Management Function | 3-Phase Inverter | |
| For Use With | EVAL-M7-D111T | |
| Kit Classification | Evaluation Board | |
| Featured Device | 600 V CoolMOS™ PFD7 | |
| Kit Name | EVAL-M7-HVMOS-INV | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Infineon | ||
Power Management Function 3-Phase Inverter | ||
For Use With EVAL-M7-D111T | ||
Kit Classification Evaluation Board | ||
Featured Device 600 V CoolMOS™ PFD7 | ||
Kit Name EVAL-M7-HVMOS-INV | ||

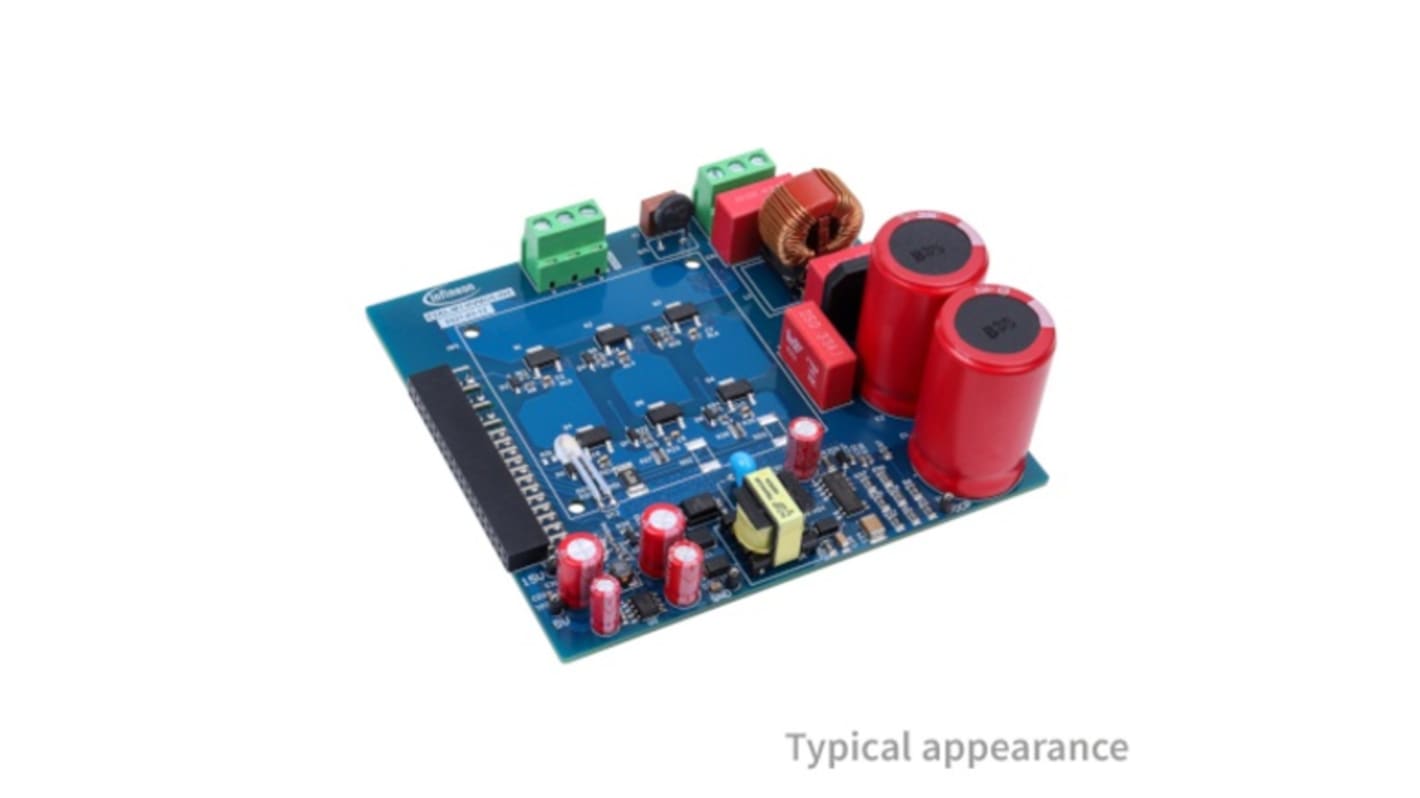

Infineon Evaluation board, 3-Phase Inverter, For Use With EVAL-M7-D111T - EVALM7HVMOSINVTOBO1
This evaluation board serves as an effective platform for testing diverse motor control applications using Infineon's advanced 600V inverter technology. It is specifically designed for compatibility with the EVAL-M7-D111T control board and highlights performance metrics enhanced by the integrated Infineon CoolMOS PFD7 technology, which optimises efficiency in power management solutions.
Features & Benefits
• Supports robust operation of PMSM and BLDC motors
• Utilises 600V CoolMOS PFD7 for enhanced performance
• Provides output power capabilities up to 300W
• Accommodates multiple current feedback configurations
• Compact design for straightforward integration in various setups
• Utilises 600V CoolMOS PFD7 for enhanced performance
• Provides output power capabilities up to 300W
• Accommodates multiple current feedback configurations
• Compact design for straightforward integration in various setups
Applications
• Suitable for driving fans and pumps in household appliances
• Appropriate for sensorless sinusoidal field-oriented control
• Ideal for evaluations under laboratory conditions
• Facilitates efficient custom motor control systems
• Appropriate for sensorless sinusoidal field-oriented control
• Ideal for evaluations under laboratory conditions
• Facilitates efficient custom motor control systems
What control board is compatible with this evaluation board?
It is designed to work seamlessly with the EVAL-M7-D111T control board, optimising motor drive performance.
How does it handle voltage levels during operation?
The evaluation board operates with a maximum DC bus voltage of 400 V, ensuring safe and efficient performance in its applications.
What are the safety precautions involved while using it?
Always allow the DC link capacitors to discharge for five minutes after use, and ensure high voltage differential probes are utilised for measuring waveform outputs.
Can I use a heatsink with the evaluation board?
Yes, incorporating a heatsink can improve thermal performance and facilitate higher output power capabilities during operation.
Is it suitable for high-frequency applications?
This power board supports a maximum switching frequency of 20 kHz, making it suitable for various high-frequency motor control scenarios.
