Infineon EVAL-1EDI60I12AF IGBT Gate Driver for IKW50N65F5, 1EDI60I12AF for Industrial drives, EV Charger, Solar Energy
- RS Stock No.:
- 234-2076
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- EVAL1EDI60I12AFTOBO1
- ผู้ผลิต:
- Infineon
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB4,326.83
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,629.71
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
สต็อกสุดท้ายของ RS
- 1 ชิ้นสุดท้ายพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 2 | THB4,326.83 |
| 3 - 4 | THB4,283.73 |
| 5 + | THB4,240.63 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 234-2076
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- EVAL1EDI60I12AFTOBO1
- ผู้ผลิต:
- Infineon
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Infineon | |
| Power Management Function | IGBT Gate Driver | |
| Product Type | Evaluation Board | |
| For Use With | Industrial drives, EV Charger, Solar Energy Systems | |
| Kit Classification | Evaluation Board | |
| Featured Device | IKW50N65F5, 1EDI60I12AF | |
| Kit Name | EVAL-1EDI60I12AF | |
| Standards/Approvals | RoHS | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Infineon | ||
Power Management Function IGBT Gate Driver | ||
Product Type Evaluation Board | ||
For Use With Industrial drives, EV Charger, Solar Energy Systems | ||
Kit Classification Evaluation Board | ||
Featured Device IKW50N65F5, 1EDI60I12AF | ||
Kit Name EVAL-1EDI60I12AF | ||
Standards/Approvals RoHS | ||

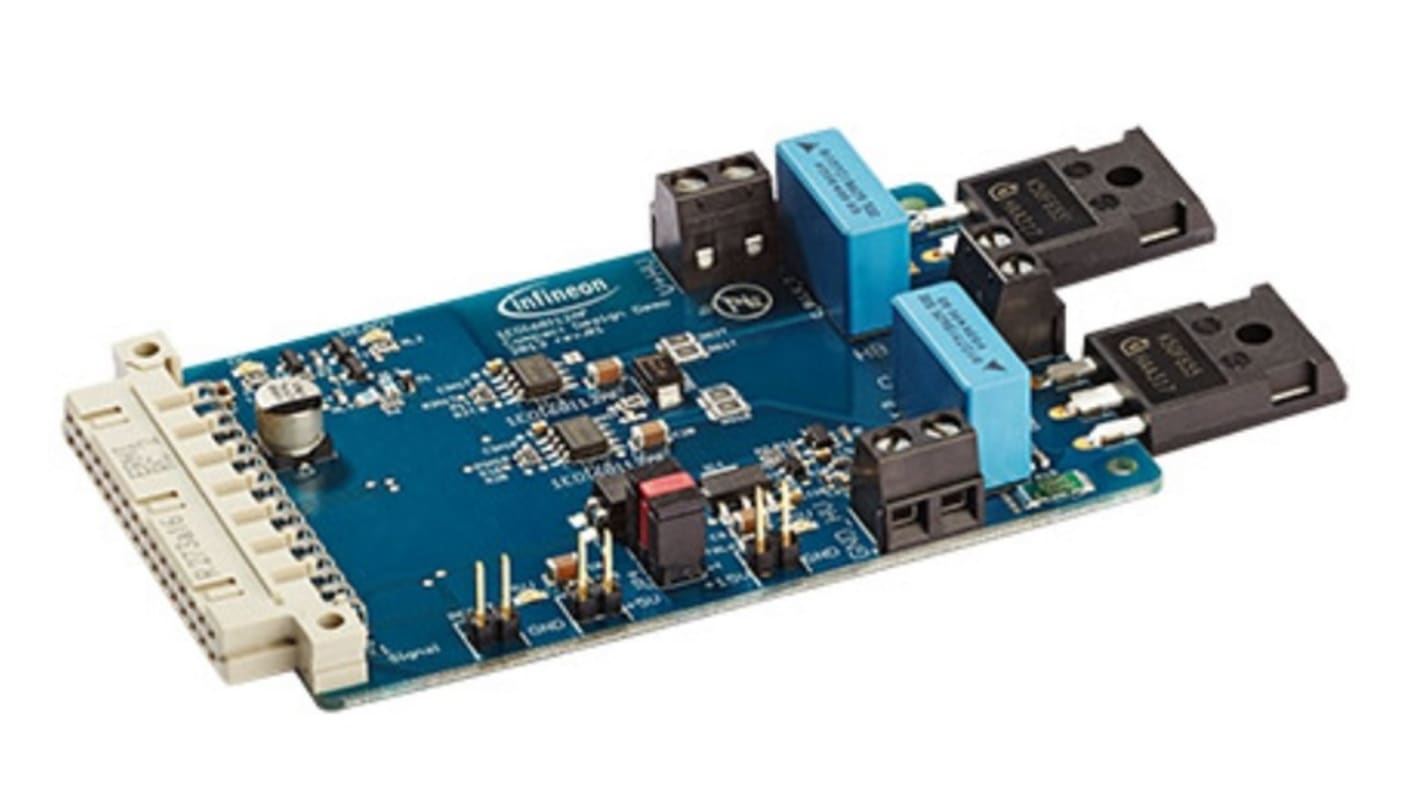

Infineon Evaluation board, IGBT Gate Driver, For Use With EV Charger/Industrial Drives/Solar Energy Systems - EVAL1EDI60I12AFTOBO1
This evaluation board demonstrates the functionalities of the Infineon IGBT gate driver, specifically the 1EDI60I12AF. It aids in the development of industrial power management solutions, improving the performance of applications such as electric vehicle chargers, industrial drives, and solar energy systems. Its design allows users to evaluate the driver’s capabilities while meeting the technical requirements for various high-voltage applications.
Features & Benefits
• Provides short circuit protection for enhanced safety
• Supports under voltage lock-out to prevent operational failures
• Incorporates a current sense amplifier for precise monitoring
• Bootstrap functionality optimises high-side gate driver performance
• Allows for input and output side separation for increased flexibility
• Operates with a high voltage supply range up to 500V
Applications
• Used in electric vehicle charger systems
• Integrated with industrial drives for power management
• Suitable for solar energy systems requiring robust gate drivers
• Employed in various power electronics development projects
What voltage supplies are needed for the board to function?
The board requires a +15V high voltage supply and a +5V for onboard circuits. Both supplies must remain stable for optimal performance.
How does the board handle overcurrent situations?
It detects overcurrent by measuring the voltage drop across a shunt resistor. When the threshold is exceeded, the gate driver inputs disable to protect the circuitry.
Can I modify the gate resistor values?
Yes, the resistor values can be adjusted to tailor the IGBT’s turn-on and turn-off characteristics. Care should be taken to manage potential noise and losses.
Is there an option for input to output isolation?
Yes, the board supports a separation feature by removing specific jumpers, allowing for a 1200V isolation between the input and output sides.
What load types can be connected to the evaluation board?
The board supports bi-directional currents and can connect to loads requiring alternating voltage, making it versatile for various applications.
