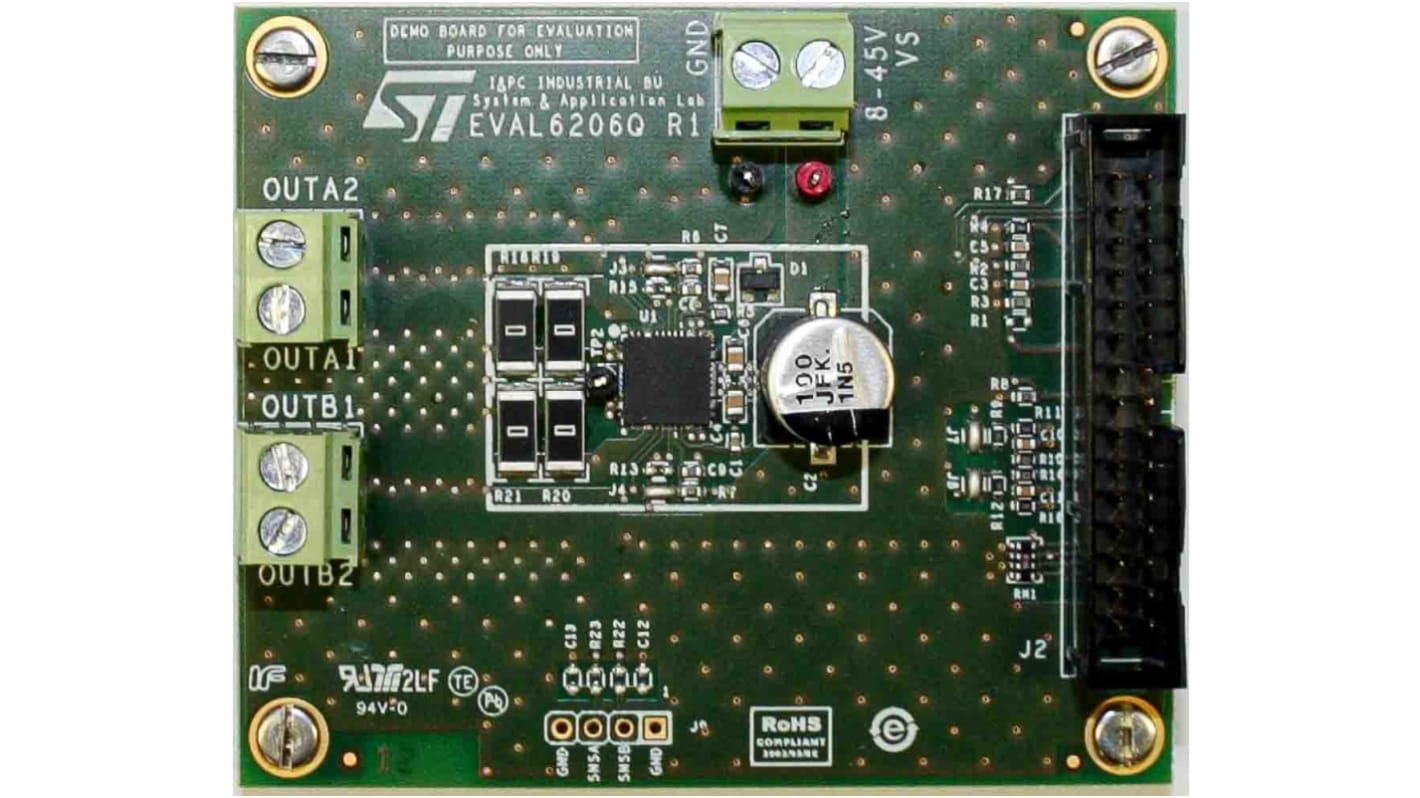

STMicroelectronics Demonstration Board for L6206Q for Drive a Single 2-Phase Stepper Motor or up to Four DC Motors

The EVAL6206Q demonstration board allows the user to test the L6206Q functions. The dual full bridges integrated into the L6206Q device can be used to drive a single 2-phase stepper motor or up to four DC motors (unidirectional). The bridges can also operate in parallel mode. The board can be driven using the STEVAL-PCC009V2 demonstration board and the PractiSPIN 2 evaluation software.

Voltage range from 8 to 52 V
Phase current up to 2.5 Ar.m.s.
Adjustable overcurrent threshold
Logic inputs 5 V / 3.3 V compliant
Small application footprint with high thermal performance
Suitable for use in combination with PractiSPIN™ 2 software
