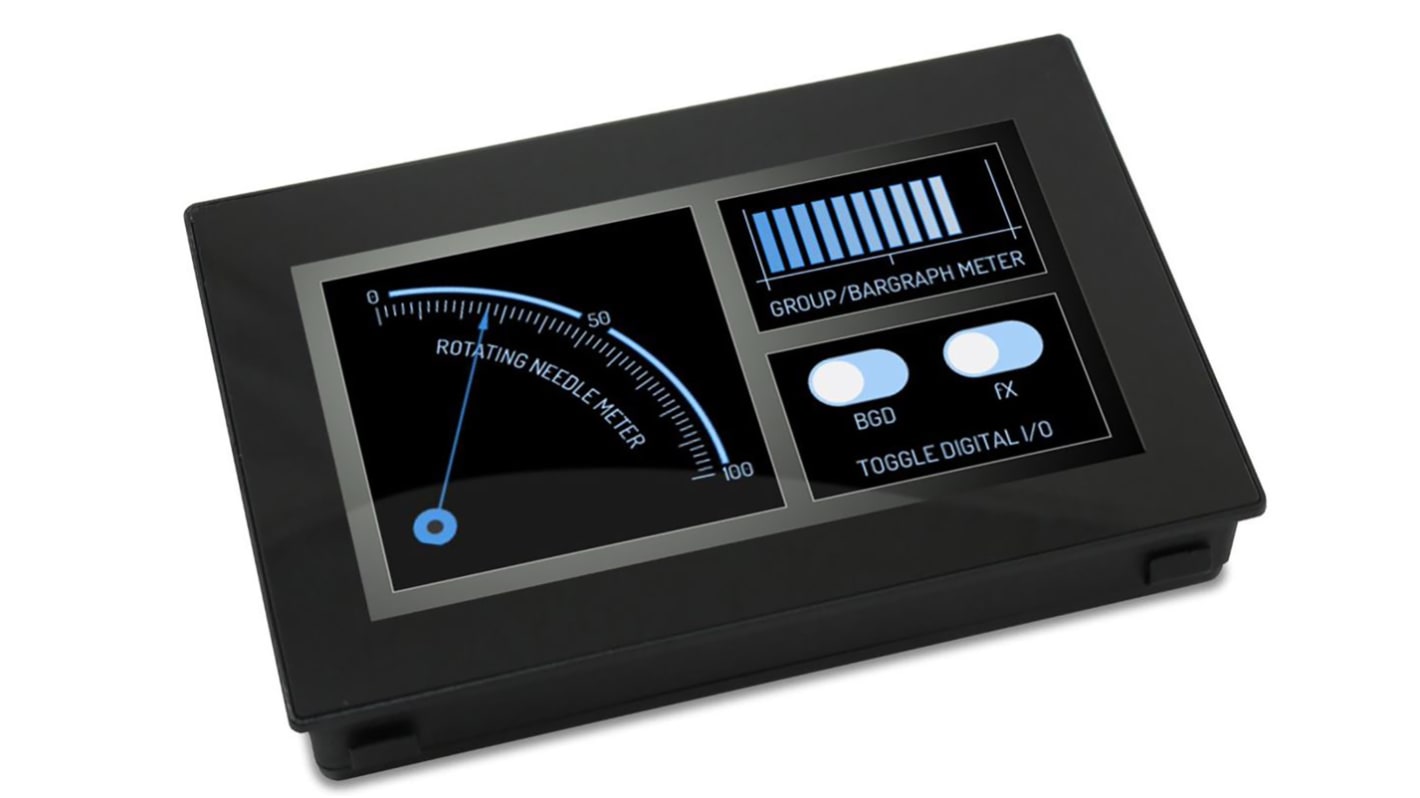

    Lascar PanelPilot , TFT Digital Panel Multi-Function Meter for Current, Voltage, 77mm x 116mm

    RS Stock No.:
    800-6712
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    SGD 43-A
    ผู้ผลิต / Manufacturer:
    Lascar
    Lascar
    ดูหมวดหมู่นี้
    93 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
    Add to Basket
    Units

    ราคา / Price Each

    คือ THB12,315.01

    คุณจ่าย

    THB10,872.02

    (exc. VAT)

    THB11,633.06

    (inc. VAT)

    UnitsPer unit
    1 - 4THB10,872.02
    5 - 9THB10,600.50
    10 +THB10,321.54
    RS Stock No.:
    800-6712
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    SGD 43-A
    ผู้ผลิต / Manufacturer:
    Lascar
    COO (Country of Origin):
    CN

    ข้อมูลทางเทคนิค / Technical Data Sheets


    Legislation and Compliance

    COO (Country of Origin):
    CN

    รายละเอียดสินค้า / Product Details

    4.3” Display with Analogue, Digital, PWM and Serial Interfaces


    SGD 43-A is a 4.3” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. The off-the-shelf display features a wealth of hardware interfaces, including four 16-bit bipolar analogue inputs (to a maximum of ±40 V dc) eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs and serial RS232. Accessories are also available to measure RS485 and temperature.

    Features and Benefits


    4.3” TFT screen with 262k colours
    Capacitive touch-screen functionality
    4 analogue inputs (±40 Vdc or 4-20 mA, 16 bit)
    8 digital input/output pins
    4 PWM outputs (8 bit)
    2 alarm outputs
    Power supply 5-30 Vdc (300 mA typical at 5 Vdc)
    Windows-based drag and drop construction
    Programmable with the USB interface
    1Gbit DDR2 SDRAM memory inside
    Simple panel mounting solution
    Screw terminal connections
    Communicate with other devices using RS-232, I²2C or SPI
    Outside dimensions are 119.3 x 79.8 x 20.0 mm

    If you're new to the PanelPilotAce community or perhaps wondering what extra functionality Version 2.0 can add to your application, watch the following link to see some of the top tips and techniques for rapid display development:

    https://www.youtube.com/watch?v=4KghwiHcA3M

    The development kit, SGD 43-A-DK+ (818-7354) is the best choice if you are starting to develop on the PanelPilotACE platform. It includes all you need to begin: an SGD 43-A, a development board and a USB cable. The board provides switches, dials, LEDs and screw terminal connections for all the input and output functionality of the SGD 43-A.


    คุณสมบัติ / Specifications

    คุณสมบัติValue
    Properties MeasuredCurrent, Voltage
    Display TypeTFT
    Cutout Height77mm
    Cutout Width116mm
    Depth20mm
    Minimum Temperature0°C
    Maximum Temperature+40°C
    SeriesPanelPilotACE
    Meter TypeDigital
