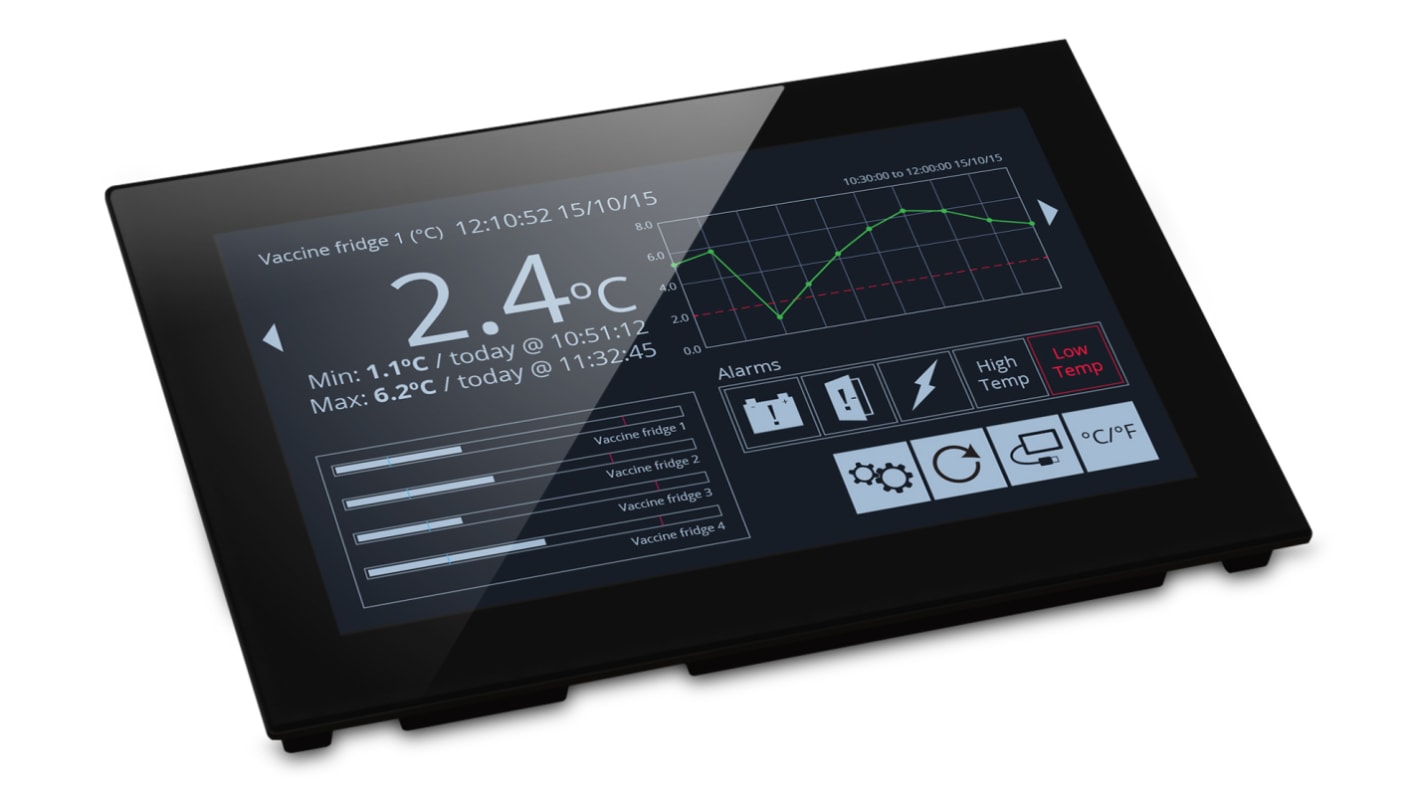

    Lascar PanelPilot , TFT Digital Panel Multi-Function Meter for Current, Voltage, 117mm x 180mm

    RS Stock No.:
    123-9655
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    SGD 70-A
    ผู้ผลิต / Manufacturer:
    Lascar
    Lascar
    ดูหมวดหมู่นี้
    3 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
    Add to Basket
    Units

    ราคา / Price Each

    THB19,775.83

    (exc. VAT)

    THB21,160.14

    (inc. VAT)

    UnitsPer unit
    1 +THB19,775.83
    RS Stock No.:
    123-9655
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    SGD 70-A
    ผู้ผลิต / Manufacturer:
    Lascar
    COO (Country of Origin):
    CN

    ข้อมูลทางเทคนิค / Technical Data Sheets


    Legislation and Compliance

    COO (Country of Origin):
    CN

    รายละเอียดสินค้า / Product Details

    7" All-in-One HMI & PLC with Analogue, Digital, PWM & Serial Interfaces


    The PanelPilotACE SGD 70-A uses Lascar's PanelPilotACE Design Studio, a free drag-and-drop style software package that allows for rapid development of advanced user interfaces and panel meters. The HMI and PLC all-in-one solution features a wealth of hardware interfaces including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs, PID Control, Ethernet FTP for logged data, multi-channel data logging and trend graphs, serial RS232 and RS485 and an additional add on boards to measure temperature or support CANBus.


    7" TFT display with 16.7M colours
    Capacitive touch screen
    Four 16-bit to ±40V d.c.
    5 to 30V d.c. (1A typical at 5V d.c.) supply


    Users can program their display using the free PanelPilotACE design studio software. With a wide range or resources the software allows the creation of anything from simple meters and dials, through to advanced user interfaces.

    The PanelPilotACE Design Studio is compatible with Windows 7, 8 and 10 and can be downloaded for free from www.lascarelectronics.com/software/panelpilot-software


    Applications


    Industrial Equipment
    HVAC
    Energy Management Equipment
    Automotive
    Scientific Equipment
    Process Control & Automation
    PLC / HMI / Data Acquisition
    Marine
    Medical & Healthcare Equipment



    คุณสมบัติ / Specifications

    คุณสมบัติValue
    Properties MeasuredCurrent, Voltage
    Display TypeTFT
    Cutout Height117mm
    Cutout Width180mm
    Depth18.1mm
    Minimum Temperature0°C
    Maximum Temperature+40°C
    Measurement Range4 → 20 mA, -40 → +40V
    Meter TypeDigital
    SeriesPanelPilotACE
    Minimum Measurement-40 V, 4 mA
