    Lascar PanelPilot , TFT Digital Panel Multi-Function Meter for Current, 54.5mm x 87mm

    RS Stock No.:
    777-6830
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    SGD 28-M420
    ผู้ผลิต / Manufacturer:
    Lascar
    Lascar
    ดูหมวดหมู่นี้
    18 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
    Add to Basket
    Units

    ราคา / Price Each

    คือ THB5,189.09

    คุณจ่าย

    THB4,581.25

    (exc. VAT)

    THB4,901.94

    (inc. VAT)

    UnitsPer unit
    1 - 4THB4,581.25
    5 - 9THB4,466.90
    10 +THB4,349.03
    RS Stock No.:
    777-6830
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    SGD 28-M420
    ผู้ผลิต / Manufacturer:
    Lascar
    COO (Country of Origin):
    CN

    ข้อมูลทางเทคนิค / Technical Data Sheets


    Legislation and Compliance

    COO (Country of Origin):
    CN

    รายละเอียดสินค้า / Product Details

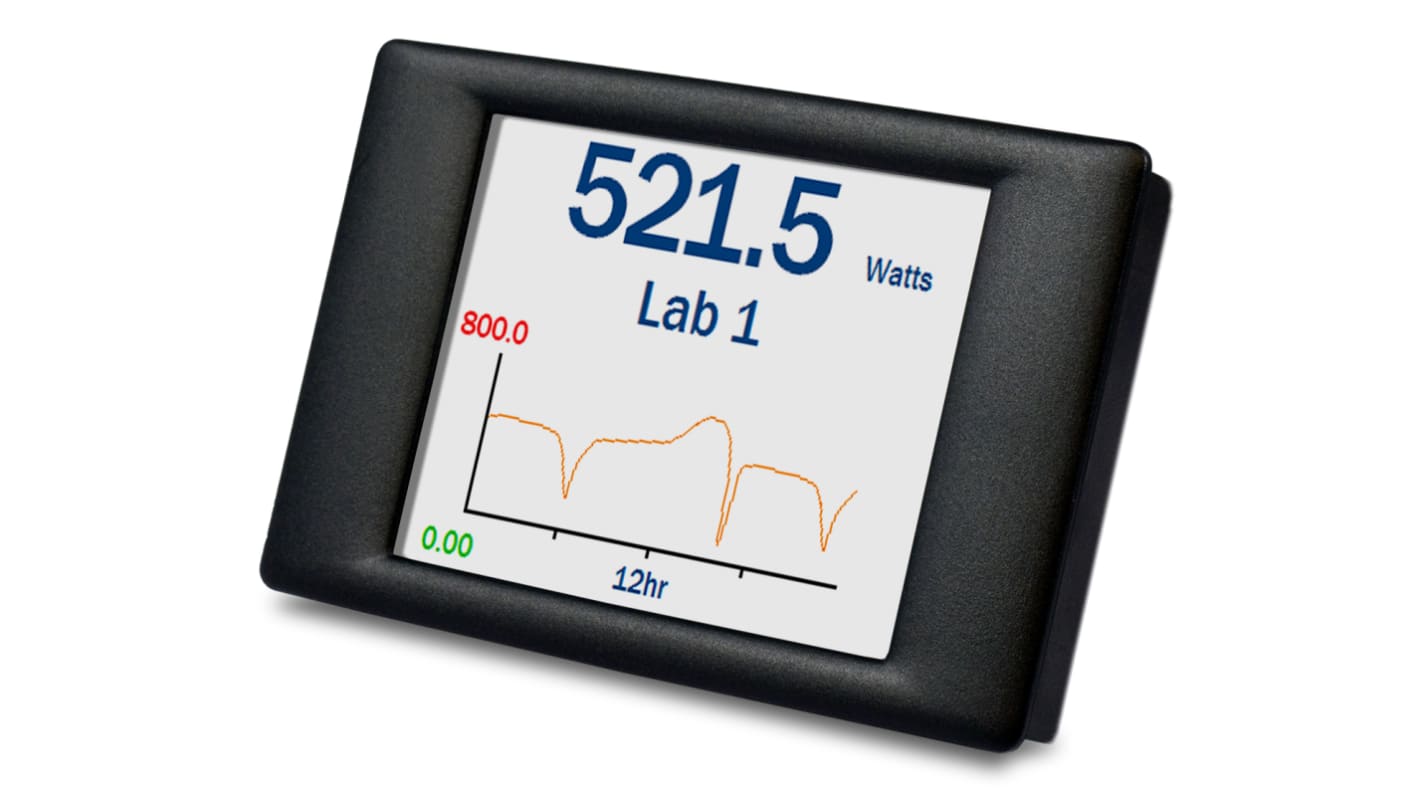

    2.8" Programmable TFT 4-20mA Process Meter


    The SGD 28-M420 from the PanelPilot range of colour TFT graphics meters features dual 4-20mA analogue inputs, alarm outputs and 2.8" colour touchscreen display. Using the PanelPilot software (available for Windows 7, 8.1 and 10) users can configure their device, choosing from a range of bar-graphs, tank level, analogue style and trend graph configurations. Further customisation of colours, text labels, units and input scaling can be carried out and uploaded to the SGD 28-M420 display through the USB connection.

    Features and Benefits:


    • 2.8"" colour TFT screen

    • PanelPilot software for setup and customise the display

    • Measures 4-20mA current loop (also 10-50mA or 0-50mA possible)

    • Simple panel mounting

    • Multiple configurations included free

    • Compatible with Windows 7, 8.1 and 10

    • Digital hold

    Software


    The PanelPilot software is available for download for free from www.lascarelectronics.com/software/panelpilot-software
    Easy to install and use, the control software runs under Windows 7, 8.1 and 10.

    Applications:


    Marine
    Test & Measurement
    Industrial


    คุณสมบัติ / Specifications

    คุณสมบัติValue
    Properties MeasuredCurrent
    Display TypeTFT
    Cutout Height54.5mm
    Cutout Width87mm
    Depth17.8mm
    Minimum Temperature0°C
    Maximum Temperature+40°C
    Measurement Range0 to 40V d.c.
    SeriesPanelPilot
    Meter TypeDigital
