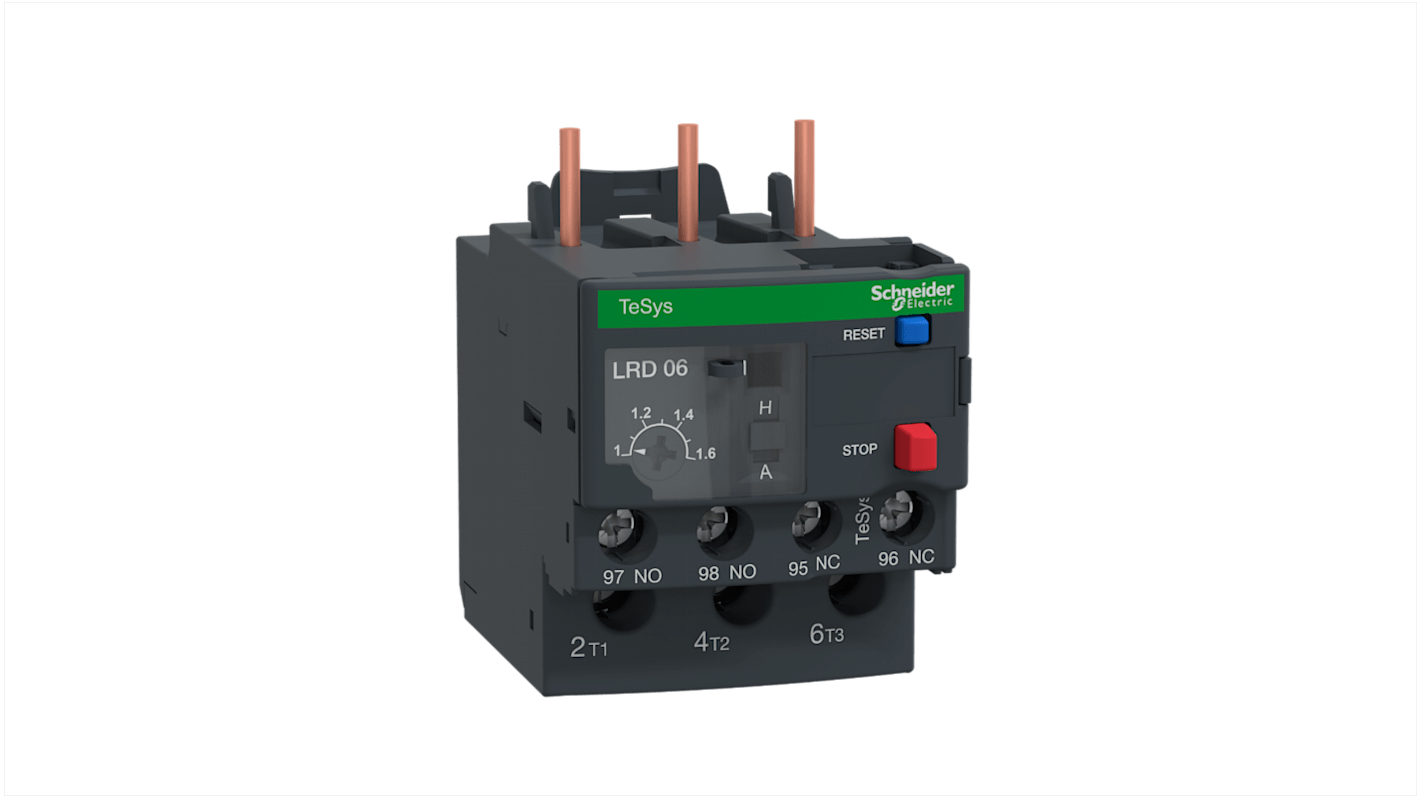

Schneider Electric LRD Overload Relay 1NO + 1NC, 1 → 1.6 A F.L.C, 1.6 A Contact Rating, 3P, TeSys
- RS Stock No.:
- 394-9419
- Distrelec หมายเลขบทความ:
- 136-22-705
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- LRD06
- ผู้ผลิต:
- Schneider Electric
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB1,222.65
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,308.24
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 198 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 4 | THB1,222.65 |
| 5 + | THB1,185.98 |
*ตัวบ่งบอกราคา / price indicative
Better World
กลุ่มผลิตภัณฑ์ Better World ของเรานำเสนอผลิตภัณฑ์ที่ช่วยให้คุณตัดสินใจเลือกผลิตภัณฑ์ที่เป็นมิตรต่อสิ่งแวดล้อมและน่าเชื่อถืออย่างง่ายดาย คลิกที่นี่เพื่อดูข้อมูลเพิ่มเติม
- RS Stock No.:
- 394-9419
- Distrelec หมายเลขบทความ:
- 136-22-705
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- LRD06
- ผู้ผลิต:
- Schneider Electric
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schneider Electric | |
| FLC Motor Rating | 1 → 1.6 A | |
| Contact Current Rating | 1.6 A | |
| Range | TeSys | |
| Pole Configuration | 3P | |
| Series | LRD | |
| Mounting Style | Direct Contactor | |
| Normal State Configuration | NO/NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic, Manual | |
| Number Of Auxiliary Contacts | 2 | |
| Width | 45mm | |
| Length | 66mm | |
| Depth | 70mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -20°C | |
| Better World Verification | Green Premium | |
| Operating Temperature Range | -20 → +60 °C | |
| Better World Product | Yes | |
| Contact Voltage Rating | 690 V ac | |
| Supply Voltage | 690 V ac | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schneider Electric | ||
FLC Motor Rating 1 → 1.6 A | ||
Contact Current Rating 1.6 A | ||
Range TeSys | ||
Pole Configuration 3P | ||
Series LRD | ||
Mounting Style Direct Contactor | ||
Normal State Configuration NO/NC | ||
Terminal Type Screw | ||
Reset Method Automatic, Manual | ||
Number Of Auxiliary Contacts 2 | ||
Width 45mm | ||
Length 66mm | ||
Depth 70mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
Better World Verification Green Premium | ||
Operating Temperature Range -20 → +60 °C | ||
Better World Product Yes | ||
Contact Voltage Rating 690 V ac | ||
Supply Voltage 690 V ac | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- FR
Schneider Electric LRD Series Overload Relay, 1.6A Contact Current Rating, 3P Pole Configuration - LRD06
This overload relay is designed for efficient motor protection in industrial settings. The TeSys range specifically caters to applications requiring a reliable overload relay rated for AC supply voltages up to 690V. With dimensions of 66mm in height, 45mm in width, and 70mm in depth, it seamlessly integrates into various control systems. This thermal overload relay operates within a current range of 1 to 1.6A, providing robust functionality backed by compliant specifications.
Features & Benefits
• Equipped with automatic and manual reset methods for user flexibility
• Maintains operational thermal protection class 10A for precise control
• Incorporates a 1NO + 1NC contact configuration for versatile application
• Supports screw clamp terminal connections for easy installation
• Operates effectively across a wide temperature range of -20°C to +60°C
• Designed for compatibility with various contactor models, enhancing versatility
• Maintains operational thermal protection class 10A for precise control
• Incorporates a 1NO + 1NC contact configuration for versatile application
• Supports screw clamp terminal connections for easy installation
• Operates effectively across a wide temperature range of -20°C to +60°C
• Designed for compatibility with various contactor models, enhancing versatility
Applications
• Used in conjunction with multiple types of contactors for motor control
• Ideal for thermal protection in industrial motor
• Suitable for both AC and DC network types in diverse settings
• Utilised in automation systems requiring reliable overload management
• Ideal for thermal protection in industrial motor
• Suitable for both AC and DC network types in diverse settings
• Utilised in automation systems requiring reliable overload management
How does the automatic reset function enhance usability?
The automatic reset function simplifies operations, as it allows the relay to resume normal function after a fault condition without necessitating manual intervention, reducing downtime and increasing reliability in various applications.
What is the purpose of the 1NO + 1NC configuration?
The 1NO + 1NC configuration allows for simultaneous signalling of operational status
while one contact can indicate a running motor, the other can be used to interrupt the circuit in case of an overload, ensuring safety and efficiency.
What is the significance of the thermal overload class 10A?
This class indicates the relay's response time in relation to overload currents, ensuring that it will trip quickly under fault conditions, thereby protecting motors and associated equipment from potential damage due to prolonged overload.
How can this overload relay manage high operational temperatures?
With a maximum operating temperature of +60°C, it is designed with robust thermal management, allowing it to function effectively in harsh environments while maintaining compliance with relevant safety standards.
What benefit does the screw clamp terminal provide?
The screw clamp terminal design ensures secure connections that accommodate various cable types, allowing for easy installation and maintenance, which is critical for ensuring reliable operation in industrial environments.
