Lovato, RF38 Thermal Overload Relay NO/NC, 1A, 1.6 A F.L.C, 1.6A Contact Rating 3
- RS Stock No.:
- 685-1595
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RF380160
- ผู้ผลิต:
- Lovato
ยอดรวมย่อย (1 ชิ้น)*
THB2,453.42
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,625.16
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 41 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,453.42 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 685-1595
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RF380160
- ผู้ผลิต:
- Lovato
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Lovato | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 1, 1.6A | |
| Relay Contact Current | 1.6A | |
| Mount Type | Direct | |
| Series | RF38 | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | NO/NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Width | 45mm | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 1 to 1.6 A | |
| Length | 81mm | |
| Contact Voltage | 690V | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CSA, EAC, IEC/EN 60947, UL 508 | |
| Depth | 80.7mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Lovato | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 1, 1.6A | ||
Relay Contact Current 1.6A | ||
Mount Type Direct | ||
Series RF38 | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration NO/NC | ||
Terminal Type Screw | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Width 45mm | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 1 to 1.6 A | ||
Length 81mm | ||
Contact Voltage 690V | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CSA, EAC, IEC/EN 60947, UL 508 | ||
Depth 80.7mm | ||
- COO (Country of Origin):
- IT

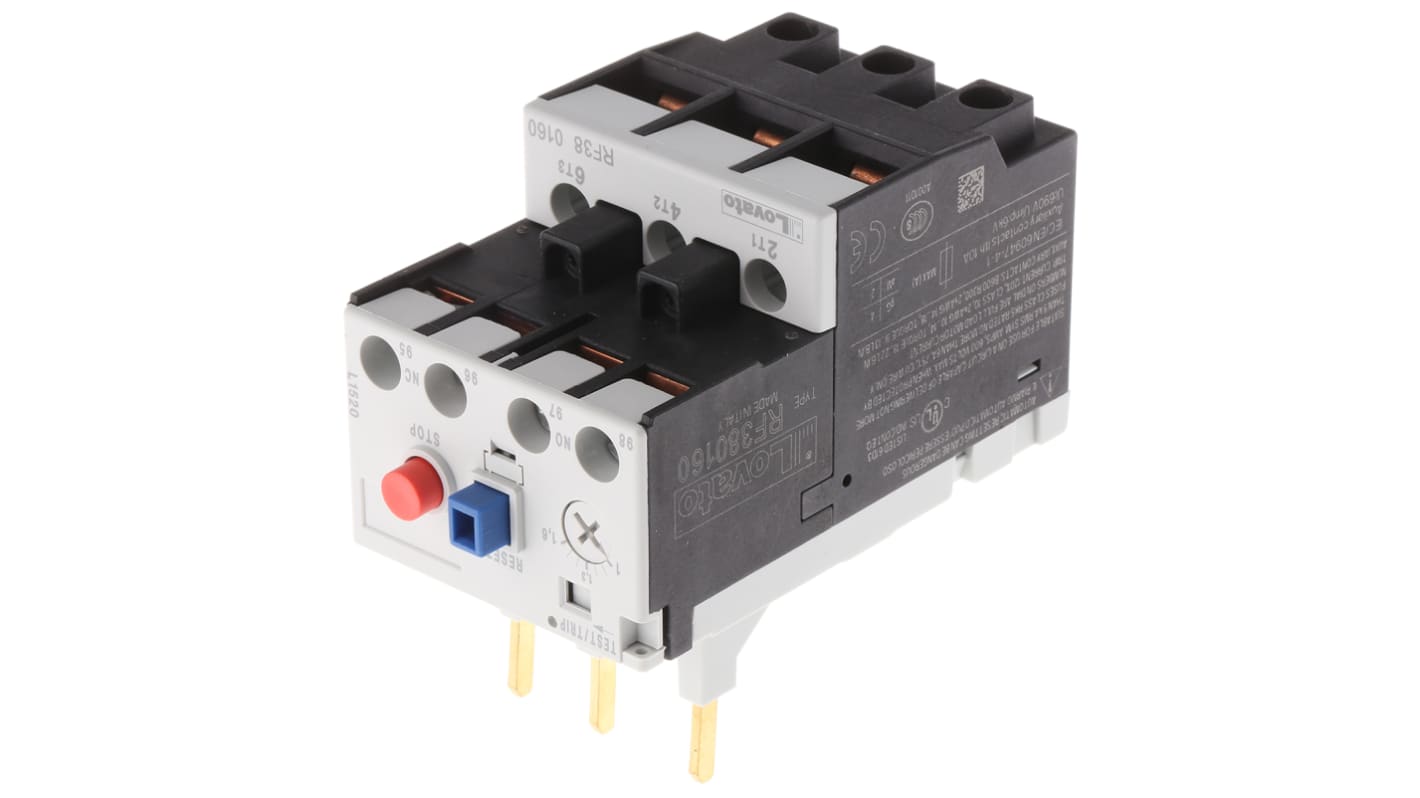

Lovato RF38 Series Thermal Overload Relay, 1.6A Contact Current Rating, 3P Pole Configuration - RF380160
This thermal overload relay by Lovato is a high-quality product designed for efficient motor protection in various industrial applications. With a contact current rating of 1.6A and automatic/manual reset method, this relay ensures optimal performance and safety for motors.
Features & Benefits
• Contact current rating of 1.6Afor precise motor protection
• Automatic and manual reset method for flexibility in operation
• 3P pole configuration for versatility
• Wide operating temperature range of -25 to +60 °C for adaptability in different environments
Applications
• Motor Protection in Industrial Machinery
• HVAC Systems
• Elevators and Escalators
• Conveyors and Material Handling Equipment
Can it be used for protecting motors in lift systems?
Yes, this thermal overload relay is suitable for protecting motors in lift systems due to its efficient operation and reliable performance.
Will it work in HVAC systems with varying operating temperatures?
Yes, the wide operating temperature range of -25 to +60 °C makes it ideal for use in HVAC systems with varying temperature conditions.
Is it compatible with 3-phase motor configurations?
Yes, the 3P Pole Configuration ensures compatibility with 3-phase motor setups for seamless integration.
Can it handle high-traffic industrial applications?
Yes, this relay is designed to handle high-traffic industrial applications with ease, providing reliable motor protection at all times.
Is it suitable for conveyor systems with fluctuating motor loads?
Yes, the contact current rating of 1.6A allows it to effectively protect motors in conveyor systems with fluctuating loads.
