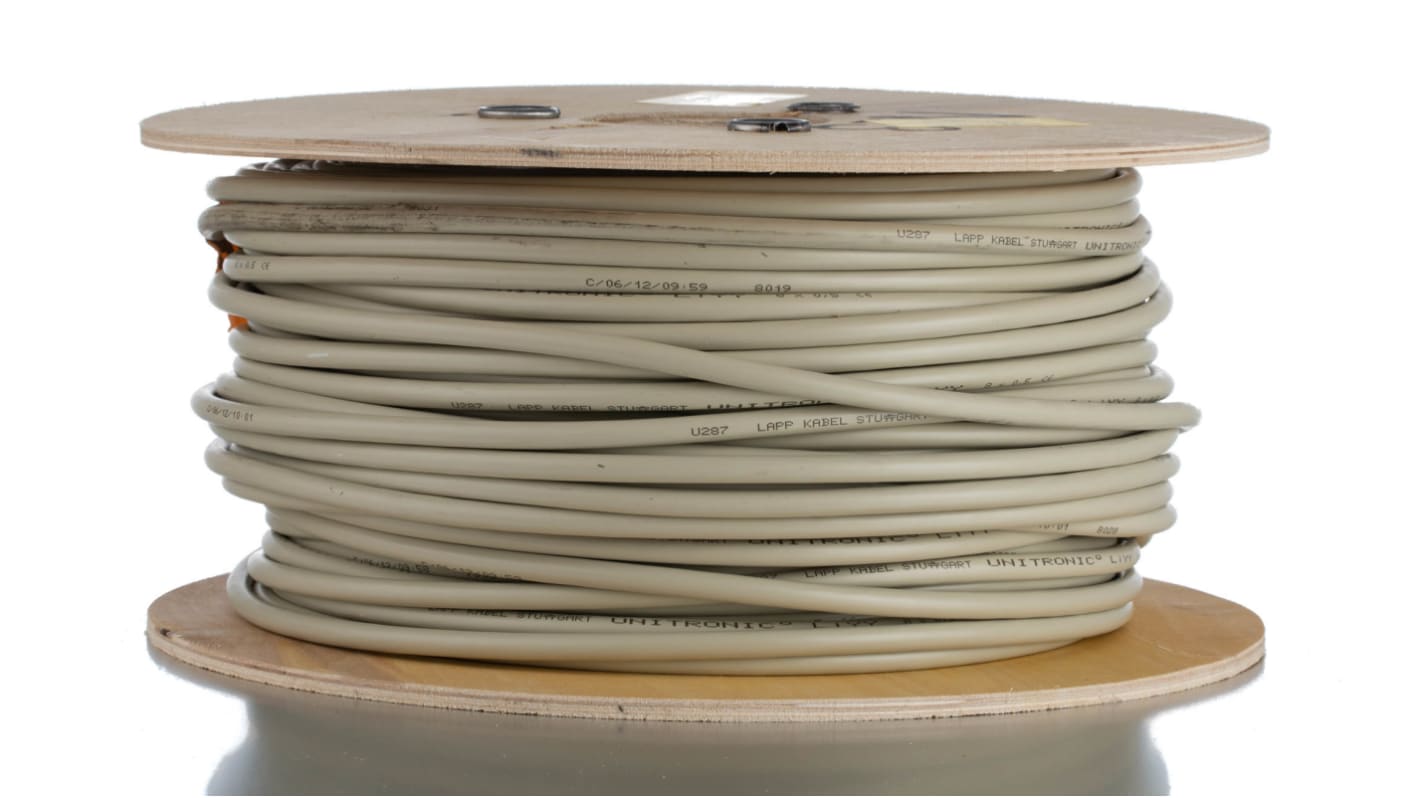

Lapp UNITRONIC LiYY Series Data Cable 8 Pairs 8 Cores 0.5 mm² 100 m Grey Sheath PVC

รับส่วนลดสำหรับการซื้อจำนวนมาก

เพิ่มอีก 5 ชิ้นเพื่อประหยัดได้ 17%

ดูตัวเลือกการกำหนดราคาในการซื้อปริมาณมาก

ยอดรวมย่อย (1 รีล รีลละ 100 เมตร)*

THB18,067.10

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB19,331.80

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 25 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ม้วน
ต่อม้วน
ต่อเมตร*
การประหยัด
1 - 4THB18,067.10THB180.671-
5 +THB14,869.22THB148.69217%

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
491-8977
Distrelec หมายเลขบทความ:
300-49-388
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
0028508
ผู้ผลิต:
Lapp
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Lapp

Product Type

Data Cable

Number of Pairs

8

Cross Sectional Area

0.5mm²

Number of Cores

8

Cable Length

100m

Jacket Colour

Grey

Outside Diameter

8mm

Conductor Type

Stranded

Minimum Operating Temperature

-40°C

Jacket Material

PVC

Maximum Operating Temperature

80°C

Standards/Approvals

EN 13501-6 and EN 50575

Screened/Unscreened

Unscreened

Number of Strands

16

Fire Behaviour

Flame Retardant acc. to IEC 60332-1-2 resp. EN 60332-1-2

Core Strands

16 x 200 μm

Conductor Material

Bare Copper

Series

UNITRONIC LiYY

Voltage

350V

Size of Strands

200μm

COO (Country of Origin):
DE

LAPP Unscreened Multicore Data Cable, 20AWG, 100m Length - UNITRONIC LiYY Series - 28508


Use this data cable from LAPP for effective communication between your control devices. It's an unshielded YY cable type, which means both its insulation and outer sheath are made of PVC (polyvinyl chloride). This provides durability and impact resistance so you can be sure the cable will perform reliably even in harsh industrial conditions. It's also a safe choice as its flame-resistant properties will help prevent the spread of flames if a fire occurs.

Features & Benefits


• Wide operating temperature range of -40°C to +80°C ensures safe use in tough conditions

• Cable length of 100m means you get sufficient supply for several jobs

• Voltage rating of 500V (volts), so suitable for low-voltage applications

• Compact outer diameter of 8mm for space efficiency in busy enclosures

Applications


• Process and control equipment

• Office machines

• Measuring equipment

How do I maintain this data cable?


You can maintain this cable by carrying out checks periodically for cuts or burns along its length. If you find burns, check the supply current doesn't exceed the cable's rated current.
