Lapp UNITRONIC Series Data Cable, 8 Pairs, 16 Cores, 0.5 mm², Screened, 20 AWG, 50m, Screened Shield, Li2YCY Cable
- RS Stock No.:
- 807-9051
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 0031333
- ผู้ผลิต:
- Lapp
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 รีล รีลละ 50 เมตร)*
THB18,301.94
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB19,583.08
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 8 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ม้วน | ต่อม้วน | ต่อเมตร* |
|---|---|---|
| 1 - 4 | THB18,301.94 | THB366.039 |
| 5 + | THB17,020.78 | THB340.416 |
*price indicative
- RS Stock No.:
- 807-9051
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 0031333
- ผู้ผลิต:
- Lapp
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 8 | |
| Cross Sectional Area | 0.5 mm² | |
| Number of Cores | 16 | |
| American Wire Gauge | 20 AWG | |
| Screened/Unscreened | Screened | |
| Length | 50m | |
| Shield Type | S/UTP | |
| CPR Certification | Eca | |
| Sheath Colour | Grey | |
| Cable Type | Li2YCY | |
| Outer Diameter | 12.7mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 100 Ω | |
| Fire Behaviour | Flame Retardant | |
| Shielded/Unshielded | Shielded | |
| Voltage Rating | 250 V | |
| Standards Met | IEC60332-1 | |
| Series | UNITRONIC | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 8 | ||
Cross Sectional Area 0.5 mm² | ||
Number of Cores 16 | ||
American Wire Gauge 20 AWG | ||
Screened/Unscreened Screened | ||
Length 50m | ||
Shield Type S/UTP | ||
CPR Certification Eca | ||
Sheath Colour Grey | ||
Cable Type Li2YCY | ||
Outer Diameter 12.7mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 100 Ω | ||
Fire Behaviour Flame Retardant | ||
Shielded/Unshielded Shielded | ||
Voltage Rating 250 V | ||
Standards Met IEC60332-1 | ||
Series UNITRONIC | ||
- COO (Country of Origin):
- DE

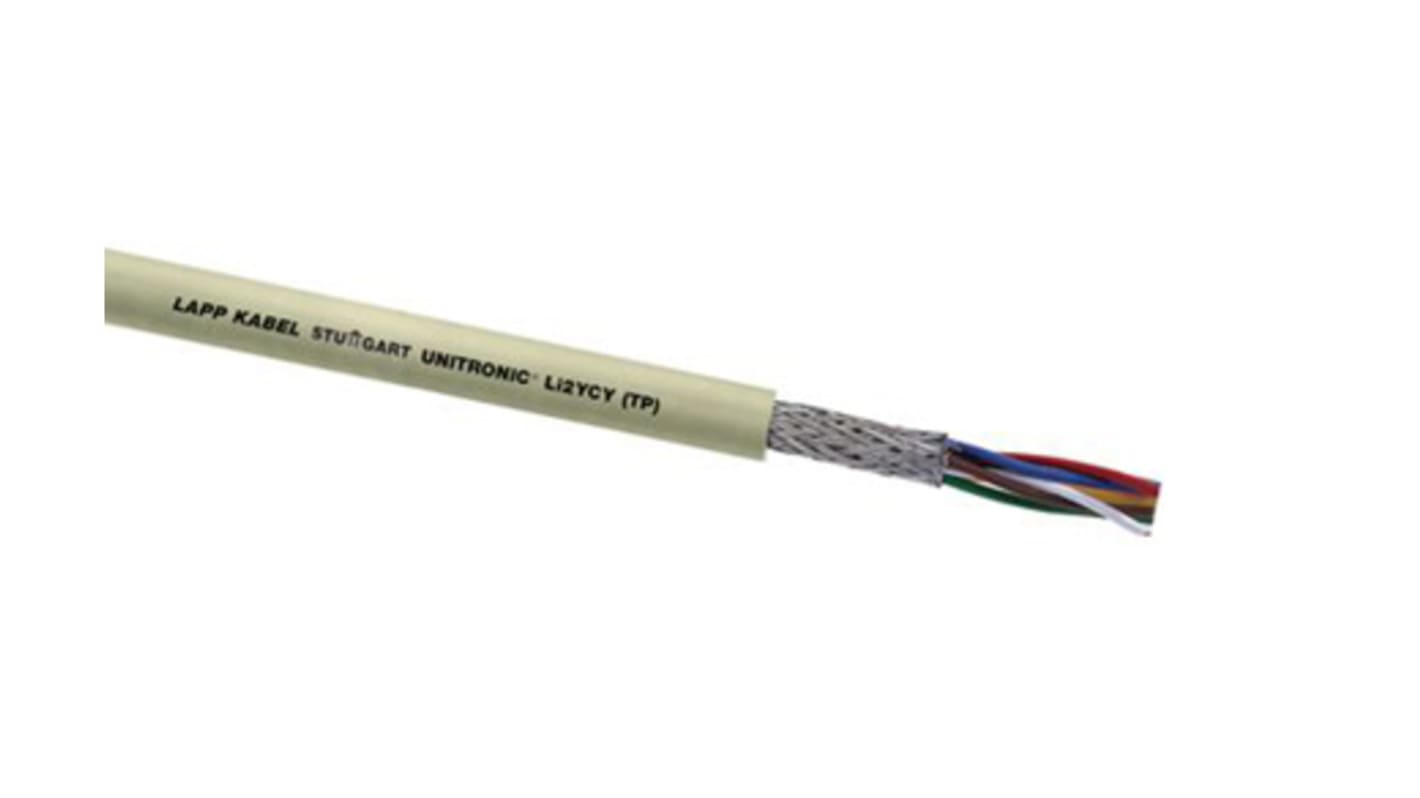

Unitronic Li2YCY Cable
From Lapp, this Unitronic Li2YCY (TP) cable is a low frequency low capacitance data cable that is well suited for wiring data systems that require a transmission of low, sensitive signals and high bit rates.
The cable has a twisted pair construction, and features a tinned-copper braided screen that protects against signal interference. It also had a PVC sheath, and is optimized for installations with limited flexibility, and for use in dry or damp interiors.
Features and Benefits
• Qualified for RS422 and RS485 interfaces
• Intended for limited flexible use and for fixed installation
• Flame retardant to IEC 60332-1-2
• Stranded 7-wire bare copper conductor
• Operating temperature in fixed installations: -40°C to +80°C
• Operating temperature with occasional flexing: -5°C to +70°C
Applications
Unitronic Li2YCY cable is suitable for signal, control and measuring applications, and is often used in;
• Electronic circuits
• Computer Systems
• Machine design
• Office equipment
Accessories
Unitronic cable should be used with accessories that match its capabilities, such as the Lapp range of Skintop MS-HF-M SC cable glands that have low resistance contact as standard.
• 136-8515 is an M12 Skintop EMC Cable Gland
• 136-8516 is an M16 Skintop EMC Cable Gland
• 136-8517 is an M20 Skintop EMC Cable Gland
• 136-8518 is an M25 Skintop EMC Cable Gland
• 136-8519 is an M32 Skintop EMC Cable Gland
The cable has a twisted pair construction, and features a tinned-copper braided screen that protects against signal interference. It also had a PVC sheath, and is optimized for installations with limited flexibility, and for use in dry or damp interiors.
Features and Benefits
• Qualified for RS422 and RS485 interfaces
• Intended for limited flexible use and for fixed installation
• Flame retardant to IEC 60332-1-2
• Stranded 7-wire bare copper conductor
• Operating temperature in fixed installations: -40°C to +80°C
• Operating temperature with occasional flexing: -5°C to +70°C
Applications
Unitronic Li2YCY cable is suitable for signal, control and measuring applications, and is often used in;
• Electronic circuits
• Computer Systems
• Machine design
• Office equipment
Accessories
Unitronic cable should be used with accessories that match its capabilities, such as the Lapp range of Skintop MS-HF-M SC cable glands that have low resistance contact as standard.
• 136-8515 is an M12 Skintop EMC Cable Gland
• 136-8516 is an M16 Skintop EMC Cable Gland
• 136-8517 is an M20 Skintop EMC Cable Gland
• 136-8518 is an M25 Skintop EMC Cable Gland
• 136-8519 is an M32 Skintop EMC Cable Gland
