Lapp Multicore Data Cable, 0.5 mm², 25 Cores, 20 AWG, Screened, 50m, Grey Sheath
- RS Stock No.:
- 491-8551
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 0034625
- ผู้ผลิต / Manufacturer:
- Lapp
13 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price 1 Reel of 50 Metre(s)
THB23,379.04
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB25,015.57
(รวมภาษีมูลค่าเพิ่ม)
ม้วน | ต่อม้วน | ต่อเมตร* |
|---|---|---|
| 1 - 10 | THB23,379.04 | THB467.581 |
| 11 + | THB22,932.57 | THB458.651 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 491-8551
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 0034625
- ผู้ผลิต / Manufacturer:
- Lapp
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details

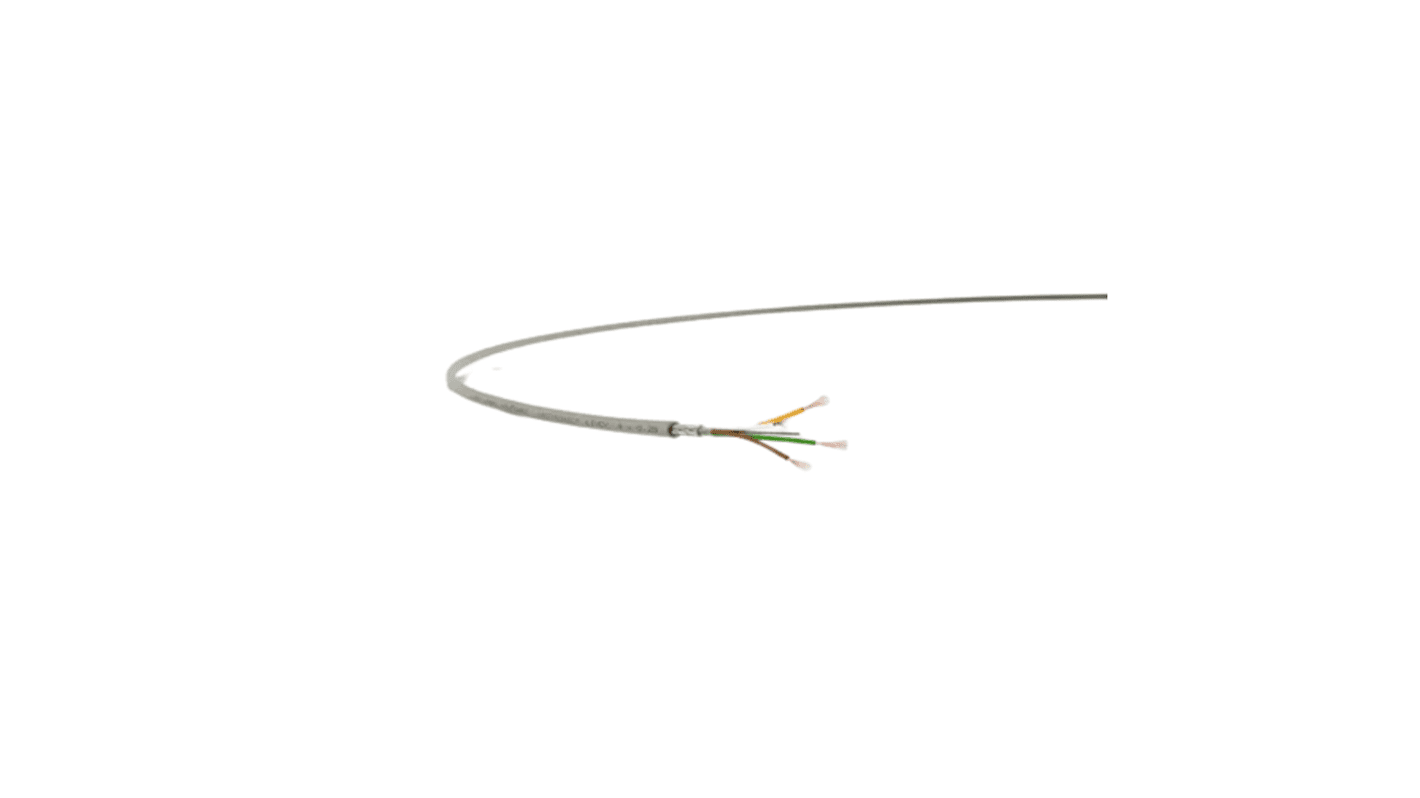

LAPP Control Cable, 25 Cores, 0.5mm² Conductor Cross Section - UNITRONIC Series - 0034625
Ensure reliable data transfer with this control cable from LAPP. It features tinned copper braiding that shields against EMI and RFI, so you get noiseless signal transmission. The 25 copper cores are highly conductive and support a reliable electrical connection. A grey PVC jacket helps protect the internal wires against impact, wear and chemicals for long-lasting performance in harsh industrial environments.
Features & Benefits
• Colour-coded conductors for immediate identification during installation and maintenance
• Voltage rating of 250V for use in low-powered systems
• Broad operating temperature range of -40°C to +80°C for use in tough environments
• Minimum bending radius of six times the outer diameter in a fixed installation for a flexible connection
• Voltage rating of 250V for use in low-powered systems
• Broad operating temperature range of -40°C to +80°C for use in tough environments
• Minimum bending radius of six times the outer diameter in a fixed installation for a flexible connection
Applications
• Chemical processing
• Recycling facilities
• Vehicle assembly
• Energy industries
• Recycling facilities
• Vehicle assembly
• Energy industries
Can I safely use this cable in damp areas?
Yes, the cable comes with PVC insulation that provides good protection against moisture.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Cross Sectional Area | 0.5 mm² |
| Number of Cores | 25 |
| American Wire Gauge | 20 AWG |
| Screened/Unscreened | Screened |
| Length | 50m |
| Shield Type | Tinned Copper Braid |
| Sheath Colour | Grey |
| CPR Certification | Eca |
| Cable Type | LiYCY |
| Outer Diameter | 13.7mm |
| Outer Sheath Material | PVC |
| Cable Shape | Multicore |
| Shielded/Unshielded | Shielded |
| Voltage Rating | 500 V |
| Fire Behaviour | Flame Retardant |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Standards Met | CE |
| Core Strands | 16/0.20 mm |
| Series | UNITRONIC LiYCY |
