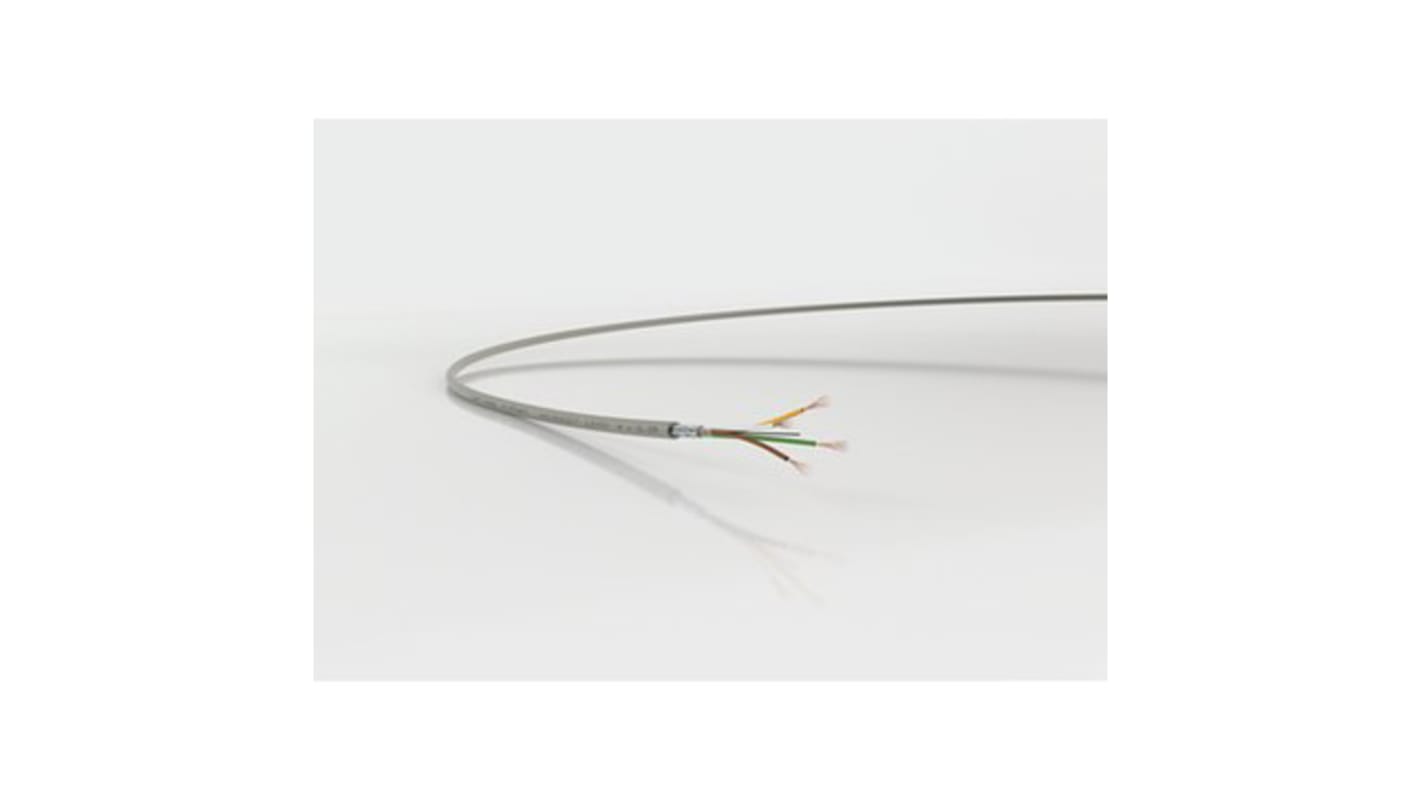

Lapp UNITRONIC LiYCY Series Data Cable, 25 Cores, 0.34 mm², Screened, 22 AWG, 50m, Screened Shield, LiYCY Cable

A CY multi-conductor cable with tinned copper braid shielding.

Features and Benefits
· Core insulation with PVC base
· Cores stranded in layers
· DIN colour code
· Shield braid made from tinned wires
· Transparent outer sheath made from special PVC-based mixture
· Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)
· Pebble grey RAL 7032

Unitronic® LiYCY are data cables with DIN colour code. These data or signal cables are used for computers and electronic control devices wherever screened cables with small dimensions are required.

Applications
· RS 232
· Process control
· Communications, signal & control
· Signal & broadcast

VDE 482, VDE 0472, IEC 332.1 and DIN 4700 colour code

When you need a thin wire to connect your computer system or office equipment, look to this data cable from LAPP. Thanks to its compact outer diameter of just 11.9mm, it's a breeze to fit into a slim enclosure or wall cavity. The cord features PVC insulation that stands up to wear and chemicals for use in heavy-duty environments. Its bare copper wires are highly conductive to ensure reliable data transmission.

• Tinned copper braided shield protects against EMI
• PVC outer sheath protects inner wires against impact and wear
• Performs reliably in harsh environments, thanks to a wide operating temperature range of -40°C to +80°C in a fixed installation

• Medical equipment
• Data collection instruments
• Office networks

Yes, it's made of flame-retardant materials to ensure safety in the event of a fire.
