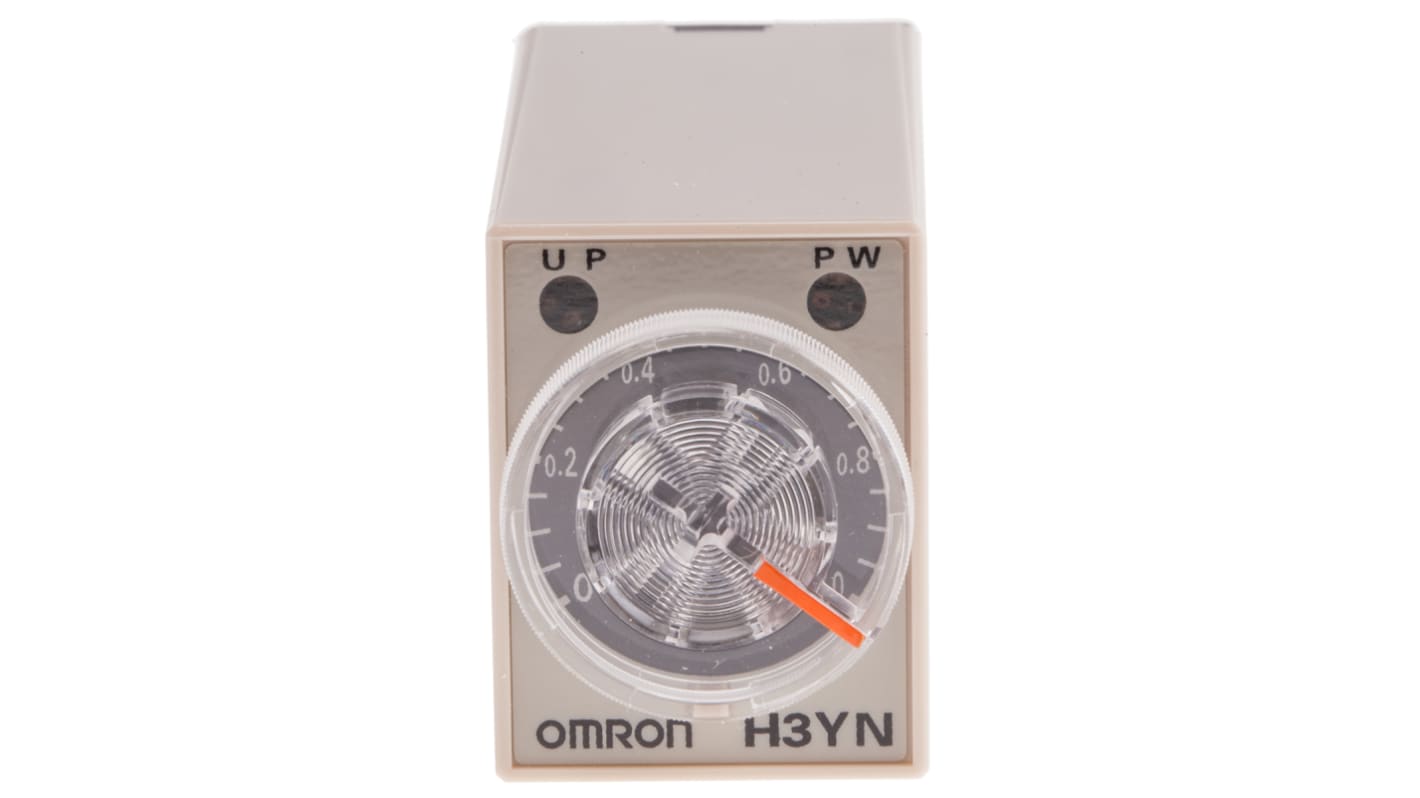

Omron H3YN Series DIN Rail, Panel Mount Timer Relay, 24V dc, 4-Contact, 0.1 min → 10h

RS Stock No.:: 236-1436
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3YN-41 DC24
ผู้ผลิต:: Omron

Omron H3YN Series DIN Rail, Panel Mount Timer Relay, 24V dc, 4-Contact, 0.1 min → 10h

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB3,173.91

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB3,396.08

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

61 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 - 24	THB3,173.91
25 - 124	THB3,110.42
125 +	THB2,559.85

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 236-1436
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3YN-41 DC24
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Supply Voltage	24V dc
	Mounting Type	DIN Rail, Panel Mount
	Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
	Time Range	0.1 min → 10h
	Number of Contacts	4
	Number of Timer Functions	Multi Function
	Time Increment	Hours, Minutes
	Maximum Current	3A
	Maximum Voltage	250V ac
	Terminal Type	Socket
	Switch Configuration	4PDT
	Power Supply	External
	Width	21.5mm
	Minimum Voltage	100V ac
	Minimum Current	3A
	Series	H3YN
	Length	28mm
	Depth	63mm
	Maximum Operating Temperature	+50°C
	Contact Material	Gold Plated
	Minimum Operating Temperature	-10°C
	Time Delay	0.1s

	เลือกทั้งหมด
	Brand Omron
	Supply Voltage 24V dc
	Mounting Type DIN Rail, Panel Mount
	Mode of Operation Flicker OFF Start, Flicker ON Start, Interval, ON Delay
	Time Range 0.1 min → 10h
	Number of Contacts 4
	Number of Timer Functions Multi Function
	Time Increment Hours, Minutes
	Maximum Current 3A
	Maximum Voltage 250V ac
	Terminal Type Socket
	Switch Configuration 4PDT
	Power Supply External
	Width 21.5mm
	Minimum Voltage 100V ac
	Minimum Current 3A
	Series H3YN
	Length 28mm
	Depth 63mm
	Maximum Operating Temperature +50°C
	Contact Material Gold Plated
	Minimum Operating Temperature -10°C
	Time Delay 0.1s

ล็อกอินเพื่อดูโมเดล CAD

Omron H3YN Series Timer Relay, 24V DC Supply Voltage, 4PDT Switch Configuration - H3YN-41 DC24

This timer relay is designed for versatile operation in automation applications. With a compact design measuring 21.5mm in width, 63mm in depth, and 28mm in length, it offers multiple operating modes. The supply voltage is 24V DC, making it ideal for various industrial applications.

Features & Benefits

• Flexible time range from 0.1min to 10h enhances usability
• Supports four operating modes for diverse applications
• User-selectable settings via DIP switches simplify operation
• Robust 4PDT switch configuration ensures reliable performance
• Designed for DIN rail or panel mounting for easy installation
• Conforms to safety standards for peace of mind

Applications

• Utilised in control circuits for ON delay switching
• Suitable for interval timing in industrial processes
• Compatible with external sockets for easy integration
• Effective for flicker timer in lighting systems

What time increments can be set with this device?

The device allows for precise time increments in hours and minutes, enabling users to set timings that best suit their operational requirements, from 0.1 min to 10 h.

How does the multi-function capability enhance its versatility?

The ability to switch between ON-delay, interval, flicker OFF start, and flicker ON start modes allows for targeted applications across varying automation needs.

What type of connections can be used with this timer relay?

It is compatible with socket connections, allowing for easy integration with existing control circuits and simplifying wiring processes. The required sockets can be ordered separately.

What is the significance of the insulation resistance rating?

An insulation resistance of 100 MΩ at 500V DC indicates a high level of safety and durability, protecting against electrical faults and ensuring reliable operation over time.
