- RS Stock No.:
- 236-1307
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3YN-2 AC24
- ผู้ผลิต / Manufacturer:
- Omron
13 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB3,340.95
(exc. VAT)
THB3,574.82
(inc. VAT)
Units | Per unit |
1 - 24 | THB3,340.95 |
25 - 49 | THB3,257.69 |
50 + | THB3,206.00 |
- RS Stock No.:
- 236-1307
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3YN-2 AC24
- ผู้ผลิต / Manufacturer:
- Omron
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
H3YN - DPDT
Functions - 143,453,611,612
Multiple functions, multiple time ranges
Electrical life: 500000 operations at rated load
Multiple functions, multiple time ranges
Electrical life: 500000 operations at rated load
Standards
VDE0435/P2021, EN 50081-2, EN 50082-2
Approvals
UL, CSA

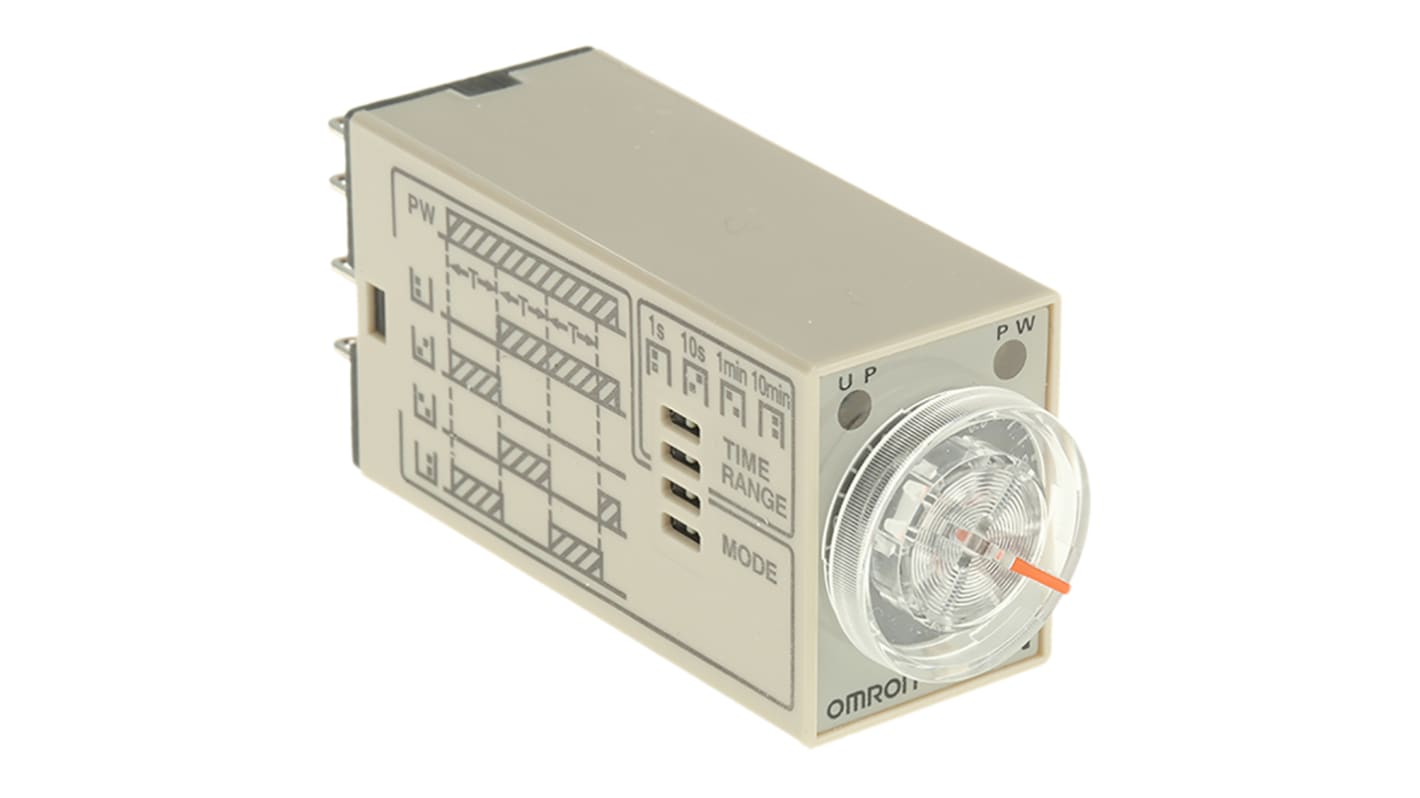

Omron H3YN Series Timer Relay, +50 °C Maximum Operating Temperature, Panel Mount - H3YN-2 AC24
This timer relay by Omron is designed with a depth of 63mm and a length of 28mm, making it a versatile and efficient solution for various applications. It offers reliable performance and precise timing capabilities.
Features & Benefits
• Maximum current of 5A ensures compatibility with a wide range of devices
• Maximum operating temperature of +50 °C allows for reliable operation in different environments
• Switch configuration of DPDT for versatile control options
• External power supply for added flexibility in setup
• Time delay range from 0.1 s to 10 min for precise timing requirements
• Maximum operating temperature of +50 °C allows for reliable operation in different environments
• Switch configuration of DPDT for versatile control options
• External power supply for added flexibility in setup
• Time delay range from 0.1 s to 10 min for precise timing requirements
Applications
• Ideal for automation systems requiring accurate timing
• Suitable for electrical applications where precise switching is needed
• Suitable for electrical applications where precise switching is needed
Can it handle a maximum current of 5A?
Yes, the Omron timer relay is capable of handling a maximum current of 5A.
Will it operate in environments with a temperature of -10 °C?
Yes, the timer relay can operate in environments with temperatures as low as -10 °C.
Is the time delay range adjustable?
Yes, the time delay range of the timer relay can be adjusted from 0.1 s to 10 min.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Supply Voltage | 24V ac |
Mounting Type | DIN Rail, Panel Mount |
Mode of Operation | Flicker OFF Start, Flicker ON Start, Interval, ON Delay |
Time Range | 0.1 s → 10min |
Number of Contacts | 2 |
Number of Timer Functions | Multi Function |
Time Increment | Minutes, Seconds |
Maximum Current | 5A |
Maximum Voltage | 250V ac |
Terminal Type | Socket |
Switch Configuration | DPDT |
Minimum Voltage | 24V ac |
Power Supply | External |
Width | 21.5mm |
Length | 28mm |
Series | H3YN |
Depth | 63mm |
Maximum Operating Temperature | +50°C |
Time Delay | 0.1s |
Minimum Operating Temperature | -10°C |
