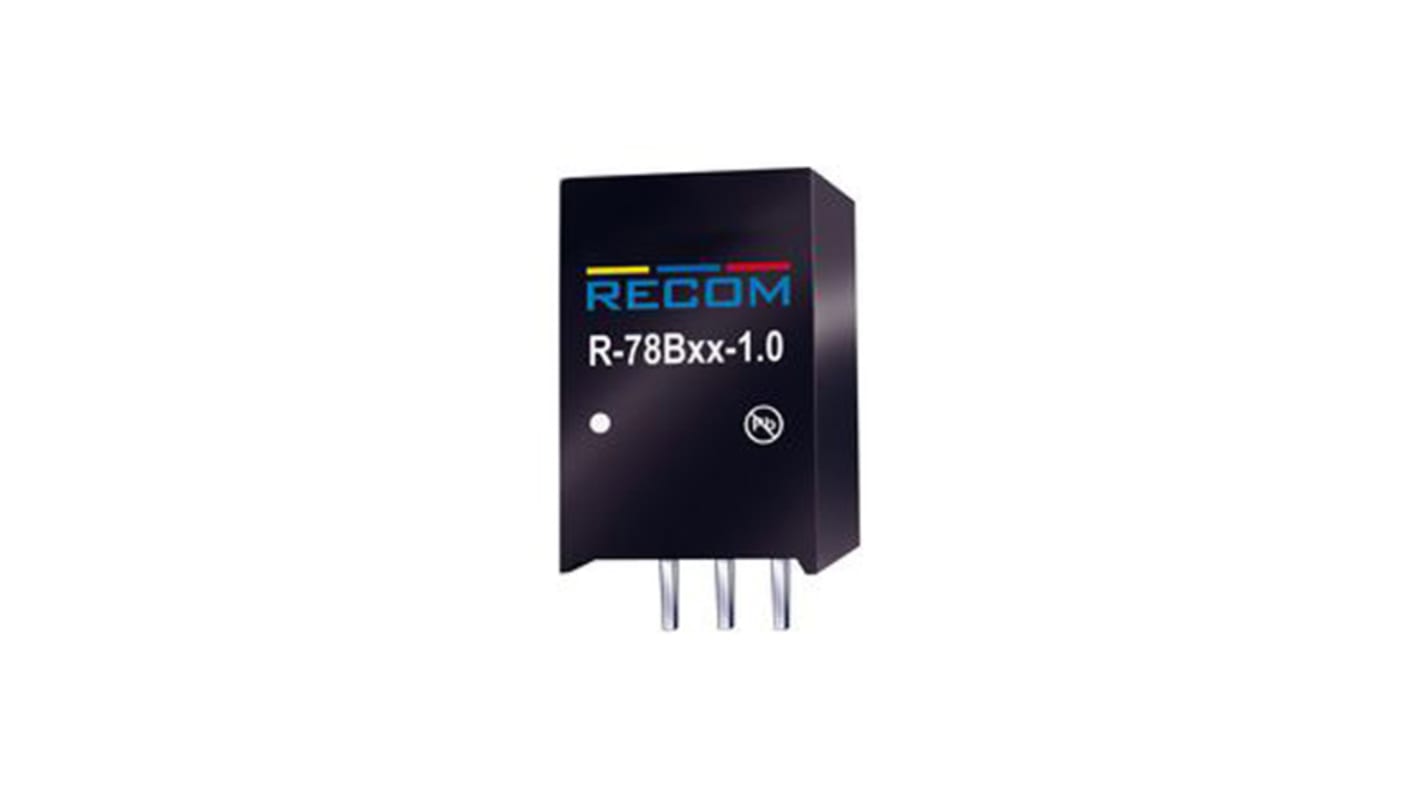

Recom Switching Regulator, Through Hole, 12V dc Output Voltage, 15 → 32V dc Input Voltage, 2A Output Current, 1
- RS Stock No.:
- 139-2822
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R-78B12-2.0
- ผู้ผลิต:
- Recom
หมดสต็อกชั่วคราว
- RS Stock No.:
- 139-2822
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R-78B12-2.0
- ผู้ผลิต:
- Recom
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 12V dc | |
| Output Current | 2A | |
| Input Voltage | 15 → 32V dc | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | SIP 3 | |
| Power Rating | 24W | |
| Efficiency | 96% | |
| Ripple And Noise | 75mV Pk-Pk | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +70°C | |
| Series | R-78B-2.0 | |
| Line Regulation | ±0.5% | |
| Weight | 4g | |
| Depth | 8.5mm | |
| Power Signal Conversion Type | DC-DC | |
| Standards Met | CB Report, EN 55022, IEC/EN 62368-1 | |
| Switching Frequency Range | 460kHz | |
| Maximum Input Current | 50mA | |
| Width | 8.5mm | |
| MTBF | 6349000h | |
| Protection Features | Short Circuit Protection | |
| Load Regulation | ±1% | |
| Length | 11.5mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Recom | ||
Output Voltage 12V dc | ||
Output Current 2A | ||
Input Voltage 15 → 32V dc | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Package SIP 3 | ||
Power Rating 24W | ||
Efficiency 96% | ||
Ripple And Noise 75mV Pk-Pk | ||
Minimum Temperature -40°C | ||
Maximum Temperature +70°C | ||
Series R-78B-2.0 | ||
Line Regulation ±0.5% | ||
Weight 4g | ||
Depth 8.5mm | ||
Power Signal Conversion Type DC-DC | ||
Standards Met CB Report, EN 55022, IEC/EN 62368-1 | ||
Switching Frequency Range 460kHz | ||
Maximum Input Current 50mA | ||
Width 8.5mm | ||
MTBF 6349000h | ||
Protection Features Short Circuit Protection | ||
Load Regulation ±1% | ||
Length 11.5mm | ||
- COO (Country of Origin):
- TW
RECOM Switching Regulator, 12V DC Output Voltage, 15 to 32V DC Input Voltage - R-78B-2.0 Series - R-78B12-2.0
Use this switching regulator from RECOM to covert your supply voltage to the level needed by your equipment. It provides a continuous 12V DC output, giving you a reliable power supply that helps avoid unplanned appliance downtime. The product's wide input voltage range between 15 and 32V DC means you can use it with common electrical sources. As it efficiently converts up to 96% of its input energy, very little heat is produced as a by-product. This means you can be confident it works safely without the need for an external heatsink.
Features & Benefits
• Quiescent current of 2mA means minimal energy waste while not in use
• Peak ripple voltage of 75mV means low disruption from electrical noise
• Body measurements of 11.5 (W) x 17.5 (H) x 8.5mm (D) mean it fits easily onto busy circuit boards
• Short-circuit protection resets the device after faults to help minimise downtime
Applications
• Games consoles
• Radio receivers
• Security systems
• Logistics industry
How do I mount this switching regulator?
This switching regulator is suitable for the through-hole mounting method, which achieves a secure and vibration-proof attachment.
