Recom Switching Regulator, Through Hole, 5 V dc Output Voltage 32V dc, 2 A Output Current, 1 Outputs

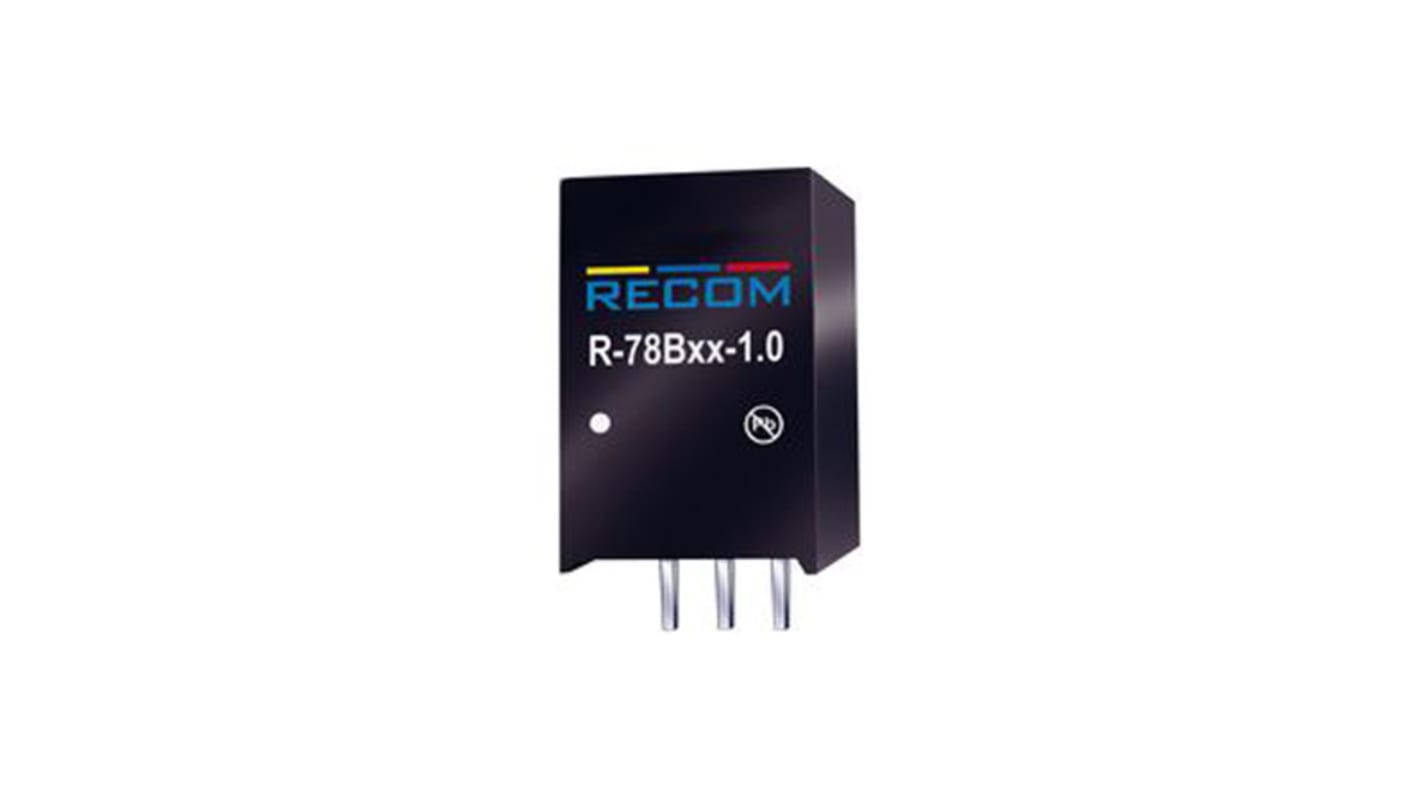

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า

ดู Switching Regulators ทั้งหมด
ไม่พร้อมจำหน่ายในตอนนี้
ขออภัย เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด
RS Stock No.:
139-2821
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
R-78B5.0-2.0
ผู้ผลิต:
Recom
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Recom

Output Voltage 1

5 V dc

Product Type

Switching Regulator

Output Current

2A

Mount Type

Through Hole

Number of Outputs

1

Power

10W

Efficiency

0.94%

Ripple and Noise

75mV Pk-Pk

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Number of Pins

3

Series

R-78B-2.0

Line Regulation

±0.5 %

Package Type

SIP-3

Width

8.5 mm

Depth

17.5mm

Length

11.5mm

Weight

4g

Standards/Approvals

CB Report, EN 55022, IEC/EN 62368-1

Maximum Input Voltage

32V dc

Minimum Input Voltage

6.5V

MTBF

6349000h

Load Regulation

±1 %

COO (Country of Origin):
TW

RECOM Switching Regulator, 5V DC Output Voltage, 6.5 to 32V DC Input Voltage - R-78B-2.0 Series - R-78B5.0-2.0


Rest assured that your power supply is compatible with your equipment with the help of this switching regulator from RECOM. With its wide input voltage range between 6.5 and 32V DC, it's a practical way of adapting many common power supplies to work safely with your low-voltage devices. As the unit achieves efficiency rates of up to 94%, it minimises energy lost as heat and doesn't need a heatsink to work safely. The device's narrow dimensions of 11.5 (width) x 17.5 (height) x 8.5mm (depth) mean it has a small footprint and fits easily into busy PCB-mounted systems.

Features & Benefits


• Built-in short-circuit protection automatically restarts regulator after tripping for minimal downtime

• Simple through-hole mounting for fast installation on PCBs

• Line regulation of ±0.5% so you GET consistent output voltages

• Wide operating temperature range from -40°C to +70°C, so it withstands harsh environments

Applications


• Remote controls

• Lighting systems

• Vehicle dashboards

• Consumer electronics

Can I use this switching regulator for my radio application?


Yes, this converter is suitable for radio applications as its ripple and noise rating of 75mV means it doesn't produce much electrical noise. This helps minimise disruption to radio communications.
