SMC Guide Cylinder - 16mm Bore, MGP Series, 30 mm Double Acting Acting
- RS Stock No.:
- 235-3270
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MGPL16-30Z
- ผู้ผลิต:
- SMC
ยอดรวมย่อย (1 ชิ้น)*
THB10,498.10
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB11,232.97
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 6 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB10,498.10 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 235-3270
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MGPL16-30Z
- ผู้ผลิต:
- SMC
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | SMC | |
| Product Type | Guide Cylinder | |
| Bore Diameter | 16mm | |
| Series | MGP | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Aluminium Alloy | |
| Cushioning Type | Rubber Bumper | |
| Minimum Operating Temperature | -10°C | |
| Maximum Piston Speed | 500mm/s | |
| Rod Type | Double Acting | |
| Piston Rod Thread Size | M5 x 0.8 | |
| Guide Type | Slide Bearing | |
| Maximum Operating Temperature | 60°C | |
| Weight | 400g | |
| Standards/Approvals | No | |
| Stroke Length | 30mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand SMC | ||
Product Type Guide Cylinder | ||
Bore Diameter 16mm | ||
Series MGP | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Aluminium Alloy | ||
Cushioning Type Rubber Bumper | ||
Minimum Operating Temperature -10°C | ||
Maximum Piston Speed 500mm/s | ||
Rod Type Double Acting | ||
Piston Rod Thread Size M5 x 0.8 | ||
Guide Type Slide Bearing | ||
Maximum Operating Temperature 60°C | ||
Weight 400g | ||
Standards/Approvals No | ||
Stroke Length 30mm | ||
- COO (Country of Origin):
- CN

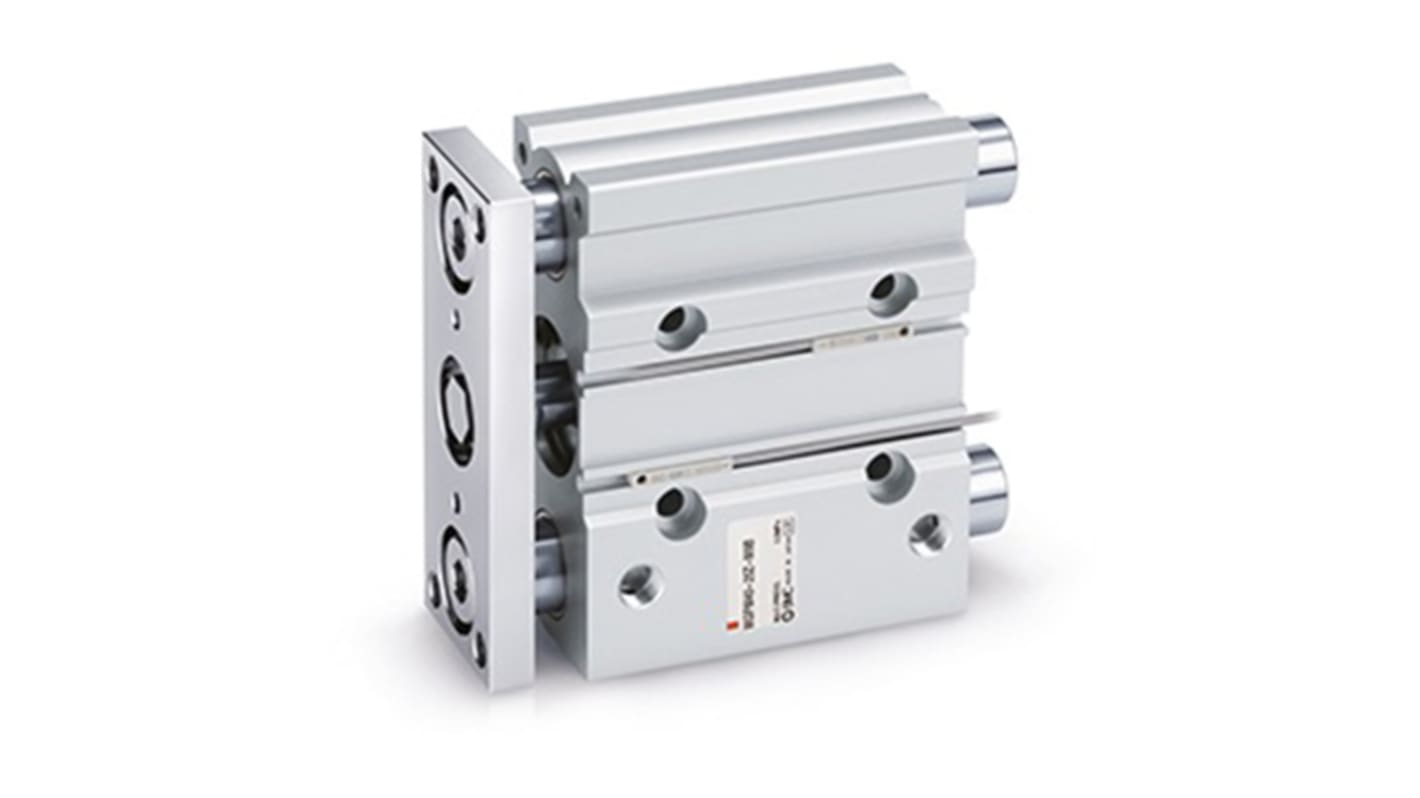

SMC MGP Series Compact Guide Cylinder, 16mm Bore size, 30mm Stroke Length - MGPL16-30Z
This Compact guide cylinder provides guided linear motion for automation tasks in confined assemblies, combining a guided sliding mechanism with pneumatic actuation to control lateral loads and maintain alignment in short-stroke operations. It is intended for installation where a small, guided actuator is required to perform controlled double-acting strokes within equipment for electronics, electrical and mechanical processes.
Features and Benefits:
• 16mm bore for Compact force delivery and confined spaces
• 30mm stroke for short-travel positioning tasks
• Double-acting operation for controlled extend and retract motion
• Aluminium alloy body for reduced mass and ease of mounting
• Ball bushing guide for improved lateral rigidity and accuracy
• Rubber bumpers on both ends for quieter, cushioned impacts
• 500 mm/s maximum piston speed for Rapid cycle capability
• M5x0.8 piston rod thread for fine attachment options
• 1 MPa maximum operating pressure for consistent actuation force
• −10 °C to 60 °C operating range for standard industrial environments
• 30mm stroke for short-travel positioning tasks
• Double-acting operation for controlled extend and retract motion
• Aluminium alloy body for reduced mass and ease of mounting
• Ball bushing guide for improved lateral rigidity and accuracy
• Rubber bumpers on both ends for quieter, cushioned impacts
• 500 mm/s maximum piston speed for Rapid cycle capability
• M5x0.8 piston rod thread for fine attachment options
• 1 MPa maximum operating pressure for consistent actuation force
• −10 °C to 60 °C operating range for standard industrial environments
Applications
• Suitable for pick-and-place heads in Compact assembly machines
• Ideal for alignment tasks in PCB handling equipment
• Used with small fixtures for panel positioning in electrical enclosures
• Can be used for micro-transfer systems in electronics assembly
• Suitable for actuation of levers and stops in mechanical jigs
• Ideal for alignment tasks in PCB handling equipment
• Used with small fixtures for panel positioning in electrical enclosures
• Can be used for micro-transfer systems in electronics assembly
• Suitable for actuation of levers and stops in mechanical jigs
What bearing arrangement maintains accuracy under side loads?
A ball bushing guide delivers precise lateral support, reducing shaft deflection and preserving repeatable positioning under transverse forces.
How should I select supply pressure for smooth cushioning?
Operate below the 1 MPa limit and tune supply pressure to match cycle speed so the rubber bumpers engage progressively without hard impacts at the required piston velocity.
What attachment options exist for the rod end?
The piston rod is threaded M5x0.8, enabling Compact fittings, clevises or custom end‑effectors sized for small pneumatic systems.
How does temperature affect operation?
The permitted ambient range of −10 °C to 60 °C indicates Seals and materials are suitable for typical indoor industrial settings but may require review for extreme thermal conditions.
