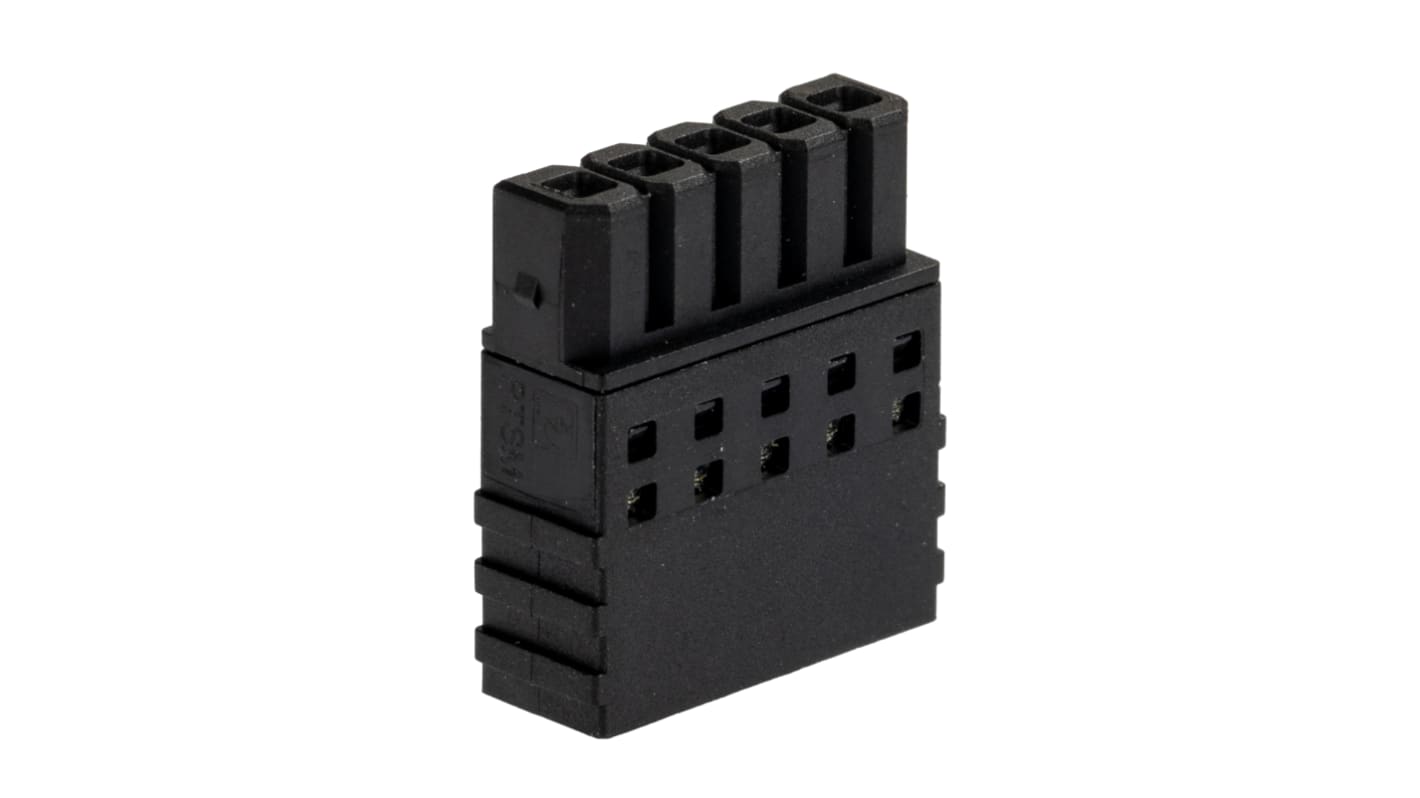

Phoenix Contact, 2.5mm Pitch, 5 Way, , Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination, 1778861

RS Stock No.:: 712-4487
Distrelec หมายเลขบทความ:: 304-09-792
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1778861
ผู้ผลิต / Manufacturer:: Phoenix Contact

Phoenix Contact, 2.5mm Pitch, 5 Way, , Pluggable Terminal Block, Plug, Cable Mount, Spring Cage Termination, 1778861

มีส่วนลดเมื่อซื้อจำนวนมาก

ราคา / Price Each: (In a Pack of 5)

THB133.20

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB142.52

(รวมภาษีมูลค่าเพิ่ม)

415 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB3,500.00 (ไม่รวมภาษี)

Units	ต่อหน่วย	ต่อแพ็ค**
5 - 245	THB133.20	THB666.00
250 - 995	THB129.198	THB645.99
1000 +	THB125.318	THB626.59

**ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 712-4487
Distrelec หมายเลขบทความ:: 304-09-792
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 1778861
ผู้ผลิต / Manufacturer:: Phoenix Contact

ล็อกอินเพื่อดูโมเดล CAD

Plug connectors - PTSM

The PTSM family uses push in leg spring technology and allows connection of solid and stranded conductors.

For header see stock number 712-4497 typical

Phoenix Contact PTSM 0.5/ 5-P-2.5 Series Pluggable Terminal Block, 2.5mm Pitch, Spring Cage Termination Method - 1778861

This pluggable terminal block offers reliable electrical connections for various applications. With a nominal current rating of 6A and a voltage rating of 160V, it is essential in automation and electrical systems where efficient wiring is important. The terminal block allows for straightforward installation and provides durable performance in challenging environments.

Features & Benefits

• Utilises spring cage termination for easy assembly
• Compact 2.5mm pitch improves space efficiency
• Straight body orientation facilitates connectivity in confined spaces
• Designed for cable mounting, providing flexible installation options
• Supports up to five connections for versatile configurations
• Consistent performance ensures stability and safety over time

Applications

• Compatible with printed circuit boards for modular designs
• Suitable for industrial automation and control systems
• Ideal for electrical panels and equipment wiring
• Commonly used in mechanical equipment connections
• Employed in various electronic installations requiring secure connections

What type of connection method does it support?

It features a push-in spring connection method for quick and secure installations.

Can it be used in environments with varying temperatures?

Yes, it operates efficiently within a temperature range of -40 to 100°C.

What gauge wire can be utilised with this connector?

It accommodates wire sizes from 0.14 to 0.5mm² for both rigid and flexible conductors.

Is special equipment required for installation?

No additional tools are necessary, allowing for straightforward, tool-free assembly.

How does the terminal block ensure stable connections over time?

It is designed with defined contact force, maintaining contact stability throughout its life cycle.

2.5 mm Push-In leg Spring - Phoenix Contact

คุณสมบัติ	Value
Pluggable Terminal Block Type	Plug
Number of Contacts	5
Pitch	2.5mm
Series	PTSM 0.5/ 5-P-2.5
Number of Rows	1
Body Orientation	Straight
Mounting Type	Cable Mount
Termination Method	Spring Cage
Current Rating	6A
Voltage Rating	160 V
Colour	Black
Wire Size	24 → 20 AWG
Material	Polyamide
Contact Material	Copper Alloy
Contact Plating	Tin
