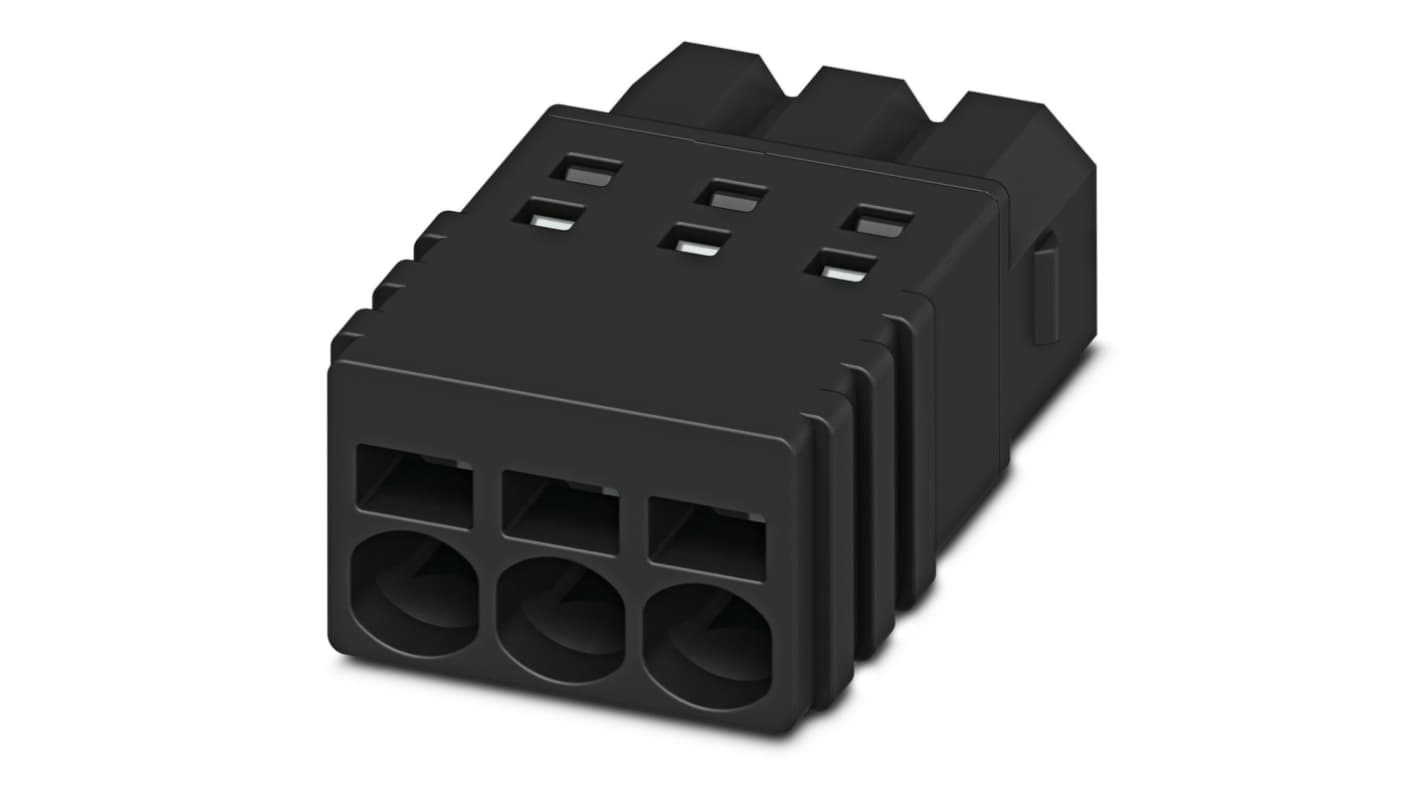

Phoenix Contact PTSM 0.5/3-P-2.5 Series Pluggable Terminal Block, 3-Contact, 2.5 mm Pitch, 1 Row, 1778845

ดูหมวดหมู่นี้
มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*

THB268.62

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB287.425

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • เพิ่มอีก 590 ชิ้นจะส่งได้หลังจากวันที่ 23 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
ต่อแพ็ค*
5 - 245THB53.724THB268.62
250 - 995THB52.65THB263.25
1000 +THB51.598THB257.99

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
712-4475
Distrelec หมายเลขบทความ:
304-43-827
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
1778845
ผู้ผลิต:
Phoenix Contact
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Phoenix Contact

Number of Contacts

3

Product Type

Pluggable Terminal Block

Pitch

2.5mm

Current

6A

Number of Rows

1

Minimum Wire Size mm²

0.2mm²

Housing Material

Polyamide

Maximum Wire Size mm²

0.5mm²

Connector Gender

Female

Minimum Wire Size AWG

24 AWG

Maximum Wire Size AWG

20 AWG

Orientation

Straight

Colour

Black

Wire Connection Method

Push-in Spring

Voltage

160 V

Standards/Approvals

No

Series

PTSM 0.5/3-P-2.5

Width

5 mm

Depth

15mm

Length

8.6mm

Phoenix Contact PTSM 0.5/ 3-P-2.5 Series Pluggable Terminal Block, 3 Contacts, 2.5mm Pitch - 1778845


This pluggable terminal block is designed for flexible connection solutions in various applications within the automation and electrical fields. With a compact 2.5mm pitch and straight body orientation, this innovative connector enables efficient wire termination via a reliable spring cage method. Its black finish and robust PA material ensure durability and ease of integration into complex wiring systems.

Features & Benefits


• Plug type connector allows for seamless assembly and disassembly

• 3 contacts accommodate versatile wiring configurations

• Spring cage termination ensures secure and straightforward wiring

• Current rating of 6A optimises performance in demanding applications

• Voltage rating of 160V supports a wide array of electrical systems

• Suitable for wire sizes ranging from 24 to 20 AWG, providing flexibility

Applications


• Used with various automation systems for efficient wiring

• Ideal for electrical installations where space is a constraint

• Suitable for connecting sensors and actuators in control panels

• Commonly employed in machinery for streamlined electrical connections

What wire sizes can be connected using this terminal block?


It accommodates wire sizes ranging from 24 to 20 AWG, allowing flexibility for different applications and ensuring compatibility with varying wiring standards.

How does the spring cage termination method enhance performance?


This method provides reliable and secure connections, reducing the risk of loose wires that can lead to performance issues or failures in critical applications.

Can it be used in outdoor environments?


While the terminal block is designed for durability, it is important to consider environmental factors such as exposure to moisture and extreme temperatures, as additional protective measures may be required for outdoor use.

What materials are used in the construction of this connector?


The terminal block features a body made from robust PA material and contacts constructed from copper alloy, providing both strength and excellent electrical conductivity.

Is it suitable for PCB applications?


This pluggable terminal block is primarily designed for cable mount applications. For PCB-specific needs, alternative connectors may be more appropriate.

Plug connectors - PTSM


The PTSM family uses push in leg spring technology and allows connection of solid and stranded conductors.

For header see stock number 712-4497 typical

2.5 mm Push-In leg Spring - Phoenix Contact
