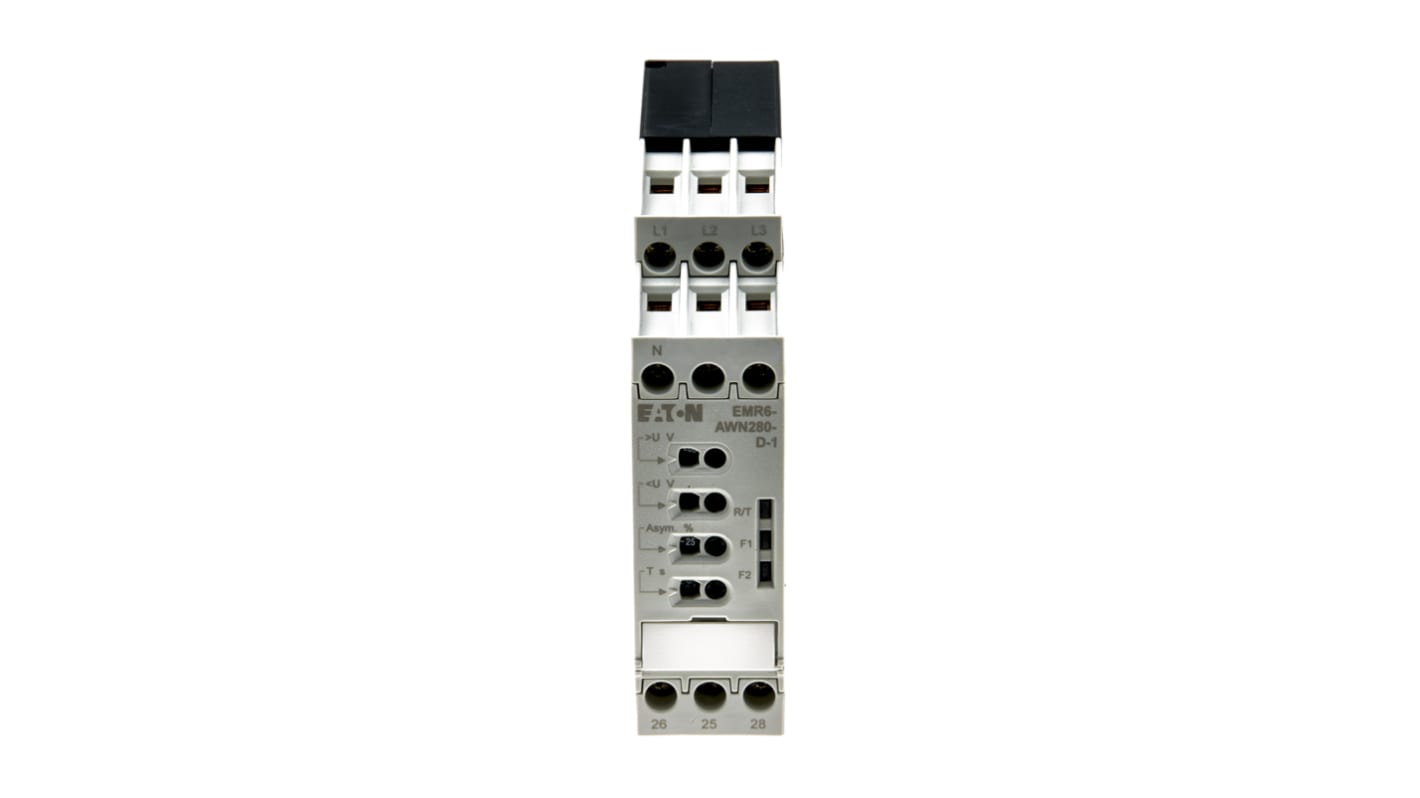

Eaton Monitoring Relay, 180/280 V ac Monitor Range, CO, DIN Rail, 180V ac, 280 V ac

RS Stock No.:: 179-3536
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 184770 EMR6-AWN280-D-1
ผู้ผลิต:: Eaton

Eaton Monitoring Relay, 180/280 V ac Monitor Range, CO, DIN Rail, 180V ac, 280 V ac

ยอดรวมย่อย (1 ชิ้น)*

THB11,954.25

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB12,791.05

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น	ต่อหน่วย
1 +	THB11,954.25

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 179-3536
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 184770 EMR6-AWN280-D-1
ผู้ผลิต:: Eaton

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Eaton
	Product Type	Monitoring Relay
	Contact Configuration	CO
	Mount Type	DIN Rail
	Power Consumption	3VA
	Terminal Type	Screw
	IP Rating	IP50, IP20
	Supply AC Voltage	180, 280V ac
	Contact Current	4A
	Monitoring Voltage Range	180/280 V ac
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	60°C
	Standards/Approvals	CCC, IEC 60068-2-30, CSA, RoHS, GL, UL, IEC
	Series	EMR6
	Height	78mm
	Length	109.5mm
	Width	22.5mm

	เลือกทั้งหมด
	Brand Eaton
	Product Type Monitoring Relay
	Contact Configuration CO
	Mount Type DIN Rail
	Power Consumption 3VA
	Terminal Type Screw
	IP Rating IP50, IP20
	Supply AC Voltage 180, 280V ac
	Contact Current 4A
	Monitoring Voltage Range 180/280 V ac
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 60°C
	Standards/Approvals CCC, IEC 60068-2-30, CSA, RoHS, GL, UL, IEC
	Series EMR6
	Height 78mm
	Length 109.5mm
	Width 22.5mm

Datasheet

COO (Country of Origin):: DE

Eaton Phase and Voltage Monitoring Relay

The Eaton phase and voltage monitoring relay is an ideal protection device for a wide range of switchgear applications. Monitoring a 3 phase power supply is important to protect the electrical devices connected to the supply. Power fluctuations can seriously damage the devices. This relay is capable of monitoring functions related to the power supply like phase sequence, phase imbalance, phase failure, undervoltage and overvoltage. This relay is universally suitable for a large number of applications. It reduces inventory costs and saves time during the equipment selection process. Like any other Eaton relay, this monitoring relay guarantees minimum shutdown time, high efficiency and sustainable long life.

Features and Benefits

• Ambient temperature ranges between -25°C and 60°C

• Burst and surge protection

• Contact configuration: CO

• High shock resistance

• Immune to radiation

• LED status indicators

• Mechanical lifespan of 30M cycles

• Quick response time

• Weather protection

Applications

• Electric engineering

• Factory automation

• Light industrial environments

• Low-voltage switch technology

• Monitoring equipment

• Monitoring machine temperatures

• Process control engineering

• Residential facilities

Certifications

• CCC approved

• CSA certified

• GL certified

• IEC certified

• IP20 rating protection for terminals

• IP50 rating protection for enclosure

• UL approved

Note

Eaton formerly known as Moeller
