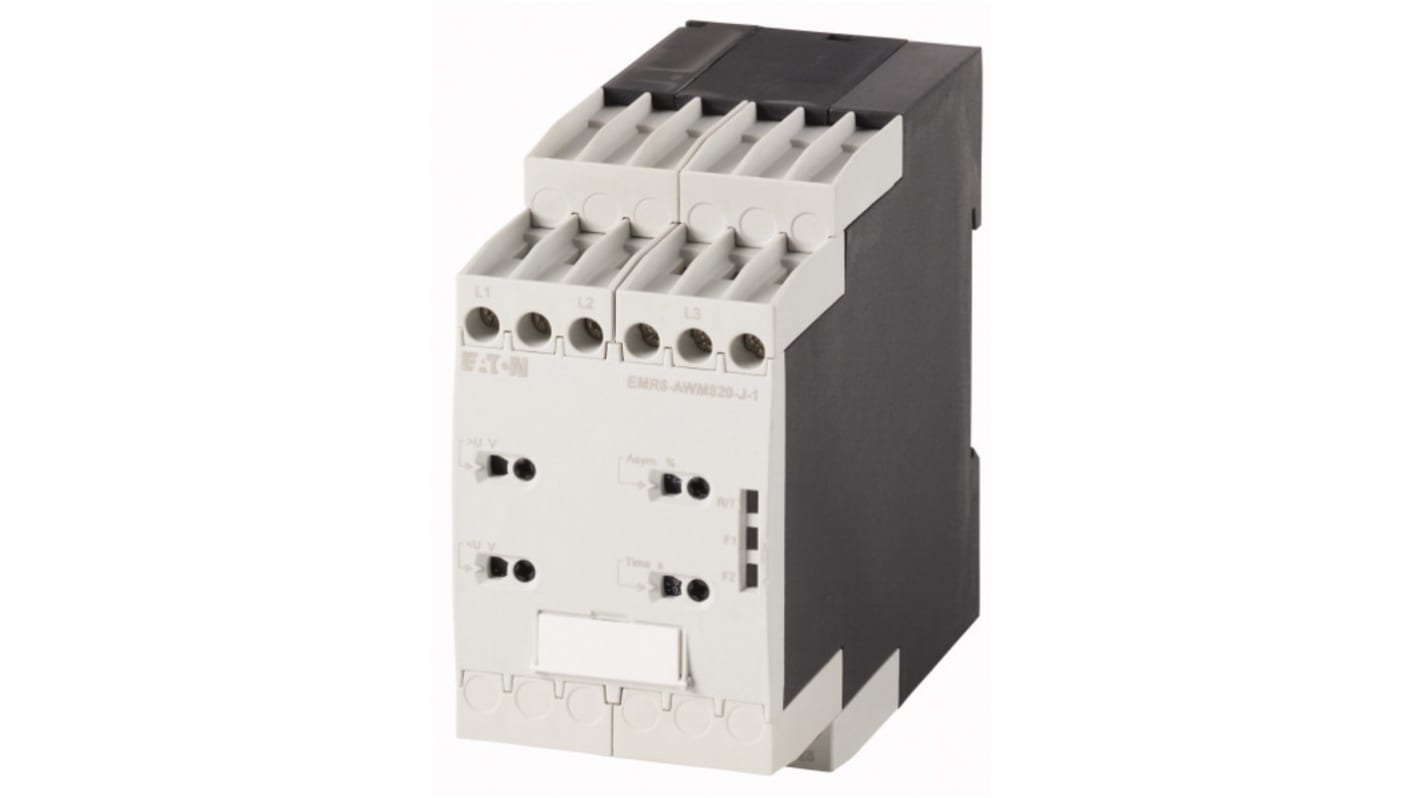

Eaton Phase, Voltage Monitoring Relay, 530 → 820V ac, DIN Rail
- RS Stock No.:
- 179-3533
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 184767 EMR6-AWM820-J-1
- ผู้ผลิต:
- Eaton
ยอดรวมย่อย (1 ชิ้น)*
THB13,676.33
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB14,633.67
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- จะส่งได้หลังจากวันที่ 23 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB13,676.33 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 179-3533
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 184767 EMR6-AWM820-J-1
- ผู้ผลิต:
- Eaton
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Eaton | |
| Monitoring Application | Phase, Voltage | |
| Voltage Sensing Range | 530 → 820V ac | |
| Voltage Sensitivity | Overvoltage, Undervoltage | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Phase Failure, Phase Imbalance, Phase Sequence | |
| Time Delay | 0.1 → 30s | |
| Frequency Sensing Range | 50 → 60Hz | |
| Maximum Operating Temperature | +60°C | |
| Width | 45mm | |
| Height | 78mm | |
| Minimum Operating Temperature | -25°C | |
| Minimum Voltage Sensed | 530V ac | |
| Maximum Frequency Sensed | 60Hz | |
| Length | 109.5mm | |
| Dimensions | 109.5 x 45 x 78mm | |
| Operating Temperature Range | +60°C | |
| Minimum Frequency Sensed | 50Hz | |
| Terminal Type | Screw | |
| Maximum Voltage Sensed | 820V ac | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Eaton | ||
Monitoring Application Phase, Voltage | ||
Voltage Sensing Range 530 → 820V ac | ||
Voltage Sensitivity Overvoltage, Undervoltage | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Phase Failure, Phase Imbalance, Phase Sequence | ||
Time Delay 0.1 → 30s | ||
Frequency Sensing Range 50 → 60Hz | ||
Maximum Operating Temperature +60°C | ||
Width 45mm | ||
Height 78mm | ||
Minimum Operating Temperature -25°C | ||
Minimum Voltage Sensed 530V ac | ||
Maximum Frequency Sensed 60Hz | ||
Length 109.5mm | ||
Dimensions 109.5 x 45 x 78mm | ||
Operating Temperature Range +60°C | ||
Minimum Frequency Sensed 50Hz | ||
Terminal Type Screw | ||
Maximum Voltage Sensed 820V ac | ||
- COO (Country of Origin):
- DE
The EMR6 measuring and monitoring relays are designed for a wide range of switchgear applications. Thanks to their ability to monitor overloads, power fluctuations, phase sequences, machine temperatures and fill levels, the EMR6 relays protect machines and plants and help to prevent unscheduled downtime in production processes. The device has been approved for global use and can therefore be used to monitor plants reliably and seamlessly, anywhere in the world
Suitable for universal use, thanks to multi-voltage power supplies
Reduced machine downtime and early detection of possible failures during operation
The universal, multi-functional devices reduce inventory costs and save time during the equipment selection process
An expanded product range with additional functionalities
Relays for monitoring machine temperatures
Reduced machine downtime and early detection of possible failures during operation
The universal, multi-functional devices reduce inventory costs and save time during the equipment selection process
An expanded product range with additional functionalities
Relays for monitoring machine temperatures
Note
Eaton formerly known as Moeller
