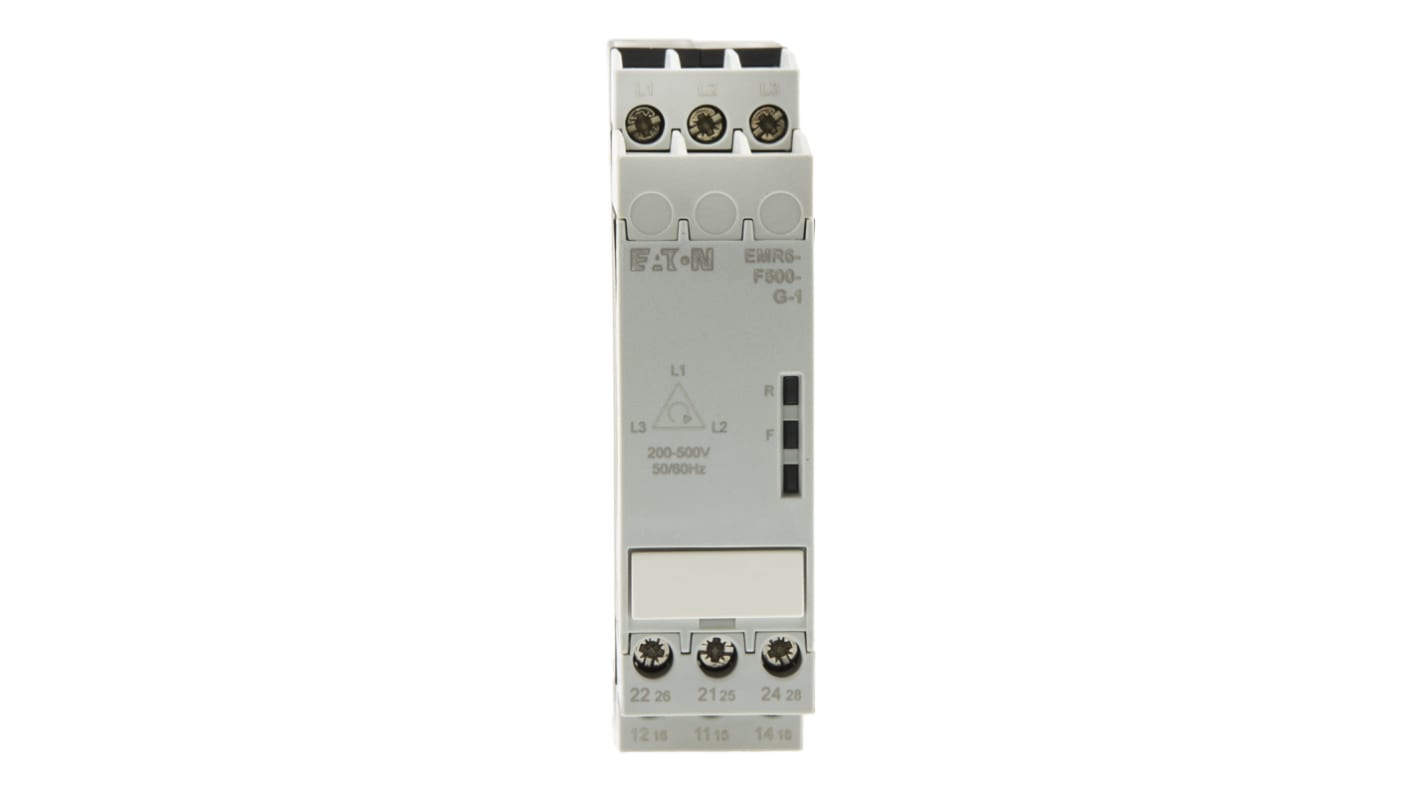

Eaton Phase, Voltage Monitoring Relay, 200 → 500V ac, DIN Rail
- RS Stock No.:
- 179-3516
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 184789 EMR6-F500-G-1
- ผู้ผลิต:
- Eaton
ยอดรวมย่อย (1 ชิ้น)*
THB4,392.03
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,699.47
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 6 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB4,392.03 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 179-3516
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 184789 EMR6-F500-G-1
- ผู้ผลิต:
- Eaton
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Eaton | |
| Monitoring Application | Phase, Voltage | |
| Voltage Sensing Range | 200 → 500V ac | |
| Voltage Sensitivity | Overvoltage | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Phase Failure, Phase Sequence | |
| Frequency Sensing Range | 50 → 60Hz | |
| Dimensions | 109.5 x 22.5 x 78mm | |
| Minimum Voltage Sensed | 200V ac | |
| Length | 109.5mm | |
| Maximum Frequency Sensed | 60Hz | |
| Width | 22.5mm | |
| Maximum Operating Temperature | +60°C | |
| Terminal Type | Screw | |
| Standards Met | CE, CSA, UL | |
| Maximum Voltage Sensed | 500V ac | |
| Operating Temperature Range | -20 → +60°C | |
| Minimum Frequency Sensed | 50Hz | |
| Height | 78mm | |
| Minimum Operating Temperature | -20°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Eaton | ||
Monitoring Application Phase, Voltage | ||
Voltage Sensing Range 200 → 500V ac | ||
Voltage Sensitivity Overvoltage | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Phase Failure, Phase Sequence | ||
Frequency Sensing Range 50 → 60Hz | ||
Dimensions 109.5 x 22.5 x 78mm | ||
Minimum Voltage Sensed 200V ac | ||
Length 109.5mm | ||
Maximum Frequency Sensed 60Hz | ||
Width 22.5mm | ||
Maximum Operating Temperature +60°C | ||
Terminal Type Screw | ||
Standards Met CE, CSA, UL | ||
Maximum Voltage Sensed 500V ac | ||
Operating Temperature Range -20 → +60°C | ||
Minimum Frequency Sensed 50Hz | ||
Height 78mm | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Eaton 3-Phase Voltage Monitoring Relay, 200 to 500V AC Voltage Sensed, DIN Rail Mount - EMR6 Series - 184789 EMR6-F500-G-1
Keep track of the operating voltage of your equipment using this voltage monitoring relay from Eaton. It's designed to trigger a safety response if it detects an abnormal voltage value, protecting your system from downtime. For versatility, you can also use it to monitor the power supply of 3-phase motors and detect if phase failure or phase sequence occurs. This unit has a broad voltage sensing range between 200 and 500V AC for use in both low-voltage and high-voltage systems.
• Mechanical durability rating of 30,000,000 cycles for long-term performance
• Wide operating temperature range between -20°C and +60°C for safe use in harsh environments
• DIN rail mounting for quick installation
• LED indicators for simple status configuration
• Shock-resistant to prevent false tripping
• Wide operating temperature range between -20°C and +60°C for safe use in harsh environments
• DIN rail mounting for quick installation
• LED indicators for simple status configuration
• Shock-resistant to prevent false tripping
What's do 'phase failure' and 'phase sequence' mean?
Phase failure is when complete loss of one or all phases in a 3-phase system occurs, causing machine shutdown. Phase sequence refers to the successive activation of each phase of the motor based on a defined parameter.
Note
Eaton formerly known as Moeller
