RS PRO Roller Lever Limit Switch, 1 NO/1 NC, IP65, Thermoplastic Housing, 400V ac, 10A

RS Stock No.:: 136-228
ผู้ผลิต:: RS PRO

RS PRO Roller Lever Limit Switch, 1 NO/1 NC, IP65, Thermoplastic Housing, 400V ac, 10A

ยอดรวมย่อย (1 ชิ้น)*

THB1,001.12

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB1,071.20

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

20 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB1,001.12

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 136-228
ผู้ผลิต:: RS PRO

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	RS PRO
	Actuator Type	Roller Lever
	Product Type	Limit Switch
	IP Rating	IP65
	Contact Configuration	1 NO/1 NC
	Housing Material	Thermoplastic
	Contact Type	Non-Over Lapping
	Switching Current	10A
	Terminal Type	M3.5 Screw Clamp Terminal
	Switching AC Voltage	400V ac
	Switching DC Voltage	250V dc
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	IEC 60947-5:1/EN 60947-5-1
	Length	106mm
	Width	30.3mm
	Depth	45mm
	Hazardous Area Certification	NO
	Conduit Entry	M20x1.5 Cable Gland
	Mechanical Life	10000000Cycles
	Operating Force	13N

	เลือกทั้งหมด
	Brand RS PRO
	Actuator Type Roller Lever
	Product Type Limit Switch
	IP Rating IP65
	Contact Configuration 1 NO/1 NC
	Housing Material Thermoplastic
	Contact Type Non-Over Lapping
	Switching Current 10A
	Terminal Type M3.5 Screw Clamp Terminal
	Switching AC Voltage 400V ac
	Switching DC Voltage 250V dc
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Standards/Approvals IEC 60947-5:1/EN 60947-5-1
	Length 106mm
	Width 30.3mm
	Depth 45mm
	Hazardous Area Certification NO
	Conduit Entry M20x1.5 Cable Gland
	Mechanical Life 10000000Cycles
	Operating Force 13N

COO (Country of Origin):: IT

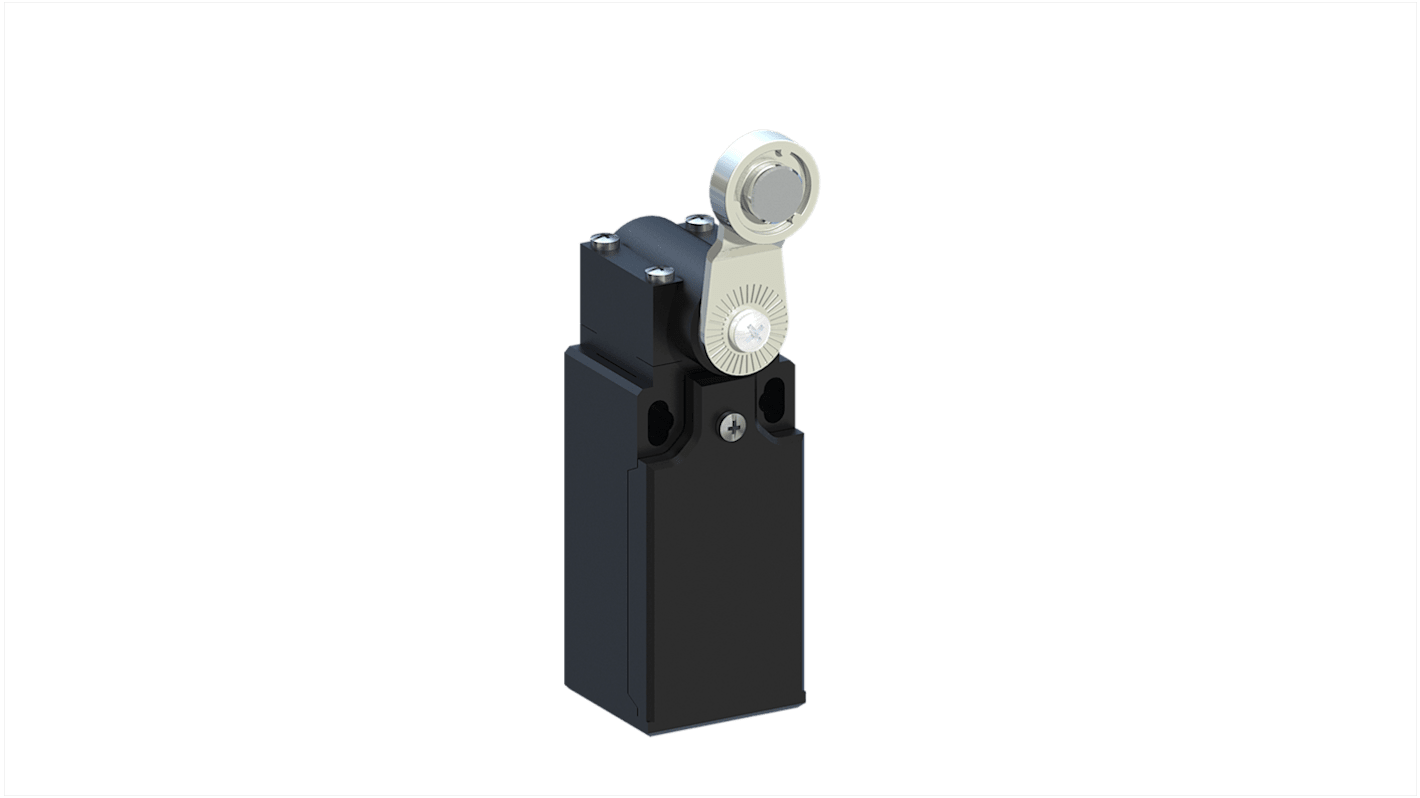

RS PRO Thermoplastic Limit Switch, Steel Roller, 1 NO+ 1 NC

Discover the power of precise control with the RS PRO Thermoplastic Limit Switch, a perfect solution for high-performance industrial applications. Whether you're working with manufacturing equipment, automation systems, or monitoring machinery, this versatile limit switch delivers reliability where it matters most.

Why Would You Choose This Limit Switch?

At the heart of this switch is a steel roller lever (Ø18 mm) that provides smooth and consistent actuation, designed for wear resistance even in the toughest environments. Its reinforced thermoplastic body guarantees resilience, ensuring that the switch withstands the rigours of industrial use. The aesthetic and durable design means it not only performs under pressure but looks good doing it.

Snap Action Contacts for Fast Response

Expect quick, reliable response times thanks to the snap action contacts, ensuring that your operations remain efficient and on track, no matter the demands.

With the RS PRO Thermoplastic Limit Switch, you get a combination of precision, durability, and versatility to enhance your industrial systems' safety, efficiency, and reliability. Whether it's detecting objects, monitoring positioning, or controlling movement, this limit switch has you covered.

Features and Benefits

Ensure seamless detection of objects, vital for automation and safety in fast-paced environments.

Gain precise control over the movement of machine parts, safeguarding your operations against overextension.

Streamline processes by effortlessly counting and tracking objects, ideal for production lines and monitoring systems.

M3.5 screw with cable clamp, the switch offers secure electrical connections for uninterrupted performance.

With a single cable inlet for PG11 gland and an adaptor for 1/ 2 in. NPT cable glands, installation is simple and flexible to suit your requirements.

Standards Met

IEC 60947-5-1, EN 60947-5-1

Applications

Automation and Control

Industrial
