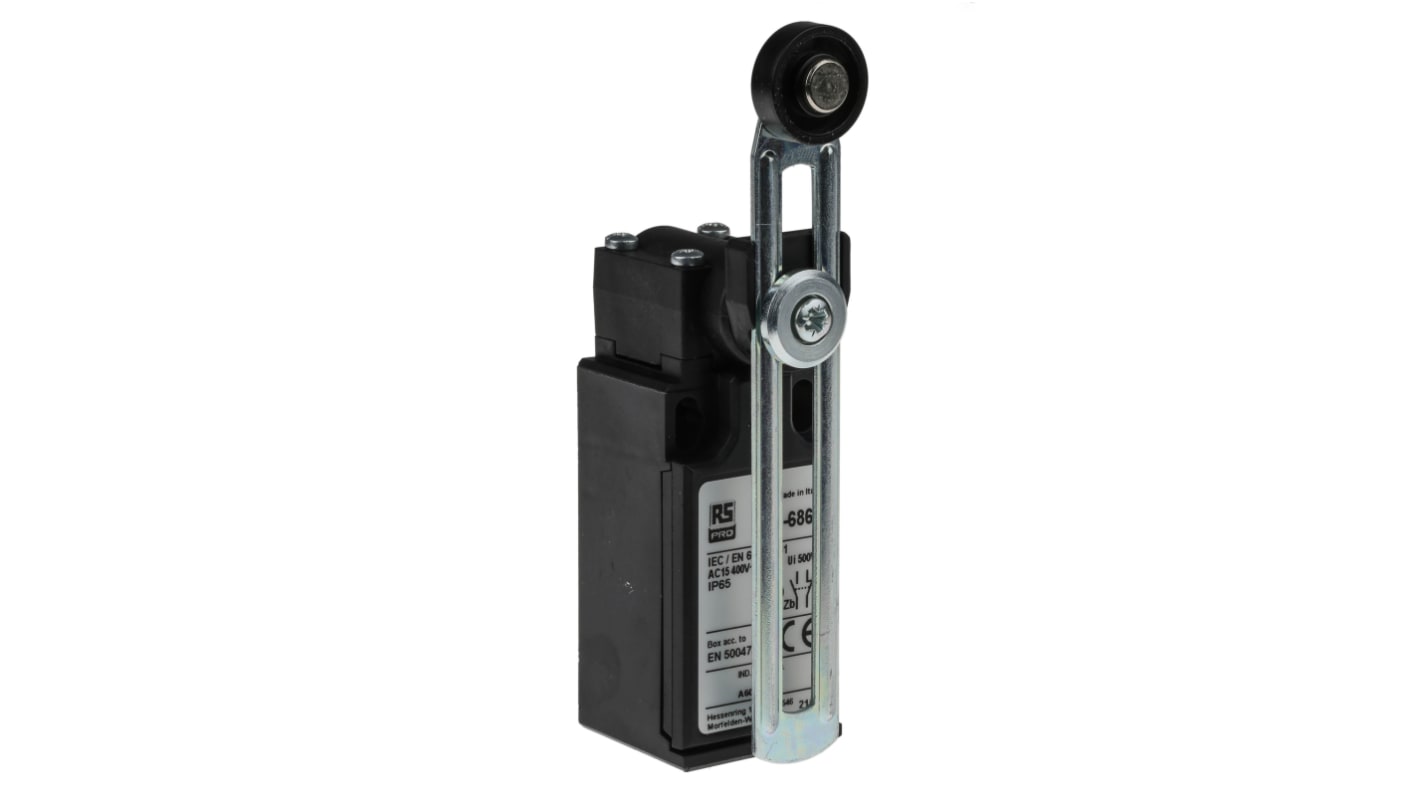

RS PRO Adjustable Roller Lever Limit Switch, 1 NO/1 NC, IP65, Fibreglass Reinforced Thermoplastic Housing, 400V ac, 10A

ดู Limit Switches ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB892.46

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB954.93

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น
ต่อหน่วย
1 +THB892.46

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
902-6865
Distrelec หมายเลขบทความ:
303-91-760
ผู้ผลิต:
RS PRO
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

RS PRO

Product Type

Limit Switch

Actuator Type

Adjustable Roller Lever

Contact Configuration

1 NO/1 NC

IP Rating

IP65

Housing Material

Fibreglass Reinforced Thermoplastic

Contact Type

Snap Action

Terminal Type

Cable

Switching Current

10A

Switching DC Voltage

250V dc

Minimum Operating Temperature

-25°C

Switching AC Voltage

400V ac

Maximum Operating Temperature

70°C

Length

30.3mm

Depth

30mm

Width

170.5mm

Standards/Approvals

CSA, EN, IEC, IMQ, RoHS, UL

Hazardous Area Certification

No

Mechanical Life

15000000Operations

Conduit Entry

M20 x 1.5

Mounting Orientation

Vertical

Operating Force

0.1Nm

COO (Country of Origin):
IT

RS PRO, Snap Limit Switch - Thermoplastic Fibreglass, NO/NC, Adjustable Lever, 400V, IP65


This snap limit switch is used to automatically control mechanical equipment, particularly in industrial applications. Easy to install and with a simple visible operation, it can start, stop or slow down a device when a limit is reached. This could be when a pre-set number of objects is counted, for example, or when a part moves past a specific point.

The switch is capable of handling currents up to 10 A. Its long-lasting, reliable snap action ensures precise, repeatable contact closure. The rotary lever actuator is easily adjusted, which is useful if you're not sure what arm length is required.

This limit switch is made from UL-VO (flame-retardant) thermoplastic fibreglass, which offers double insulation. It also comes with an IP65 protection rating for dust and oil resistance. A versatile component, this snap limit switch is suitable for controlling anything from a robotic arm to a furnace or a garage door.

Features and Benefits


• 30.3 mm x 170.5 mm x 30 mm

• Maximum Voltage (AC) of 400 V

• Maximum Voltage (DC) of 250 V

• Cable connection

• Screw terminal

• DPST pole and throw configuration

• Minimum operating temperatures -25°C

• Maximum operating temperature of +70°C

• 0.1 N operating force

• Vertical orientation

• Minimum of 15,000,000 operations

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
