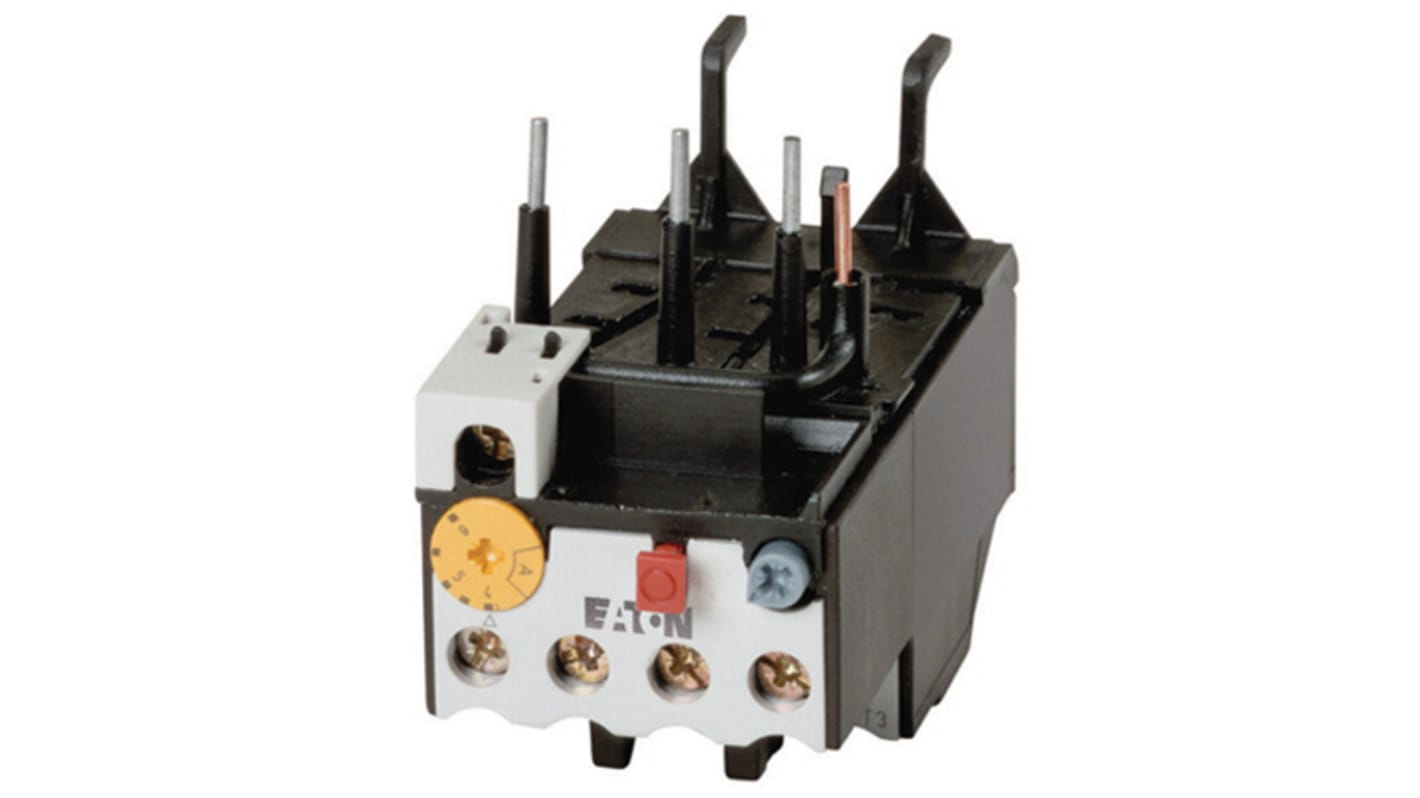

Eaton, ZB Overload Relay 1 NO/1 NC, 4A, 6 A F.L.C, 6A Contact Rating, 6 W, 500V ac
- RS Stock No.:
- 493-0466
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 278450 ZB32-6
- ผู้ผลิต:
- Eaton
ยอดรวมย่อย (1 ชิ้น)*
THB2,676.39
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,863.74
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- 9 ชิ้นจะส่งได้หลังจากวันที่ 19 พฤษภาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,676.39 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 493-0466
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 278450 ZB32-6
- ผู้ผลิต:
- Eaton
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Eaton | |
| FLC Motor Rating | 4, 6A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 6A | |
| Mount Type | Direct | |
| Series | ZB | |
| Power Rating | 6W | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Width | 45mm | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 4 to 6 A | |
| Minimum Operating Temperature | -25°C | |
| Contact Voltage | 690V ac | |
| Length | 96mm | |
| Maximum Operating Temperature | 55°C | |
| Depth | 96mm | |
| Standards/Approvals | IEC/EN 60947, CE Approved, CSA Approved, CSA-C22.2 No. 60947-4-1-14, CSA Class No.:3211-03, CSA File No.:012528, IEC/EN 60947-4-1, UL 508, UL Approved, UL Category Control No.:NKCR, UL File No.:E29184, VDE 0660 | |
| Control Voltage | 500V ac | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Eaton | ||
FLC Motor Rating 4, 6A | ||
Product Type Overload Relay | ||
Relay Contact Current 6A | ||
Mount Type Direct | ||
Series ZB | ||
Power Rating 6W | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Width 45mm | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 4 to 6 A | ||
Minimum Operating Temperature -25°C | ||
Contact Voltage 690V ac | ||
Length 96mm | ||
Maximum Operating Temperature 55°C | ||
Depth 96mm | ||
Standards/Approvals IEC/EN 60947, CE Approved, CSA Approved, CSA-C22.2 No. 60947-4-1-14, CSA Class No.:3211-03, CSA File No.:012528, IEC/EN 60947-4-1, UL 508, UL Approved, UL Category Control No.:NKCR, UL File No.:E29184, VDE 0660 | ||
Control Voltage 500V ac | ||
Eaton Series ZB Overload Relay, 4 to 6A FLC Motor Rating, 6A Contact Current Rating - 278450 ZB32-6
This overload relay from Eaton is designed for efficient motor protection. The device operates within a current range of 4 to 6A, making it suitable for various applications requiring reliable overload protection. With dimensions of 45mm in width, 96mm in depth, and 96mm in height, it fits conveniently within compact setups. This direct contactor overload relay operates effectively within a temperature range from -25°C to +55°C.
Features & Benefits
• Automatic and manual reset options enhance usability
• Utilises a 1NO 1NC contact configuration for versatile applications
• Designed as a screw terminal overload relay for easy installation
• Capable of operating with voltages up to 690 V AC
• High-temperature overload relay functionality ensures durability
• Built-in phase-failure sensitivity for enhanced safety compliance
Applications
• Used for protecting electric motors in various machinery
• Suitable for integration with DILM and DIULM contactors
• Ideal for requiring short-circuit protection
• Commonly used in automation systems within the electrical industry
What is the reset method for this relay?
It features both automatic and manual reset options, providing flexibility depending on the operational needs.
How does this relay protect against overload conditions?
It includes an overload release with a tripping class of 10 A, ensuring that motors are protected from excessive currents that could cause damage.
What is the maximum operating temperature for this device?
It can operate safely in environments with ambient temperatures ranging from -25°C to +55°C, making it versatile for various conditions.
What connections are offered for this overload relay?
The relay provides screw terminal connections, which are reliable for secure wiring and easy installation.
Is it compatible with other electrical components?
Yes, it is suitable for use with several contactors, including models DILM17 and DILM25, among others, ensuring broad compatibility in different applications.
Note
Eaton formerly known as Moeller
