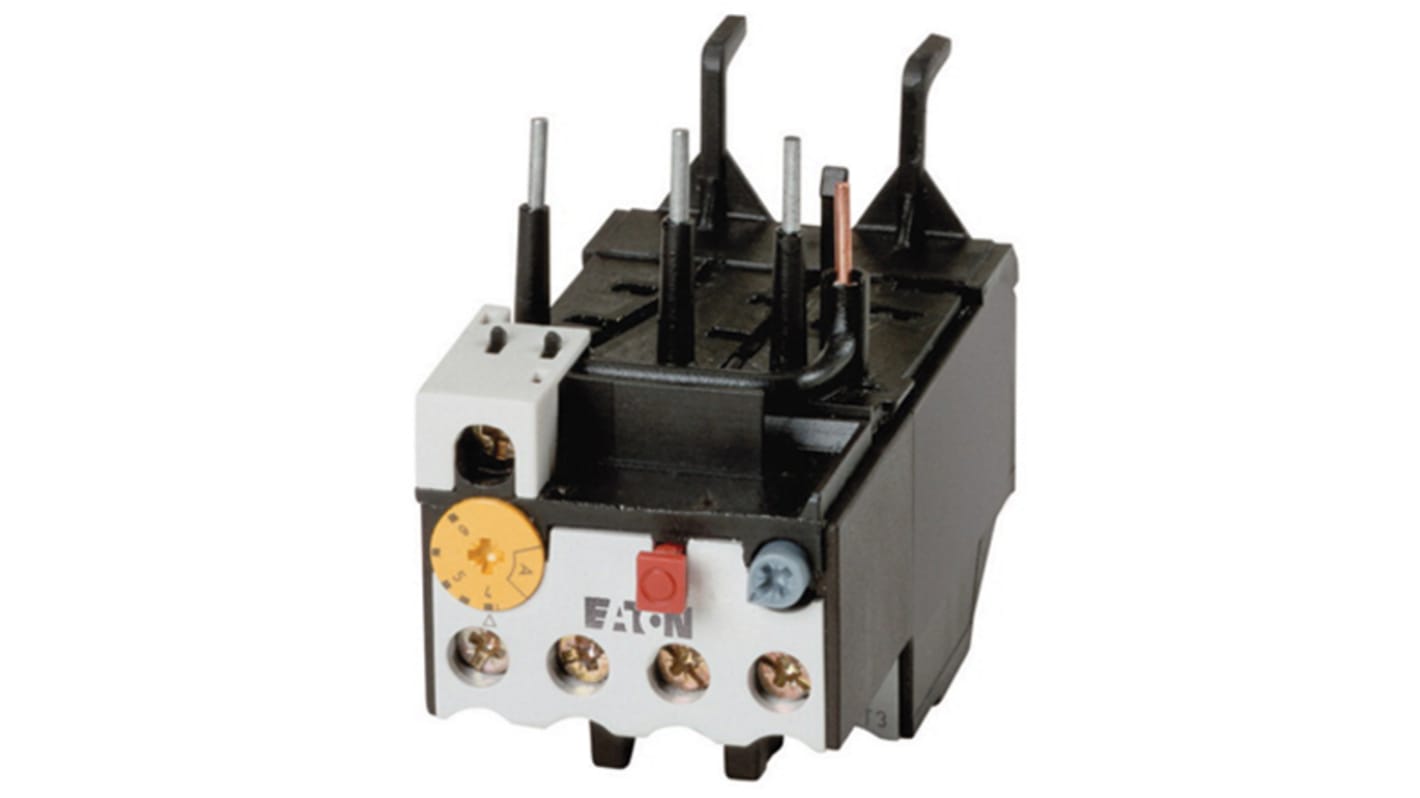

Eaton, ZB Overload Relay 1 NO/1 NC, 1 to 1.6 A F.L.C, 1.6 A Contact Rating, 6 W, 500V ac
- RS Stock No.:
- 493-0438
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 278447 ZB32-1,6
- ผู้ผลิต:
- Eaton
ยอดรวมย่อย (1 ชิ้น)*
THB3,026.91
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,238.79
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- 7 ชิ้นจะส่งได้หลังจากวันที่ 24 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 13 ชิ้นจะส่งได้หลังจากวันที่ 23 มิถุนายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB3,026.91 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 493-0438
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 278447 ZB32-1,6
- ผู้ผลิต:
- Eaton
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Eaton | |
| FLC Motor Rating | 1 to 1.6 A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 1.6 A | |
| Mount Type | Direct | |
| Series | ZB | |
| Power Rating | 6W | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Adjustable Current Range | 1 to 1.6 A | |
| Minimum Operating Temperature | -5°C | |
| Number of Auxiliary Contacts | 2 | |
| Width | 45 mm | |
| Maximum Operating Temperature | 55°C | |
| Contact Voltage | 690V ac | |
| Length | 136mm | |
| Standards/Approvals | CSA Approved, CSA-C22.2 No. 60947-4-1-14, CSA Class No.:3211-03, CSA File No.:012528, IEC/EN 60947, IEC/EN 60947-4-1, UL 508, UL Approved, UL Category Control No.:NKCR, UL File No.:E29184, VDE 0660, CE Approved | |
| Depth | 102mm | |
| Control Voltage | 500V ac | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Eaton | ||
FLC Motor Rating 1 to 1.6 A | ||
Product Type Overload Relay | ||
Relay Contact Current 1.6 A | ||
Mount Type Direct | ||
Series ZB | ||
Power Rating 6W | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Adjustable Current Range 1 to 1.6 A | ||
Minimum Operating Temperature -5°C | ||
Number of Auxiliary Contacts 2 | ||
Width 45 mm | ||
Maximum Operating Temperature 55°C | ||
Contact Voltage 690V ac | ||
Length 136mm | ||
Standards/Approvals CSA Approved, CSA-C22.2 No. 60947-4-1-14, CSA Class No.:3211-03, CSA File No.:012528, IEC/EN 60947, IEC/EN 60947-4-1, UL 508, UL Approved, UL Category Control No.:NKCR, UL File No.:E29184, VDE 0660, CE Approved | ||
Depth 102mm | ||
Control Voltage 500V ac | ||
Eaton Contactor Overload Relay – ZB Series Thermal Overload Relays
The Eaton ZB series thermal overload relay with direct contactor mounting offers reliable motor protection and control in the event of a single-phase failure or overload within a multitude of environments. The auxiliary contacts disconnect the contactor and signal the fault when it overloads, meaning a reset can then take place. It works by cutting off the current to the motor when a high current situation occurs. As the relay receives the corresponding signal, it trips.
This Eaton product is predominantly designed for imitating the heating prototypes that are a staple for keeping your motor circuits healthy, which increases the motor lifetime. It provides an affordable and efficient way for you to protect your motors, whilst giving you peace of mind that you have sufficient motor protection and control.
Eaton’s ZB series overload relays offer reliable and high-quality electric motor control within a multitude of automation and control environments. The ZB series overload relays come with a 500 V ac control voltage, a contact voltage rating of up to 1000 V ac, a temperature range of -5 to +55 °C and 2 auxiliary contact points. Eaton offer a wide range of reliable contactor overload relays to protect machinery from overheating, keeping your business and its operations accessible. All Eaton ZB thermal overload relays can also be used for protecting EEx e motors whilst being an effective and sustainable way for you to protect your motors.
Features and Benefits
• Protects equipment against phase failure or electrical overload.
• Short circuit protection when fitted directly to a contact.
• Modular relay design for use with the DILM contactor range
• 1NO/1NC Auxiliary contacts
• Bimetallic tripping mechanism with trip response from 2 to 10 seconds
• Suitable for protection of Atex motors.
• Single phase failure sensitivity to IEC/EN 60947.
• Manual and automatic reset options.
• Class 10 A overload
When fitting overload relay remote from contactor or using more than one overload relay, use remote mounting base (stock no. 493-0488 - ZB32 only, stock no. 513-0336 - ZB65 only). Note: ZB12 have 5 pins, ZB32 have 4 pins.
Note
Eaton formerly known as Moeller
