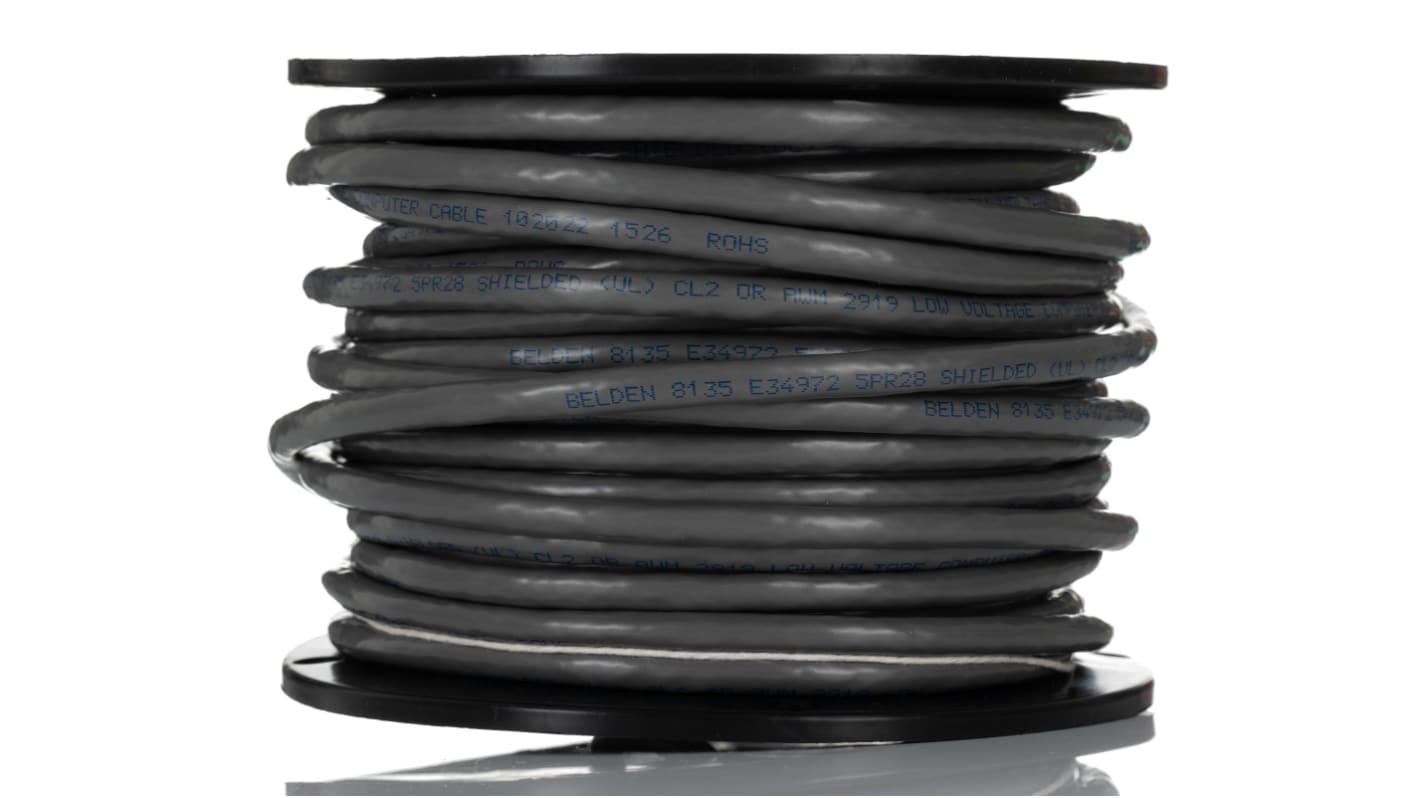

Belden 8135 Series Data Cable 5 Pairs 10 Cores 0.07 mm² 30 m Silver Sheath PVC

ยอดรวมย่อย (1 รีล รีลละ 30 เมตร)*

THB18,222.50

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB19,498.08

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 16 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
  • เพิ่มอีก 44 ชิ้นจะส่งได้หลังจากวันที่ 11 มกราคม 2570 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ม้วน
ต่อม้วน
ต่อเมตร*
1 +THB18,222.50THB607.417

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
397-0283
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
8135 060100
ผู้ผลิต:
Belden
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Belden

Number of Pairs

5

Product Type

Data Cable

Cross Sectional Area

0.07mm²

Number of Cores

10

Cable Length

30m

Jacket Colour

Silver

Outside Diameter

7.62mm

Conductor Type

Stranded

Minimum Operating Temperature

-30°C

Jacket Material

PVC

Maximum Operating Temperature

80°C

Standards/Approvals

Euroclass Eca

Size of Strands

36AWG

Fire Behaviour

IEC 60332-1

Conductor Material

Tin Copper Wire

Core Strands

7 x 36AWG

Series

8135

Number of Strands

7

Voltage

30V

COO (Country of Origin):
US

Belden Data Cable, 10 Cores, Datalene Insulated - 8135 060100


Keep your data communications crystal clear over long distances with this data cable from Belden. Low capacitance helps the signal travel the full 30m length without deterioration. Tinned copper conductors are laid in five twisted pairs to minimise crosstalk and maintain the purity of your signals. Datalene high-density foamed insulation performs well across a wide temperature range of -30°C to +80°C and has good crush resistance, making this an ideal option for installation in tough conditions.

Features & Benefits


• Beldfoil and tinned copper braid shielding protects the conductors from EMI

• Chrome-coloured PVC sheath for an unobtrusive appearance

Applications


• Process control

• Data processing

• Military vehicles

What does shielding do?


Shielding keeps EMI from reaching your conductors, meaning that signals from outside don't mess with the one that you're transmitting through the cable. This belt-and-braces cable has two layers of shielding.

Standards

UL2919; NEC CM
