Belden 9812 Series Data Cable, 12 Pairs, 0.08 mm², 30 m, Silver Sheath Polyvinyl Chloride
- RS Stock No.:
- 176-2092
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 9812 060100
- ผู้ผลิต:
- Belden
ยอดรวมย่อย (1 รีล รีลละ 30 เมตร)*
THB41,435.19
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB44,335.65
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ม้วน | ต่อม้วน | ต่อเมตร* |
|---|---|---|
| 1 + | THB41,435.19 | THB1,381.173 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 176-2092
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 9812 060100
- ผู้ผลิต:
- Belden
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Belden | |
| Number of Pairs | 12 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.08 mm² | |
| Cable Length | 30m | |
| Jacket Colour | Silver | |
| Outside Diameter | 7.874 mm | |
| Minimum Operating Temperature | -30°C | |
| Jacket Material | Polyvinyl Chloride | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | Euroclass Eca | |
| Core Strands | 7 | |
| Voltage | 150 V, 30 V | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH), Flame Retardant | |
| Conductor Material | Tin Copper Wire | |
| Series | 9812 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Belden | ||
Number of Pairs 12 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.08 mm² | ||
Cable Length 30m | ||
Jacket Colour Silver | ||
Outside Diameter 7.874 mm | ||
Minimum Operating Temperature -30°C | ||
Jacket Material Polyvinyl Chloride | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals Euroclass Eca | ||
Core Strands 7 | ||
Voltage 150 V, 30 V | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH), Flame Retardant | ||
Conductor Material Tin Copper Wire | ||
Series 9812 | ||
- COO (Country of Origin):
- US

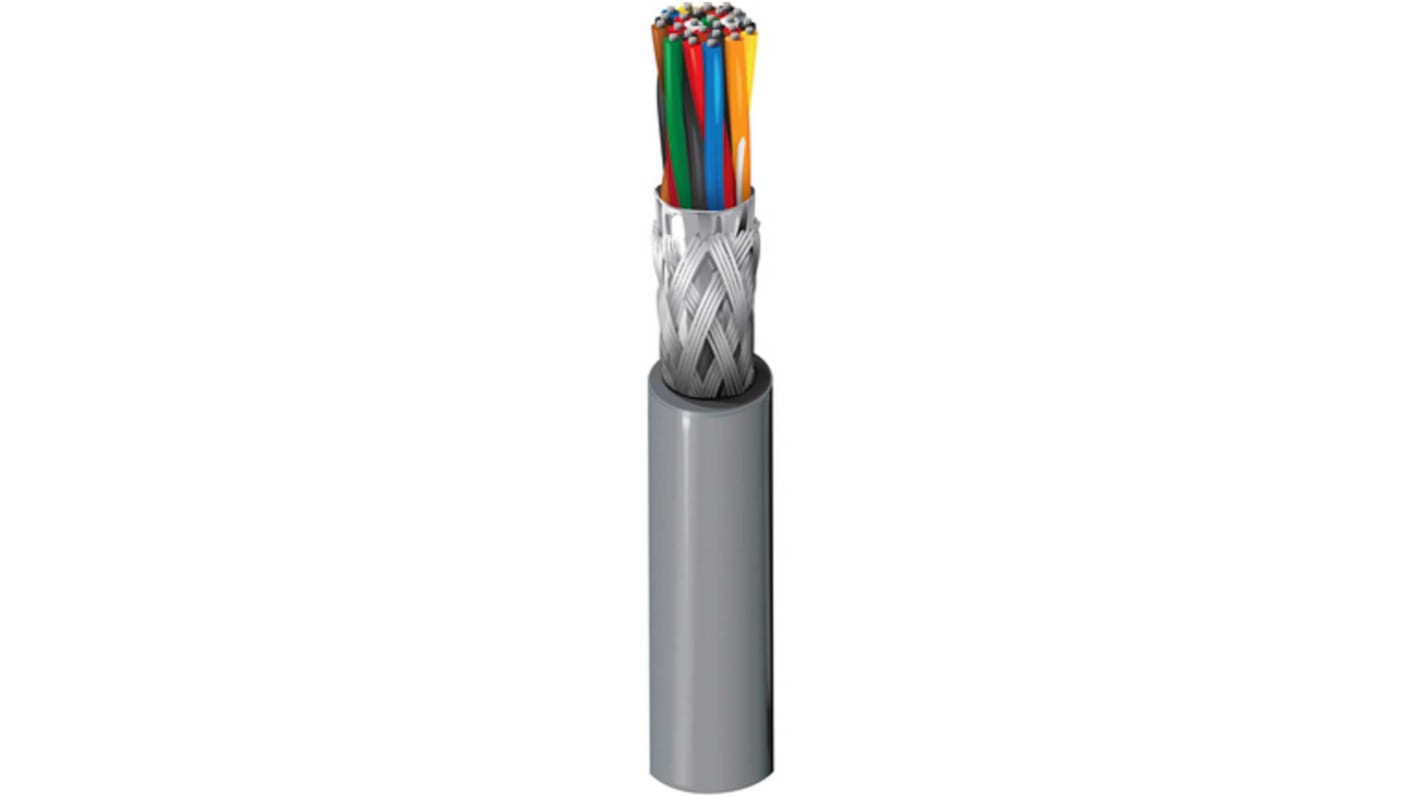

Belden Data Cable, Tinned Copper Conductors, Beldfoil Outer Shield - 9812 060100
Looking for a reliable telecommunication lead? Try this Belden data cable. Thanks to patented Beldfoil shielding, it's completely protected against radiated emissions, so there's minimal chance of signal loss or distortion. As this shielding is also flexible, you can bend the cable without worrying about it cracking or going on the blink. To make termination a breeze, each shield includes an uninsulated drain wire, so there's no need for stripping. This cable is protected by a tough PVC jacket that resists abrasion and wear, so it's a practical choice for harsh industrial settings.
Features & Benefits
• Tinned copper conductors resist corrosion in moist settings
• Maximum pull tension of 47.6kg, so it withstands rough handling
• Insulated for protection against electric shocks
Applications
• Broadcasting equipment
• Security systems
• Energy industries
• Transportation
Is this cable prone to crosstalk?
No, because of its comprehensive shielding, there's little chance of the product interfering with the function of nearby electronic devices.
