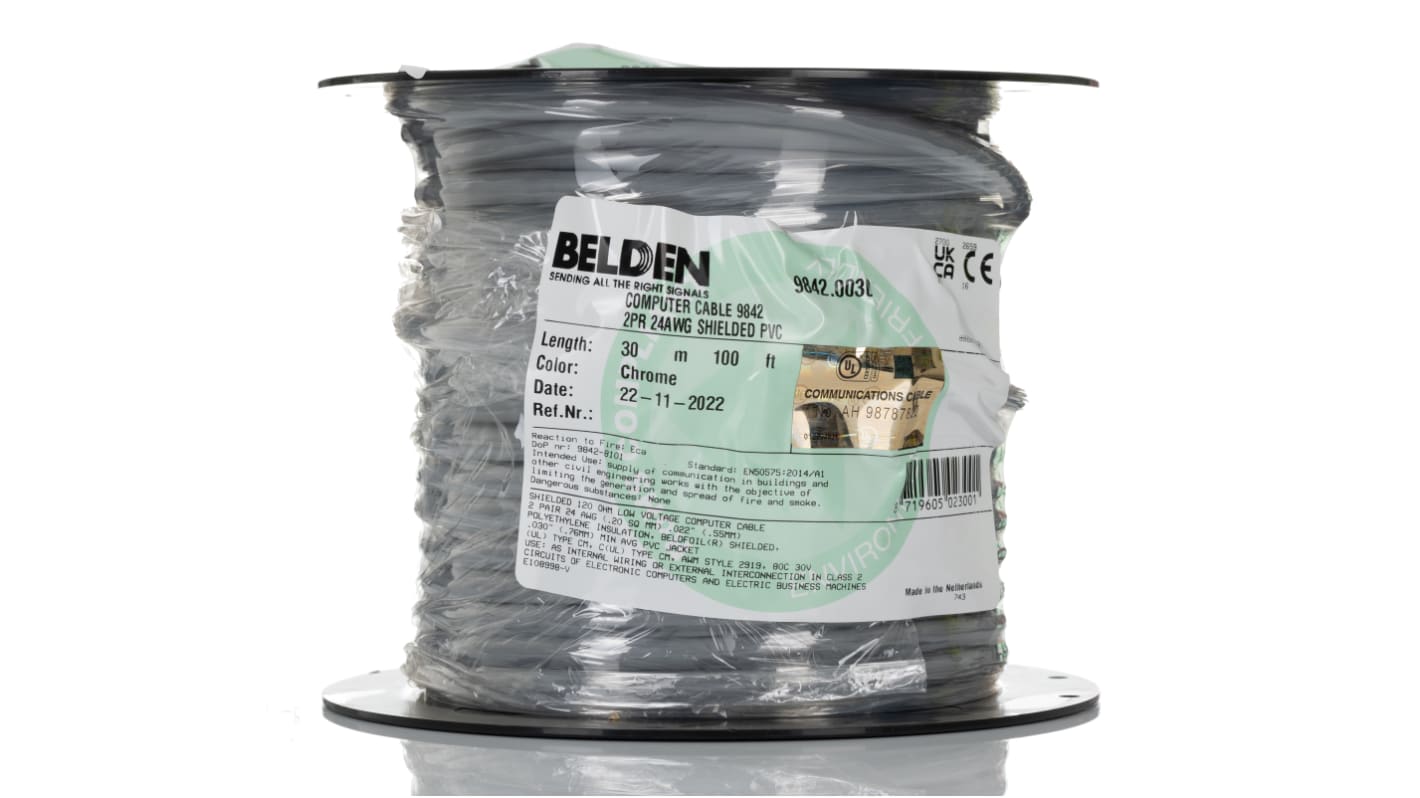

Belden 9842 Series Data Cable, 2 Pairs, 0.25 mm², 30 m, Silver Sheath Polyvinyl Chloride
- RS Stock No.:
- 172-0978
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 9842.0030
- ผู้ผลิต:
- Belden
ยอดรวมย่อย (1 รีล รีลละ 30 เมตร)*
THB10,004.69
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB10,705.02
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 7 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 5 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 5 ชิ้นจะส่งได้หลังจากวันที่ 03 มิถุนายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ม้วน | ต่อม้วน | ต่อเมตร* |
|---|---|---|
| 1 + | THB10,004.69 | THB333.49 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 172-0978
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 9842.0030
- ผู้ผลิต:
- Belden
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Belden | |
| Number of Pairs | 2 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.25 mm² | |
| Cable Length | 30m | |
| Jacket Colour | Silver | |
| Outside Diameter | 8.64mm | |
| Minimum Operating Temperature | -30°C | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EU CE Mark, EU Directive 2000/53/EC (ELV), EU Directive 2003/96/EC (BFR), EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU, EU Directive Compliance | |
| Core Strands | 7 | |
| Fire Behaviour | Fire Resistant | |
| Conductor Material | Tin Copper Wire | |
| Series | 9842 | |
| Voltage | 300V | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Belden | ||
Number of Pairs 2 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.25 mm² | ||
Cable Length 30m | ||
Jacket Colour Silver | ||
Outside Diameter 8.64mm | ||
Minimum Operating Temperature -30°C | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EU CE Mark, EU Directive 2000/53/EC (ELV), EU Directive 2003/96/EC (BFR), EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU, EU Directive Compliance | ||
Core Strands 7 | ||
Fire Behaviour Fire Resistant | ||
Conductor Material Tin Copper Wire | ||
Series 9842 | ||
Voltage 300V | ||
- COO (Country of Origin):
- US
Belden 9842 Series Data Cable, 1000ft Cable Length, Chrome Jacket - 9842 0601000
This data cable is designed for industrial signal and control wiring across automation, electronics and electrical environments. It comprises two insulated pairs within a PVC outer sheath and is intended for installations that require flexible conductors and moderate voltage capability. The cable is suitable for indoor routing where a flame-retardant construction and a coloured jacket aid identification.
Features & Benefits
• 2-pair construction provides balanced signalling and easier pair management
• Tinned copper stranded conductors enhance flexing performance
• 0.25mm² conductor area supports low-current control circuits
• 7x32 strand count improves fatigue resistance during movement
• Rated to 300V enabling safe operation in common control systems
• Flame behaviour meets IEC60332-1-2 to reduce vertical flame spread
• Tinned copper stranded conductors enhance flexing performance
• 0.25mm² conductor area supports low-current control circuits
• 7x32 strand count improves fatigue resistance during movement
• Rated to 300V enabling safe operation in common control systems
• Flame behaviour meets IEC60332-1-2 to reduce vertical flame spread
**Applications**
• Suitable for panel wiring in automated machinery
• Ideal for sensor and actuator interconnections on production lines
• Used with control cabinets for distributed I/O connections
• Can be used for internal wiring of electrical equipment
• Suitable for fieldbus drop lines in factory environments
• Ideal for sensor and actuator interconnections on production lines
• Used with control cabinets for distributed I/O connections
• Can be used for internal wiring of electrical equipment
• Suitable for fieldbus drop lines in factory environments
What temperature range can it withstand during operation?
It tolerates ambient conditions from -30°C up to +80°C, suitable for many plant and workshop locations.
How does the outer sheath assist installation?
The PVC jacket offers mechanical protection and a chrome colour for Visual identification during cable runs.
What approvals support its use in regulated installations?
It carries approvals under CEC, UL and APAC schemes recognised for use in various jurisdictions.
How does conductor construction affect cable flexibility?
The fine-stranded 7x32 tinned copper cores provide high-flex characteristics and improved resistance to repeated bending.
