Belden 9501 Series Data Cable, 1 Pairs, 2 Cores, 0.25 mm², Screened, 24 AWG, 305m, Screened Shield
- RS Stock No.:
- 382-576
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 9501.00U305
- ผู้ผลิต:
- Belden
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 กล่อง กล่องละ 304 เมตร)*
THB16,962.32
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB18,149.68
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 15 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
กล่อง | ต่อกล่อง | ต่อเมตร* |
|---|---|---|
| 1 - 14 | THB16,962.32 | THB55.797 |
| 15 + | THB16,620.02 | THB54.671 |
*price indicative
- RS Stock No.:
- 382-576
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 9501.00U305
- ผู้ผลิต:
- Belden
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Belden | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 2 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 305m | |
| Shield Type | F/UTP | |
| CPR Certification | Eca | |
| Sheath Colour | Chrome | |
| Outer Diameter | 3.96mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 75 Ω | |
| Series | 9501 | |
| Standards Met | Euroclass Eca | |
| Shielded/Unshielded | Shielded | |
| Core Strands | 7/32 AWG | |
| Voltage Rating | 300 V | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Belden | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 2 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 305m | ||
Shield Type F/UTP | ||
CPR Certification Eca | ||
Sheath Colour Chrome | ||
Outer Diameter 3.96mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 75 Ω | ||
Series 9501 | ||
Standards Met Euroclass Eca | ||
Shielded/Unshielded Shielded | ||
Core Strands 7/32 AWG | ||
Voltage Rating 300 V | ||
- COO (Country of Origin):
- NL

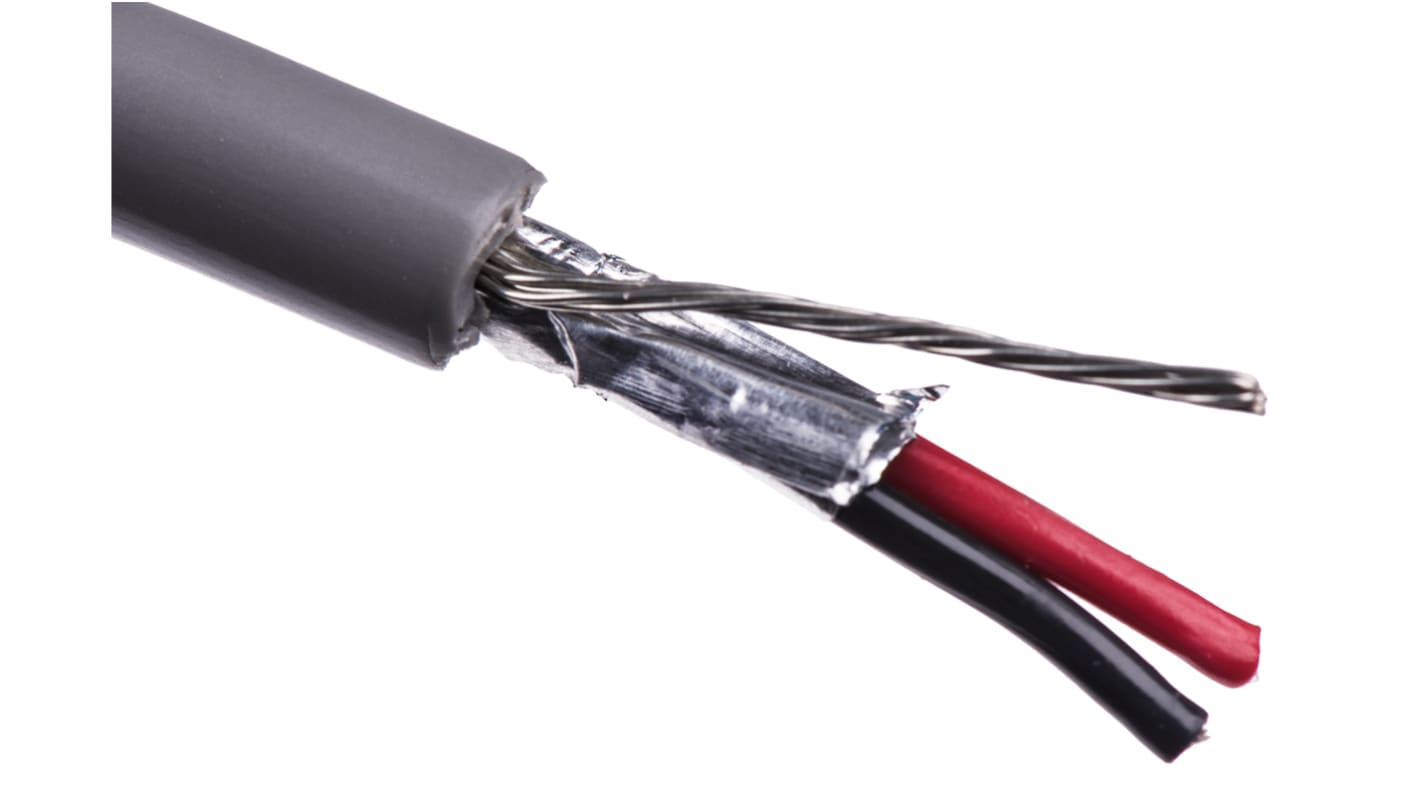

Belden 1 Twisted Pair Screened Data Cable, 0.25mm² CSA, 305m Length - 9501.00U305
This screened cable from Belden transfers data between devices in a computer communications network. It features a robust PVC jacket that resists contaminants commonly found in industrial areas, like chemicals and grease. The outer jackets also protect against above-average wear and tear. A patented Beldfoil shield provides electrostatic shielding, so reduces the risk of interference from nearby electronic devices. The twisted pair cable is flexible, meaning you can bend it around corners without the risk of signal loss.
Features & Benefits
• PVC insulated for protection against electric shocks
• Drain wire routes electrical noise into the ground to minimise signal interference
• Tinned copper conductors resist corrosion, so are suited to humid conditions
• Broad operating temperature range of -30°C to +80°C for use in demanding environments
• Drain wire routes electrical noise into the ground to minimise signal interference
• Tinned copper conductors resist corrosion, so are suited to humid conditions
• Broad operating temperature range of -30°C to +80°C for use in demanding environments
Applications
• Computer communications
• Low voltage digital control
• Line level audio
• Low voltage digital control
• Line level audio
Can I use this cable over long runs without losing signal?
Yes, this product is suitable for long cable runs as it has low capacitance and delivers strong signal transmission over extended distances.
Will this cable interfere with other cables?
There's little risk of this cable interfering with nearby wiring as its signals are carried in opposing directions. This means its internal magnetic fields cancel each other out.
