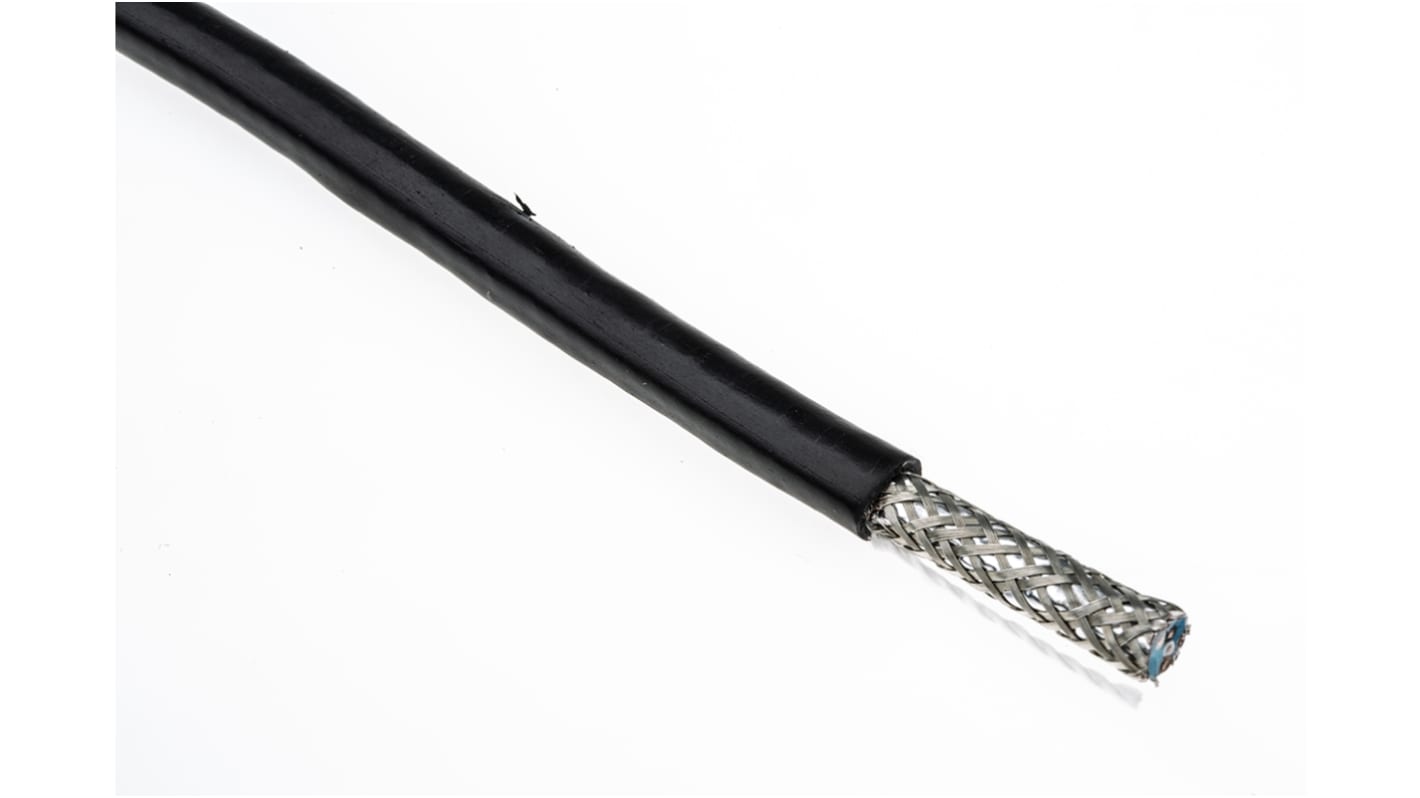

Alpha Wire XTRA-GUARD 2 Series Data Cable, 2 Pairs, 30 m, Black Sheath Polyurethane

RS Stock No.:: 409-296
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 25272 BK005
ผู้ผลิต:: Alpha Wire

Alpha Wire XTRA-GUARD 2 Series Data Cable, 2 Pairs, 30 m, Black Sheath Polyurethane

ยอดรวมย่อย (1 รีล รีลละ 30 เมตร)*

THB12,712.89

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB13,602.79

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ม้วน	ต่อม้วน	ต่อเมตร*
1 +	THB12,712.89	THB423.763

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 409-296
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 25272 BK005
ผู้ผลิต:: Alpha Wire

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Alpha Wire
	Number of Pairs	2
	Product Type	Data Cable
	Cable Length	30m
	Jacket Colour	Black
	Outside Diameter	6.1mm
	Minimum Operating Temperature	-30°C
	Conductor Type	Stranded
	Jacket Material	Polyurethane
	Maximum Operating Temperature	105°C
	Standards/Approvals	CSA, UL, CE
	Series	XTRA-GUARD 2
	Conductor Material	Tin Copper Wire
	Fire Behaviour	Passes Csa Ft1 Flame Test, Passes UL VW-1 Flame Test
	Core Strands	7
	Voltage	300V

	เลือกทั้งหมด
	Brand Alpha Wire
	Number of Pairs 2
	Product Type Data Cable
	Cable Length 30m
	Jacket Colour Black
	Outside Diameter 6.1mm
	Minimum Operating Temperature -30°C
	Conductor Type Stranded
	Jacket Material Polyurethane
	Maximum Operating Temperature 105°C
	Standards/Approvals CSA, UL, CE
	Series XTRA-GUARD 2
	Conductor Material Tin Copper Wire
	Fire Behaviour Passes Csa Ft1 Flame Test, Passes UL VW-1 Flame Test
	Core Strands 7
	Voltage 300V

Belden XTRA-GUARD 2 Series Data Cable, 30m Length, 24 AWG Gauge - 25272 BK005

This data cable is designed for reliable connectivity in various industrial applications. Constructed with a length of 30m, it features a twisted pair design to minimise signal interference. The cable comprises four 24 AWG cores, encased in a robust PUR sheath offering optimal protection against environmental factors, ensuring performance in temperatures ranging from -30°C to +90°C.

Features & Benefits

• Screened to reduce electromagnetic interference, ensuring cleaner signals

• High-temperature resilience supports diverse industrial environments

• Foil shielded to enhance durability and reliability in challenging conditions

• Twisted pair configuration aids in maintaining signal integrity

• 300 VRMS voltage rating allows for versatile applications

• Flexible polyurethane sheath facilitates ease of installation

Applications

• Used for data transmission in automation systems

• Ideal for connecting sensors in manufacturing processes

• Utilised for communication between electrical control units

• Effective in harsh environments requiring robust cabling solutions

How does the screening affect signal quality in data transmission?

The cable features a screened design which minimises electromagnetic interference, allowing for cleaner and more reliable data transmission. As a result, users can expect enhanced performance in environments with high levels of electrical noise.

What advantages does the twisted pair configuration provide?

The twisted pair design helps in cancelling out crosstalk and interference, which significantly improves the signal quality. This makes it particularly effective for data-sensitive applications in automation and electronics sectors.

What safety ratings does this cable meet?

It is rated for 300 VRMS, meeting various compliance standards such as CE, CSA, and UL. This ensures its suitability for a range of industrial applications requiring stringent safety measures.

Can this cable withstand outdoor conditions?

Yes, the PUR sheath provides excellent resistance against environmental factors, making it suitable for outdoor use where exposure to sunlight and moisture can be a concern.
