Alpha Wire, 1 Pairs Polyurethane

This data cable is a single-pair communication cable designed for industrial and electronic signal transmission in automation and control systems. It combines a tinned copper conductor with a robust polymer jacket and foil shielding to maintain signal integrity in demanding environments while operating across a wide temperature range.

• 0.35mm² tin copper wire cable delivers consistent conductivity and flexibility
• VW-1 FT1 flame-retardant cable reduces fire propagation risk in installations
• 300V single-pair communication cable supports standard low-voltage systems
• 7-strand copper conductor cable provides mechanical pliability and fatigue resistance
• -30°C to 90°C temperature-rated cable maintains performance across extremes
• UL CSA CE approved data cable simplifies specification acceptance across regions

• Suitable for fieldbus and single-pair signal runs in factory automation
• Ideal for control-panel wiring in electrical and mechanical assemblies
• Used with shielded sensor cabling to reduce electromagnetic interference
• Can be used for interconnects in test and measurement rigs

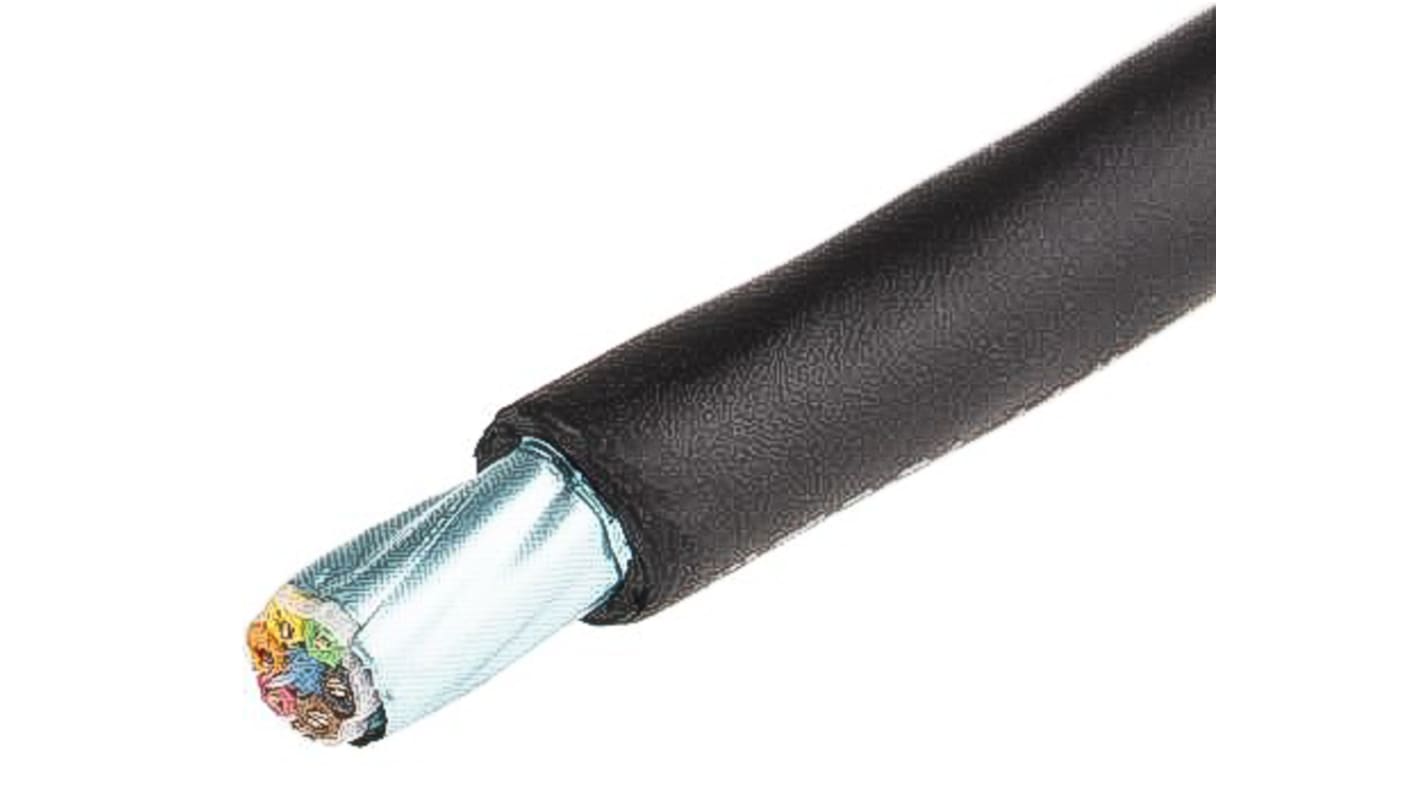

A laminated aluminium/mylar foil wrap surrounds the pair with a tinned copper drain conductor for effective earthing and straightforward termination.

The conductor comprises seven tinned copper strands (7/30 AWG equivalent) to balance flexibility for routing and reliable solder or crimp terminations.

The black polyvinyl chloride outer sheath offers sunlight resistance, abrasion tolerance and a nominal wall thickness tailored for protection without excessive stiffness.

The single pair uses a white/black colour code to simplify tracing and connection in multi-cable harnesses.

For installation best practice maintain a minimum bend radius of 10x cable diameter and observe pull tensions below the specified maximum.
