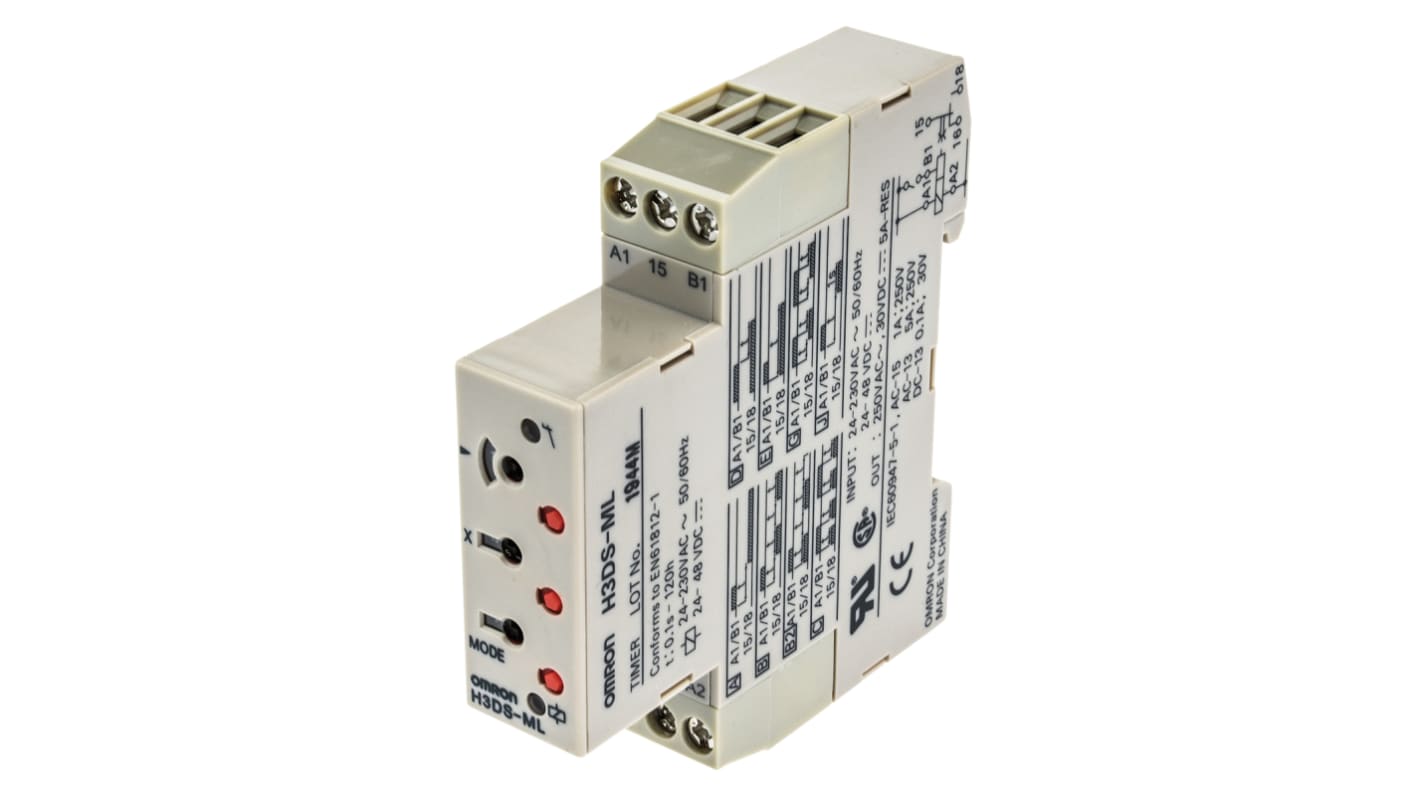

Omron EF7616. Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 1-Contact, 0.1 s →
- RS Stock No.:
- 365-6987
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3DS-ML AC/DC
- ผู้ผลิต:
- Omron
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB2,598.56
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,780.46
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีสต็อกจำกัด
- 16 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 24 | THB2,598.56 |
| 25 - 124 | THB2,546.58 |
| 125 + | THB2,095.84 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 365-6987
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3DS-ML AC/DC
- ผู้ผลิต:
- Omron
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Omron | |
| Supply Voltage | 24 → 230 V ac, 24 → 48V dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output | |
| Time Range | 0.1 s → 120h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Seconds | |
| Maximum Current | 5A | |
| Maximum Voltage | 30 V dc, 250V ac | |
| Terminal Type | Screw | |
| Switch Configuration | SPDT | |
| Width | 17.5mm | |
| Power Supply | External | |
| Minimum Voltage | 24V ac/dc | |
| Series | EF7616. | |
| Length | 80mm | |
| Depth | 73mm | |
| Maximum Operating Temperature | +55°C | |
| Time Delay | 0.1s | |
| Minimum Operating Temperature | -10°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Omron | ||
Supply Voltage 24 → 230 V ac, 24 → 48V dc | ||
Mounting Type DIN Rail | ||
Mode of Operation Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output | ||
Time Range 0.1 s → 120h | ||
Number of Contacts 1 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration SPDT | ||
Time Increment Hours, Seconds | ||
Maximum Current 5A | ||
Maximum Voltage 30 V dc, 250V ac | ||
Terminal Type Screw | ||
Switch Configuration SPDT | ||
Width 17.5mm | ||
Power Supply External | ||
Minimum Voltage 24V ac/dc | ||
Series EF7616. | ||
Length 80mm | ||
Depth 73mm | ||
Maximum Operating Temperature +55°C | ||
Time Delay 0.1s | ||
Minimum Operating Temperature -10°C | ||
OMRON Timer Relay, 7 Operating Modes, 5A Maximum Current - EF7616. Series - H3DS-ML AC/DC
Set your device control to the millisecond with this timer relay from OMRON. You can adjust its functions between seven different operating modes, so it's a versatile multitasker. A setting range between 0.1s and 120h lets you adjust the time delay by the second, minute and hour to suit your preference. The unit has two built-in LED indicators that show its power and relay status so you can check on it in a flash. With built-in resistance to shock and vibration, this relay remains stable even when things get shaky.
Features & Benefits
• Maximum operating time accuracy of ±1% of FS for reliable performance
• Quick time delay of 0.1s for rapid reset
• Reliable performance in harsh environments thanks to an operating temperature range of -10°C to +55°C
• Quick time delay of 0.1s for rapid reset
• Reliable performance in harsh environments thanks to an operating temperature range of -10°C to +55°C
Applications
• Agricultural equipment
• Bottling plants
• Process control
• HVAC systems
• Bottling plants
• Process control
• HVAC systems
How durable is this relay?
A lengthy mechanical life expectancy of 10 million operations tells you this is a reliable option for long-term processes in your machinery.
How do I mount this relay?
You can mount it in a jiffy by clipping it onto a DIN rail.
Approvals
UL, CSA
