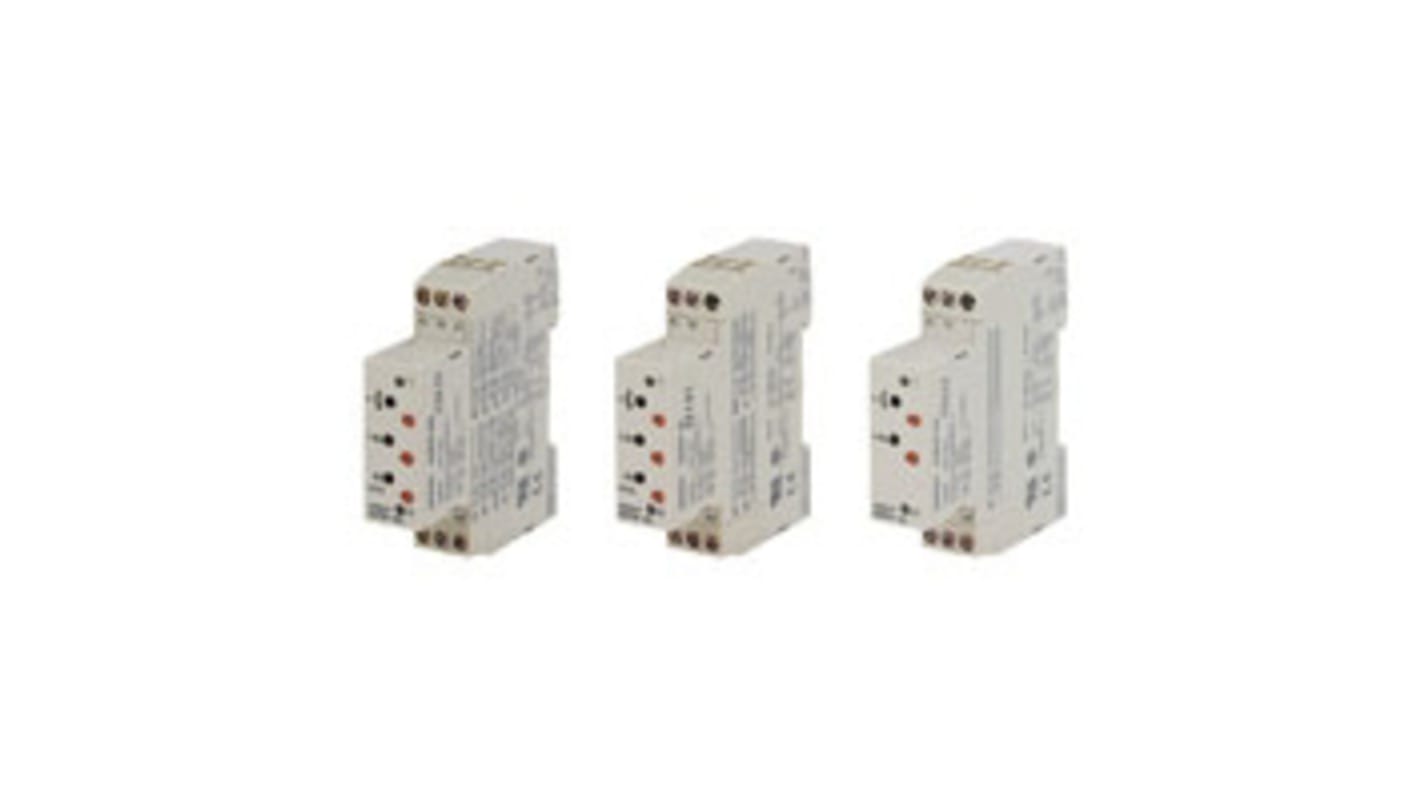

Omron H3DS Series DIN Rail Timer Relay, 24 to 48 V dc 230V ac, 24 V ac, 0.1 s to 120 h, Multifunction-Function, SPDT

RS Stock No.:: 177-0074
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3DS-XLC
ผู้ผลิต:: Omron

Omron H3DS Series DIN Rail Timer Relay, 24 to 48 V dc 230V ac, 24 V ac, 0.1 s to 120 h, Multifunction-Function, SPDT

ยอดรวมย่อย (1 ชิ้น)*

THB2,586.35

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,767.39

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

หมดสต็อกชั่วคราว

จะส่งได้หลังจากวันที่ 17 กรกฎาคม 2569 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB2,586.35

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 177-0074
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3DS-XLC
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Product Type	Timer Relay
	Function	Offset Double Ring End, Timer, Star-Delta
	Mount Type	DIN Rail
	Time Range	0.1 s to 120 h
	Number of Timer Functions	Multifunction
	Contact Configuration	SPDT
	IP Rating	IP20, IP30
	Supply AC Voltage	230, 24V ac
	Supply DC Voltage	24 to 48 V dc
	Timing Adjustment	Dial
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	55°C
	Terminal Type	Screw
	Width	80mm
	Standards/Approvals	DIN 43880, UL, CE, CSA
	Length	17.5mm
	Height	74mm
	Series	H3DS

	เลือกทั้งหมด
	Brand Omron
	Product Type Timer Relay
	Function Offset Double Ring End, Timer, Star-Delta
	Mount Type DIN Rail
	Time Range 0.1 s to 120 h
	Number of Timer Functions Multifunction
	Contact Configuration SPDT
	IP Rating IP20, IP30
	Supply AC Voltage 230, 24V ac
	Supply DC Voltage 24 to 48 V dc
	Timing Adjustment Dial
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 55°C
	Terminal Type Screw
	Width 80mm
	Standards/Approvals DIN 43880, UL, CE, CSA
	Length 17.5mm
	Height 74mm
	Series H3DS

Datasheet

COO (Country of Origin):: ID

Omron H3DS Series Timer Relay, 0.1s to 120h Time Range, SPDT Contact Configuration - H3DS-XLC

This timer relay is a multifunction timing device designed for control panels and automation systems where selectable timing and contact switching are required. It provides selectable offset double-ring end and star-delta sequencing functions and is suitable for DIN-rail mounting in industrial electrical installations. The unit supports a range of supply voltages and offers manual timing adjustment for flexible process control.

Features and Benefits:

• Time range 0.1s to 120h provides extensive timing flexibility
• SPDT contact offers single-changeover switching capability
• Dial-adjustable timer relay enables quick on-site tuning
• Screw-terminal timer relay IP20, IP30 allows secure wiring options
• Supply AC voltage 24/230V AC/DC accommodates varied mains supplies
• Supply DC voltage 24 to 48V DC supports low-voltage control circuits

Applications

• Suitable for motor start sequencing in star-delta configurations
• Ideal for general-purpose delay and sequencing in control panels
• Used with PLCs for auxiliary timing and interlock functions
• Can be used for phased machine start-up to reduce inrush currents

What mounting method does it use and how does that aid installation?

It clips onto a standard DIN rail, enabling Rapid installation and simple removal during panel changes.

What temperature range can it operate within for factory environments?

It is rated to operate between -10°C and 55°C, covering typical indoor industrial ambient conditions.

Which approvals indicate compatibility with industrial equipment standards?

It carries DIN43880, UL, CE and CSA approvals indicating conformance with common regulatory and safety frameworks.

How is mechanical connection to the control wiring achieved?

Terminals use screw connections to secure conductors and facilitate straightforward field wiring.

What protection ratings are provided for enclosure suitability?

It is available with IP20 and IP30 ingress classifications suitable for protected cabinet mounting.
