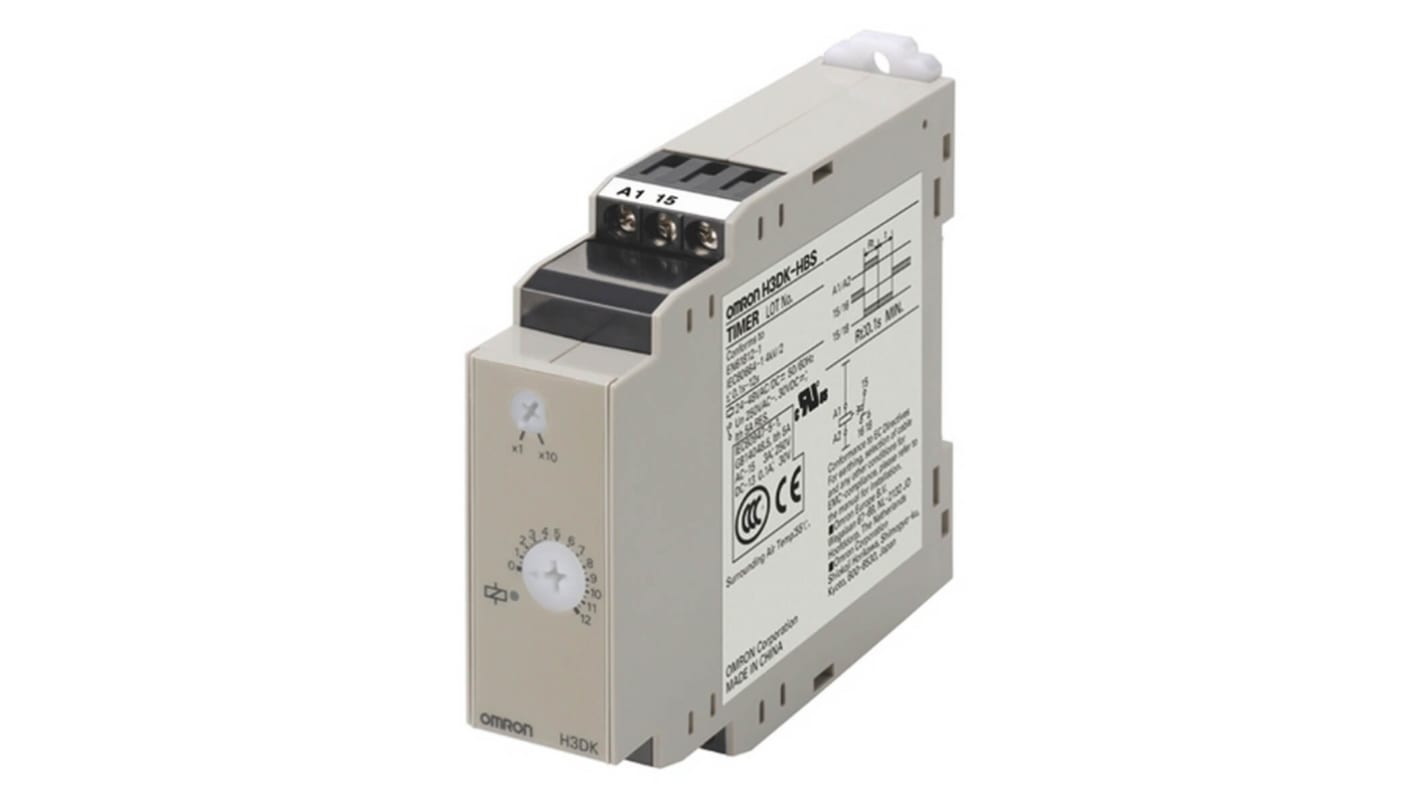

Omron DIN Rail Timer Relay, 2-Contact, 24 to 48 V ac/dc 24V ac, 48 V ac, 1 to 120 s, 1-Function, SPDT Switch

RS Stock No.:: 264-1637
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3DK-HBL 24-48VAC/DC
ผู้ผลิต:: Omron

Omron DIN Rail Timer Relay, 2-Contact, 24 to 48 V ac/dc 24V ac, 48 V ac, 1 to 120 s, 1-Function, SPDT Switch

ยอดรวมย่อย (1 ชิ้น)*

THB4,340.72

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB4,644.57

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น	ต่อหน่วย
1 +	THB4,340.72

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 264-1637
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3DK-HBL 24-48VAC/DC
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Product Type	Timer Relay
	Mount Type	DIN Rail
	Time Range	1 to 120 s
	Number of Contacts	2
	Number of Timer Functions	1
	Contact Configuration	SPDT
	IP Rating	IP30
	Supply AC Voltage	24, 48V ac
	Supply DC Voltage	24 to 48 V ac/dc
	Minimum Operating Temperature	-20°C
	Contact Current	5A
	Terminal Type	Screw
	Maximum Operating Temperature	55°C
	Standards/Approvals	EN 61812-1, IEC 60664-1 4 kV/2, cURus (UL 508 CSA C22.2 No. 14), EN 50274

	เลือกทั้งหมด
	Brand Omron
	Product Type Timer Relay
	Mount Type DIN Rail
	Time Range 1 to 120 s
	Number of Contacts 2
	Number of Timer Functions 1
	Contact Configuration SPDT
	IP Rating IP30
	Supply AC Voltage 24, 48V ac
	Supply DC Voltage 24 to 48 V ac/dc
	Minimum Operating Temperature -20°C
	Contact Current 5A
	Terminal Type Screw
	Maximum Operating Temperature 55°C
	Standards/Approvals EN 61812-1, IEC 60664-1 4 kV/2, cURus (UL 508 CSA C22.2 No. 14), EN 50274

Datasheet - H3DK-HBL 24-48VAC/DC

Omron Timer Relay, 24 to 48V Supply Voltage, 1 to 120s Time Range - H3DK-HBL 24-48VAC/DC

This timer relay provides adjustable delay control for industrial control panels and automation systems, operating from a low-voltage supply and mounted on DIN rail for Compact installation. It offers a single timing function with a variable interval suited to sequential control tasks and integrates into electrical assemblies that require time-based switching.

Features and Benefits:

• Supply range 24–48V AC/DC allows flexible power sourcing
• SPDT contact configuration enables changeover switching capability
• Contact rating 5A supports common control-circuit loads
• Time span 1–120s accommodates short to medium delays
• Two-contact arrangement provides separate make and break points
• IP30 enclosure rating fits protected panel environments

Applications

• Suitable for sequencing motors and starters in control panels
• Ideal for delay control in conveyor and material-handling systems
• Used with indicator circuits for timed signalling and alarms
• Can be used for interlock timing in machine control cabinets
• Used for automated restart delays in electrical distribution racks

What Terminal type is provided for wiring reliability?

Screw terminals are supplied to secure conductors and facilitate repeatable connections during installation and maintenance.

What mounting method is required for panel integration?

The device attaches to a DIN rail, enabling Rapid insertion and removal within standard control enclosures.

How does the relay perform across temperature ranges?

It is rated to operate from -20°C up to 55°C, maintaining timing function within that ambient span.

Which standards influence its electrical insulation and safety?

It conforms to recognised international specifications addressing timer performance and insulation withstand criteria.

Does it offer multiple timing modes or only a single function?

The unit provides one timer function, configured for adjustable delay within the specified time range.
