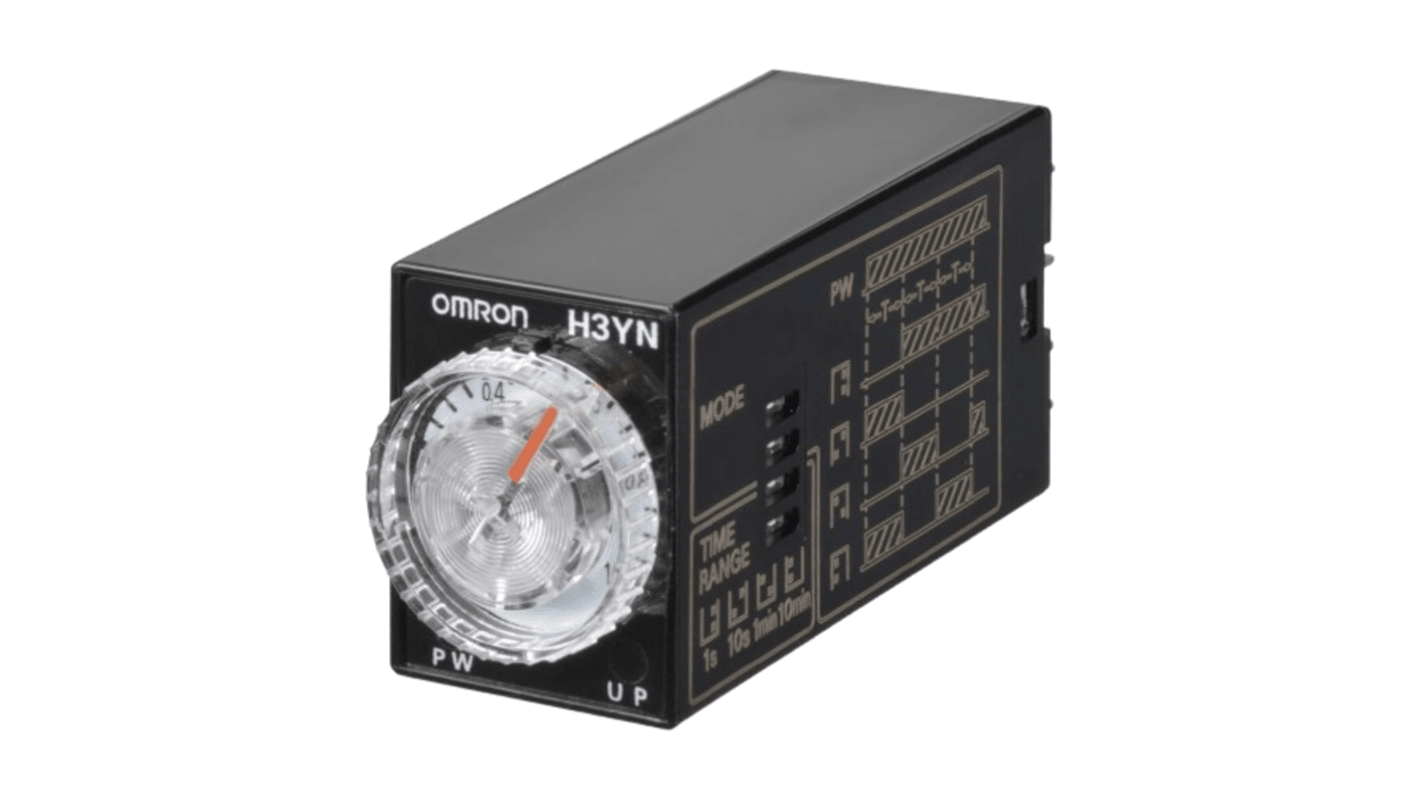

Omron H3YN Series Panel Mount Timer Relay, 200 → 230V ac, 4-Contact, 0.1 s → 10min, DPDT

ดู Timer Relays ทั้งหมด

ยอดรวมย่อย (1 ชิ้น)*

THB2,783.94

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,978.82

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 4 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 +THB2,783.94

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
106-6249
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
H3YN-2-B AC200-230
ผู้ผลิต:
Omron
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Omron

Supply Voltage

200 → 230V ac

Mounting Type

Panel Mount

Mode of Operation

Delay ON, Flicker OFF Start, Flicker ON Start

Time Range

0.1 s → 10min

Number of Contacts

4

Number of Timer Functions

Multi Function

Contact Configuration

DPDT

Time Increment

Minutes, Seconds

Maximum Current

5A

Maximum Voltage

250V ac

Terminal Type

Push In

Switch Configuration

DPDT

Power Supply

External

Width

56.6mm

Series

H3YN

Length

21.5mm

Depth

28mm

Maximum Operating Temperature

+55°C

Minimum Operating Temperature

-10°C

Contact Material

Silver

COO (Country of Origin):
CN

Omron H3YN Series Timer Relay, 200 to 230 V AC Supply Voltage, 8 Contacts - H3YN-2-B AC200-230


This timer relay is a crucial device in automation and control applications, available in a compact design with a supply voltage ranging from 200 to 230 V AC. With dimensions of 56.6mm in width, 28mm in depth, and 21.5mm in height, it is engineered for panel mounting and offers versatile functionality tailored to the needs of the industrial sector.

Features & Benefits


• Supports delay ON and flicker OFF/ON start modes for flexibility
• External power supply requirement simplifies installation in various settings
• Designed with a plug-in terminal type for easy connectivity
• Complies with EMC standards for reliable operation in industrial environments

Applications


• Used for machine cycle control in manufacturing automation
• Effective in HVAC systems for time-based operation schedules
• Integrated with alarm systems for delay functions
• Used for lighting control in commercial premises
• Enhances process automation in industrial machinery

What voltage range can it operate on?


It operates effectively within a supply voltage range of 200 to 230 V AC, ensuring compatibility with various industrial power systems.

How does the time setting work for different applications?


The timer relay features a time range from 0.1 seconds to 10 minutes, adjustable easily via a transparent knob, suitable for both precise timing and longer delays.

Can it handle multiple contacts at once?


Yes, the timer relay is equipped with 8 contacts configured as DPDT, capable of managing multiple outputs simultaneously for complex control tasks.

Is it easy to install in existing systems?


The relay's plug-in terminal design allows for straightforward installation into existing control panels, minimising downtime during upgrades.

What are the maximum ratings for voltage and current?


It has a maximum voltage rating of 250V AC and a maximum current rating of 5A, suitable for a variety of loads in industrial applications.
