MPN

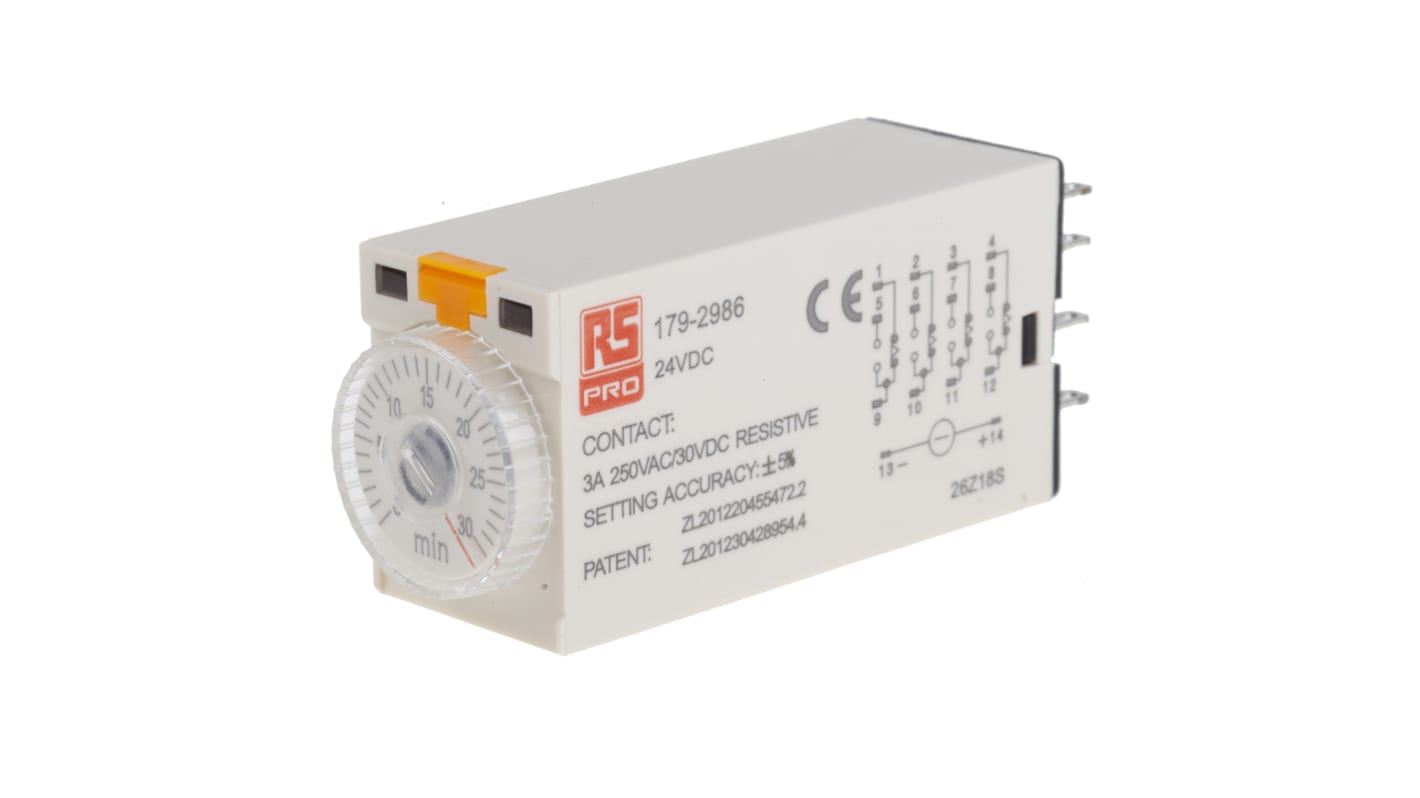

RS PRO Plug In Timer Relay, 24V dc, 4-Contact, 1 → 30min, 1-Function, 4PDT

RS Stock No.:: 179-2986
Brand:: RS PRO

RS PRO Plug In Timer Relay, 24V dc, 4-Contact, 1 → 30min, 1-Function, 4PDT

Subtotal (1 unit)*

THB1,579.21

(exc. VAT)

THB1,689.75

(inc. VAT)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้

Units	Per unit
1 +	THB1,579.21

*price indicative

RS Stock No.:: 179-2986
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Supply Voltage	24V dc
	Mounting Type	Plug In
	Mode of Operation	ON Delay
	Time Range	1 → 30min
	Number of Contacts	4
	Number of Timer Functions	Single
	Contact Configuration	4PDT
	Time Increment	Minutes
	Maximum Current	3A
	Maximum Voltage	24V dc
	Terminal Type	14-Pin Connector
	Switch Configuration	4PDT
	Width	21.5mm
	Depth	2.8mm
	Maximum Operating Temperature	+55°C
	Length	53mm
	Minimum Operating Temperature	-10°C
	Time Delay	0.2s

	Select all
	Brand RS PRO
	Supply Voltage 24V dc
	Mounting Type Plug In
	Mode of Operation ON Delay
	Time Range 1 → 30min
	Number of Contacts 4
	Number of Timer Functions Single
	Contact Configuration 4PDT
	Time Increment Minutes
	Maximum Current 3A
	Maximum Voltage 24V dc
	Terminal Type 14-Pin Connector
	Switch Configuration 4PDT
	Width 21.5mm
	Depth 2.8mm
	Maximum Operating Temperature +55°C
	Length 53mm
	Minimum Operating Temperature -10°C
	Time Delay 0.2s

COO (Country of Origin):: CN

14 pin plug-in
Analogue Dial Display
On Delay Timer

Note

Suitable sockets for the 8-pin and 14-pin timer relays from this series are: 121-7802 or 121-7803 (Note: The sockets are supplied with a metal clip.)

RS PRO Plug In Timer Relay, 24V dc, 4-Contact, 1 → 30min, 1-Function, 4PDT
