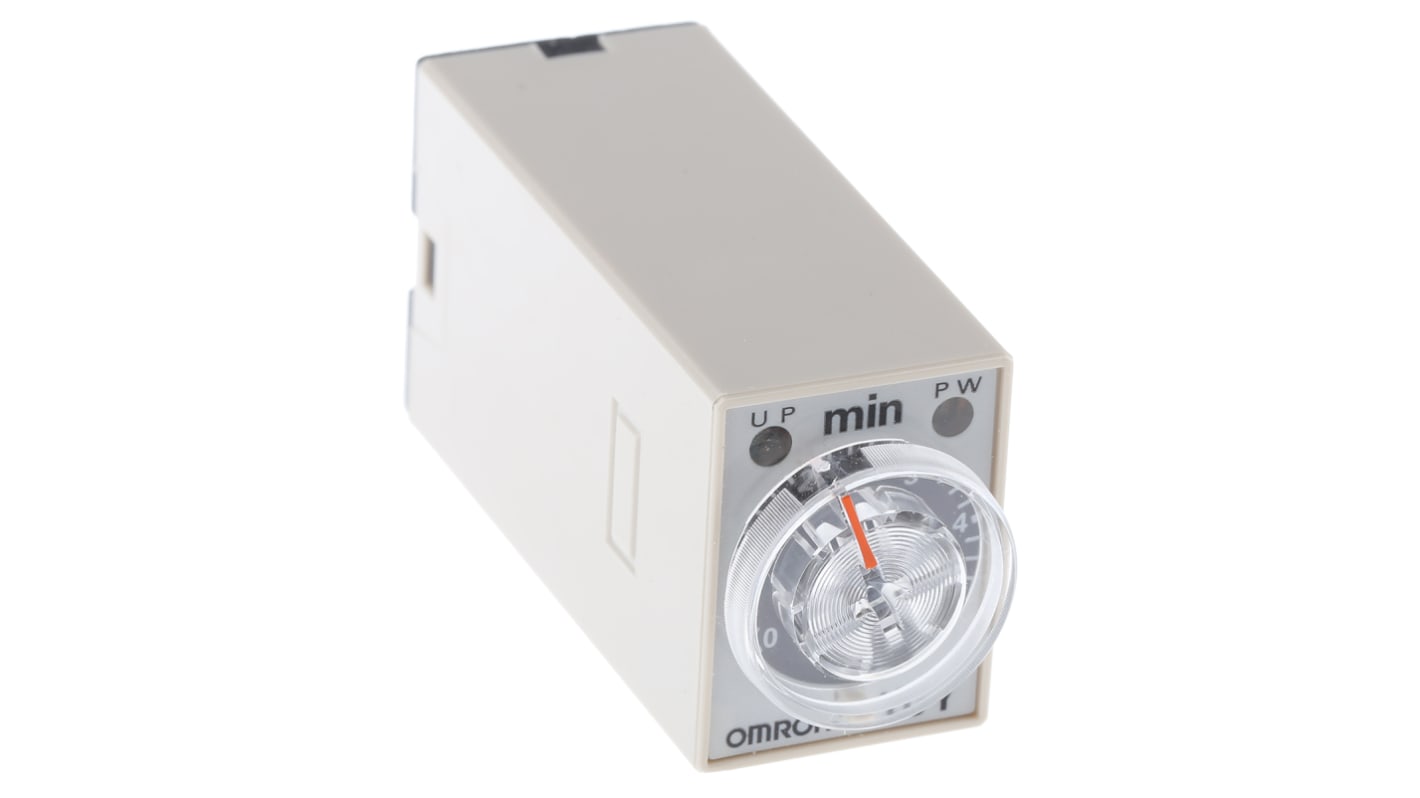

Omron H3Y-4 Series DIN Rail Timer Relay, 4-Contact, 24 V dc 24V ac, 0.2 to 5 min, 1-Function, 4PDT Switch Configuration
- RS Stock No.:
- 340-437
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3Y-4 DC24 5M
- ผู้ผลิต:
- Omron
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB2,635.31
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,819.78
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 1 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 12 ชิ้นจะส่งได้หลังจากวันที่ 14 พฤษภาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 24 | THB2,635.31 |
| 25 - 49 | THB2,542.96 |
| 50 + | THB2,448.06 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 340-437
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3Y-4 DC24 5M
- ผู้ผลิต:
- Omron
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Omron | |
| Product Type | Timer Relay | |
| Function | Timer | |
| Mount Type | DIN Rail | |
| Time Range | 0.2 to 5 min | |
| Number of Contacts | 4 | |
| Switching Voltage | 250V | |
| Number of Timer Functions | 1 | |
| Contact Configuration | 4PDT | |
| IP Rating | IP40 | |
| Supply DC Voltage | 24 V dc | |
| Supply AC Voltage | 24V ac | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Terminal Type | Plug-In | |
| Standards/Approvals | UL (File No. E41515), EN50082-2, CSA (File No. LR22310), EN50081-2 | |
| Length | 28mm | |
| Height | 63mm | |
| Width | 21.5mm | |
| Series | H3Y-4 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Omron | ||
Product Type Timer Relay | ||
Function Timer | ||
Mount Type DIN Rail | ||
Time Range 0.2 to 5 min | ||
Number of Contacts 4 | ||
Switching Voltage 250V | ||
Number of Timer Functions 1 | ||
Contact Configuration 4PDT | ||
IP Rating IP40 | ||
Supply DC Voltage 24 V dc | ||
Supply AC Voltage 24V ac | ||
Contact Current 5A | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Terminal Type Plug-In | ||
Standards/Approvals UL (File No. E41515), EN50082-2, CSA (File No. LR22310), EN50081-2 | ||
Length 28mm | ||
Height 63mm | ||
Width 21.5mm | ||
Series H3Y-4 | ||
สถานะRoHS: ได้รับการยกเว้น
Omron H3Y-4 Series Timer Relay, 24V Supply Voltage, 0.2 to 5min Time Range - H3Y-4 DC24 5M
This timer relay provides adjustable delay-on-operate timing for control and automation panels, supplying a single timing function with a 0.2–5 min range. It is intended for DIN-rail mounted installations where a compact, plug-in timing device is required to control multiple circuits.
Features and Benefits:
• Four changeover contacts deliver simultaneous control of four circuits
• 5A contact rating supports moderate load switching up to 250V
• Accepts 24V AC or 24V DC supply for flexible system design
• Plug-in terminals enable Rapid replacement and straightforward wiring
• IP40 enclosure rating suited to protected indoor control cabinets
• Certified to UL and CSA standards for regulated industrial use
• 5A contact rating supports moderate load switching up to 250V
• Accepts 24V AC or 24V DC supply for flexible system design
• Plug-in terminals enable Rapid replacement and straightforward wiring
• IP40 enclosure rating suited to protected indoor control cabinets
• Certified to UL and CSA standards for regulated industrial use
Applications
• Suitable for sequencing motors and contactors in control panels
• Ideal for time-delay control of industrial solenoids and valves
• Used with PLCs to provide external timer functions in automation racks
• Can be used for staged lighting or heating circuits in plant rooms
• Ideal for time-delay control of industrial solenoids and valves
• Used with PLCs to provide external timer functions in automation racks
• Can be used for staged lighting or heating circuits in plant rooms
How many independent contact circuits can I switch with this unit?
It provides four changeover contacts, enabling control of four separate circuits from a single timing operation.
What ambient temperature range can it operate within?
The device is specified for operation between -10 °C and 50 °C, suitable for typical indoor industrial environments.
What mounting method is required for installation?
It is designed for DIN-rail mounting and uses plug-in terminals to simplify fitting and removal.
What standards approvals are associated with the unit?
It carries approvals from UL (File No. E41515) and CSA (File No. LR22310) and meets EN 50081-2 and EN 50082-2 electromagnetic standards.
Approvals
UL, CSA
Standards
EN 50081-2, EN50082-2, VDE0435/P2021, VDE0110
