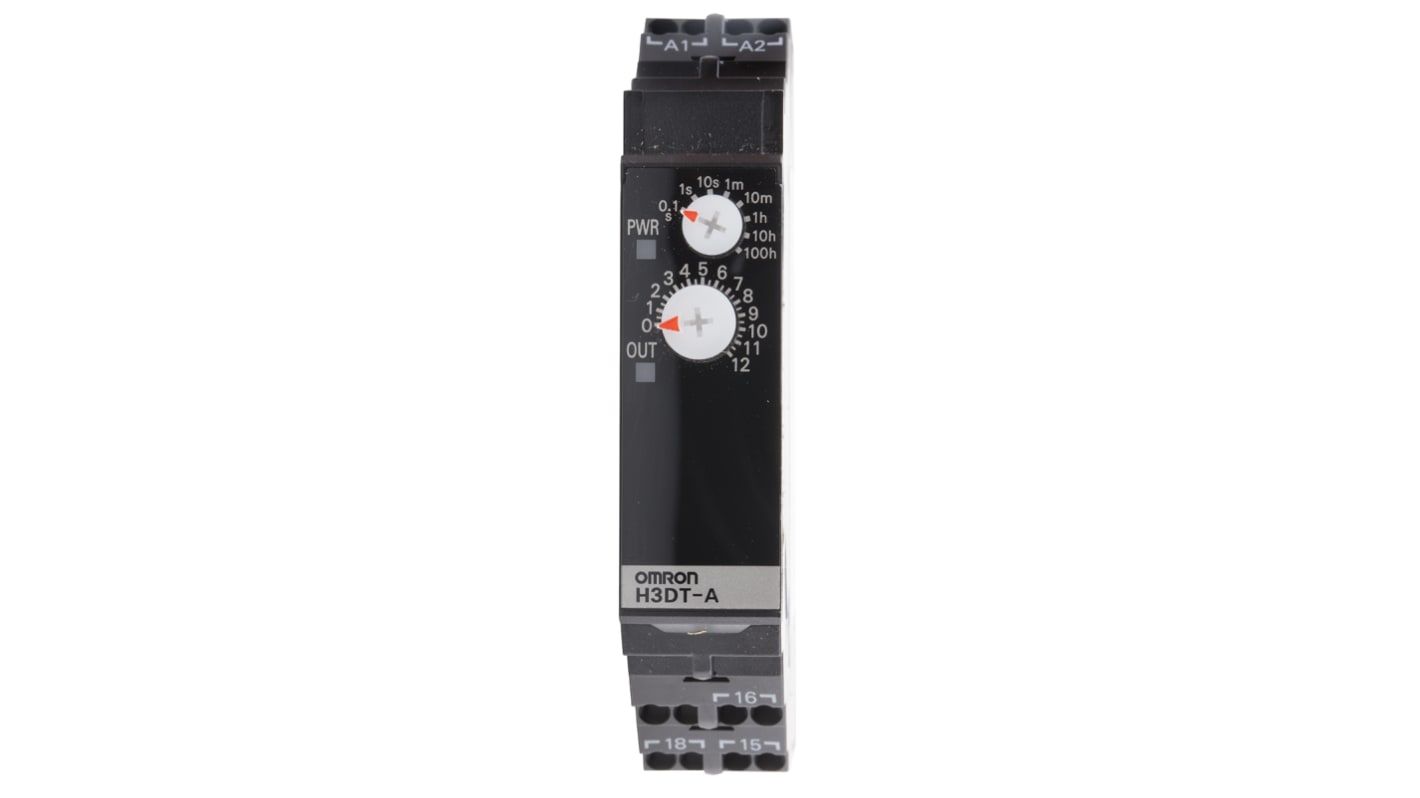

Omron H3DT Series DIN Rail Timer Relay, 2-Contact, 240 V dc 240 V ac, 24 V ac, 0.1 s to 1200 h, 1-Function, SPDT Switch

RS Stock No.:: 106-6238
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3DT-A1 24-240VAC/DC
ผู้ผลิต:: Omron

Omron H3DT Series DIN Rail Timer Relay, 2-Contact, 240 V dc 240 V ac, 24 V ac, 0.1 s to 1200 h, 1-Function, SPDT Switch

ยอดรวมย่อย (1 ชิ้น)*

THB2,280.58

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,440.22

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

เพิ่มอีก 30 ชิ้นจะส่งได้หลังจากวันที่ 23 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB2,280.58

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 106-6238
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3DT-A1 24-240VAC/DC
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Product Type	Timer Relay
	Mount Type	DIN Rail
	Function	Timer, Offset Double Ring End
	Time Range	0.1 s to 1200 h
	Number of Contacts	2
	Switching Voltage	250 V
	Number of Timer Functions	1
	Contact Configuration	SPDT
	IP Rating	IP30, IP20
	Supply DC Voltage	240 V dc
	Contact Current	5A
	Minimum Operating Temperature	-20°C
	Supply AC Voltage	240 V ac, 24 V ac
	Maximum Operating Temperature	60°C
	Terminal Type	Push-in
	Height	100mm
	Length	17.5mm
	Width	90 mm
	Standards/Approvals	RoHS, cULus:UL 508/CSA C22.2 No. 14, CCC, DNV GL, EN 61812-1, IEC 60664-1 4 kV/2, LR
	Series	H3DT

	เลือกทั้งหมด
	Brand Omron
	Product Type Timer Relay
	Mount Type DIN Rail
	Function Timer, Offset Double Ring End
	Time Range 0.1 s to 1200 h
	Number of Contacts 2
	Switching Voltage 250 V
	Number of Timer Functions 1
	Contact Configuration SPDT
	IP Rating IP30, IP20
	Supply DC Voltage 240 V dc
	Contact Current 5A
	Minimum Operating Temperature -20°C
	Supply AC Voltage 240 V ac, 24 V ac
	Maximum Operating Temperature 60°C
	Terminal Type Push-in
	Height 100mm
	Length 17.5mm
	Width 90 mm
	Standards/Approvals RoHS, cULus:UL 508/CSA C22.2 No. 14, CCC, DNV GL, EN 61812-1, IEC 60664-1 4 kV/2, LR
	Series H3DT

Datasheet

COO (Country of Origin):: CN

Omron H3DT Series Timer Relay, 24 to 240 V AC/DC Supply Voltage, 5A Maximum Current - H3DT-A1

This timer relay is designed for automation and control applications within the electrical industry. Offering a supply voltage range of 24 to 240V AC/DC, this device is ideal for a variety of environments. With compact dimensions of 90mm in width, 100mm in depth, and a length of 17.5mm, it is easily mountable on DIN rails. This product operates in an ON delay mode, ensuring precise timing control for industrial processes.

Features & Benefits

• Single timer function simplifies operational setup

• SPDT contact configuration enables versatile connections

• Time range from 0.1s to 1200h allows for flexible timing

• Push-in terminal type ensures rapid and secure installation

• Operates effectively within a temperature range of -20°C to +60°C

• Maximum current rating of 5A supports many electrical applications

Applications

• Utilised in industrial machinery for timing control

• Suitable for HVAC systems to manage operational cycles

• Integrated into process control systems for precise timing

• Employed in lighting control for energy saving

• Ideal for automation tasks in manufacturing lines

What is the typical current rating that can be handled?

The maximum current that can be accommodated is 5A, making it suitable for various electrical applications.

How does the device maintain performance across temperature extremes?

It operates reliably within a temperature spectrum of -20°C to +60°C, allowing it to function in diverse environments.

What installation method is recommended for optimal performance?

The push-in terminal type allows for straightforward connections, promoting ease during installation on DIN rails.

H3DT-A On Delay Timer

Solid-sate timer delay relays with push in plus technology are used for in-panel applications. They are ideal in space saving applications due to their slim design and help reduce work in control panels. The timers reduce power consumption by up to 60% to help reduce heat generation in control panels.

• Single mode function (ON delay)

• Slim design, 17.5 mm width

• Fast wiring due to push in plug technology

• Relay output

• 24-240 V ac/dc supply voltage

• DIN Rail mounting
