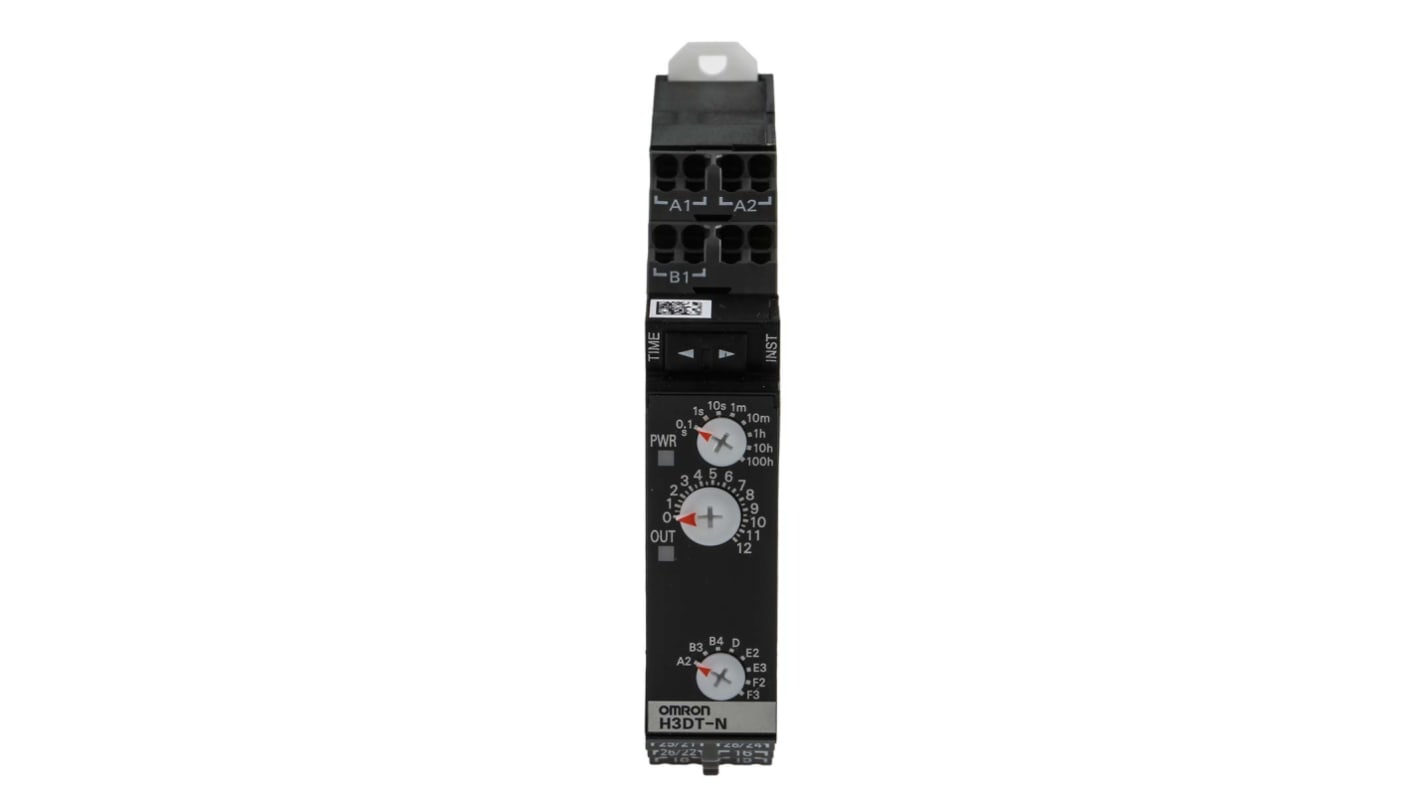

Omron H3DT Series DIN Rail Timer Relay, 4-Contact, 240 V dc 24V ac, 240 V ac, 0.1 s to 100 h, Multifunction-Function,

RS Stock No.:: 106-6236
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3DT-N2 24-240VAC/DC
ผู้ผลิต:: Omron

Omron H3DT Series DIN Rail Timer Relay, 4-Contact, 240 V dc 24V ac, 240 V ac, 0.1 s to 100 h, Multifunction-Function,

ยอดรวมย่อย (1 ชิ้น)*

THB4,294.01

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB4,594.59

(รวมภาษีมูลค่าเพิ่ม)

ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง

ชิ้น	ต่อหน่วย
1 +	THB4,294.01

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 106-6236
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H3DT-N2 24-240VAC/DC
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Product Type	Timer Relay
	Function	Timer, Offset Double Ring End
	Mount Type	DIN Rail
	Time Range	0.1 s to 100 h
	Number of Contacts	4
	Switching Voltage	250V ac
	Number of Timer Functions	Multifunction
	Contact Configuration	DPDT
	IP Rating	IP20, IP30
	Minimum Operating Temperature	-20°C
	Contact Current	5A
	Supply AC Voltage	24, 240V ac
	Timing Adjustment	Dial
	Supply DC Voltage	240 V dc
	Maximum Operating Temperature	60°C
	Terminal Type	Screw
	Width	90mm
	Length	17.5mm
	Standards/Approvals	DNV GL, cULus:UL 508/CSA C22.2 No. 14, EN 61812-1, CCC, IEC 60664-1, LR
	Height	100mm
	Series	H3DT

	เลือกทั้งหมด
	Brand Omron
	Product Type Timer Relay
	Function Timer, Offset Double Ring End
	Mount Type DIN Rail
	Time Range 0.1 s to 100 h
	Number of Contacts 4
	Switching Voltage 250V ac
	Number of Timer Functions Multifunction
	Contact Configuration DPDT
	IP Rating IP20, IP30
	Minimum Operating Temperature -20°C
	Contact Current 5A
	Supply AC Voltage 24, 240V ac
	Timing Adjustment Dial
	Supply DC Voltage 240 V dc
	Maximum Operating Temperature 60°C
	Terminal Type Screw
	Width 90mm
	Length 17.5mm
	Standards/Approvals DNV GL, cULus:UL 508/CSA C22.2 No. 14, EN 61812-1, CCC, IEC 60664-1, LR
	Height 100mm
	Series H3DT

COO (Country of Origin):: CN

Omron H3DT Series Timer Relay, DPDT Contact Configuration, 0.1s to 100h Time Range - H3DT-N2

This timer relay is designed for various timing applications, particularly in industrial automation. It plays a crucial role in controlling operations with its multi-function capabilities, allowing users to set accurate timing sequences that enhance efficiency in automated systems.

Features & Benefits

• Operates within a voltage range of 24V to 240V AC/DC

• Offers a time range from 0.1 seconds to 100 hours

• Incorporates multiple modes, including Delay OFF and Delay ON

• Designed for straightforward installation on DIN rails

• Features a DPDT configuration for versatile connectivity

• Maximum current capacity of 5A ensures reliable performance

Applications

• Utilised in control circuits for machinery and equipment

• Employed for timed operations in manufacturing processes

• Integrated into automation systems for precise control

• Suitable for requiring flickering or interval timing

• Used in electrical control panels to enhance functionality

What is the best way to connect this device?

It can be securely mounted on DIN rails for stable installation.

How do I adjust the timing settings?

Timing can be configured easily via its intuitive interface, enabling quick adjustments.

What types of loads can it handle?

It can manage loads up to 5A, making it suitable for various industrial applications.

Is it compatible with different types of electrical systems?

Yes, it operates with both AC and DC systems, providing flexibility for diverse configurations.
