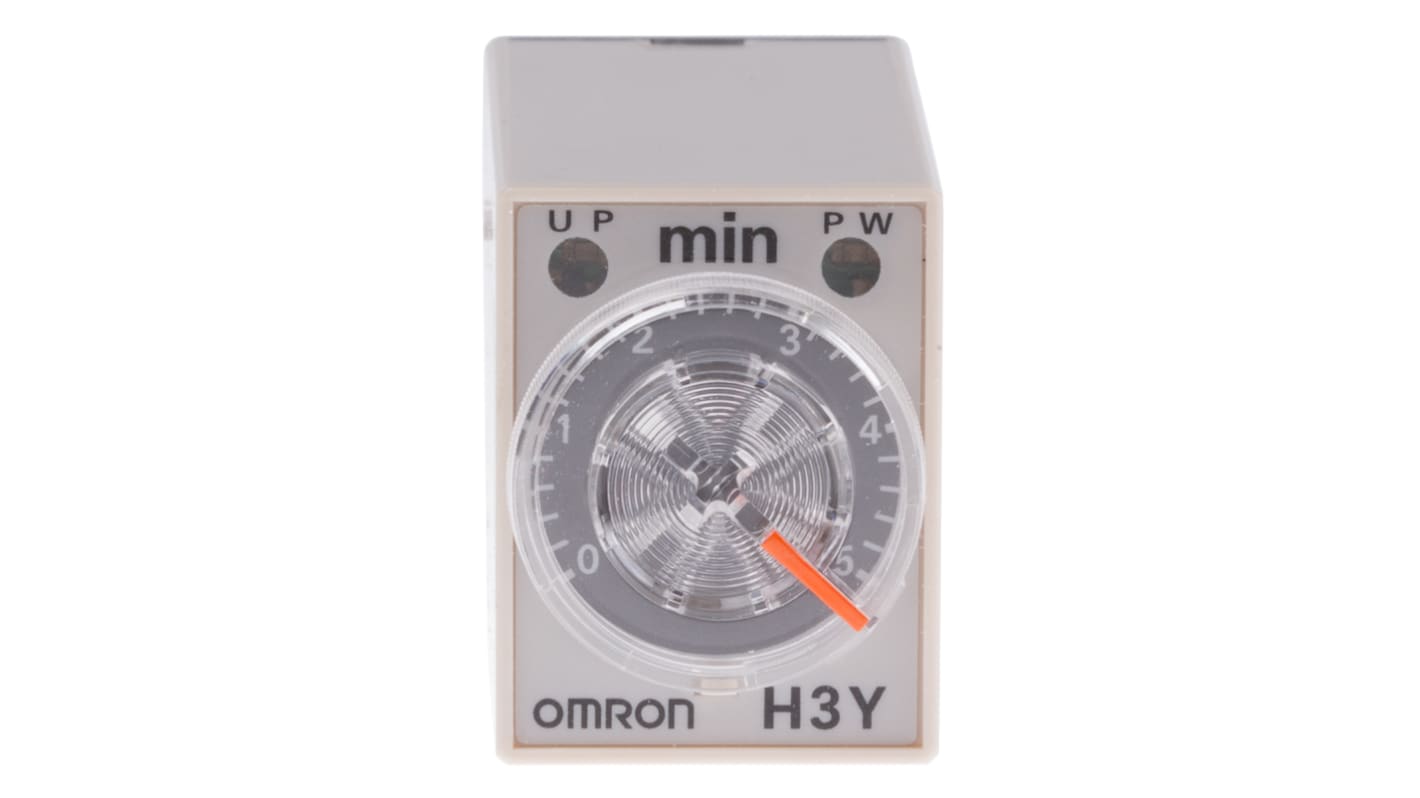

Omron H3Y-4 Series DIN Rail Timer Relay, 4-Contact, 125 V dc 24V ac, 0.2 to 5 min, 1-Function, 4PDT Switch Configuration
- RS Stock No.:
- 340-500
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3Y-4 AC24 5M
- ผู้ผลิต:
- Omron
มีส่วนลดเมื่อซื้อจำนวนมาก
ดูตัวเลือกการกำหนดราคาในการซื้อปริมาณมากยอดรวมย่อย (1 ชิ้น)*
THB2,764.83
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,958.37
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 8 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 24 | THB2,764.83 |
| 25 - 49 | THB2,654.23 |
| 50 + | THB2,543.64 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 340-500
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- H3Y-4 AC24 5M
- ผู้ผลิต:
- Omron
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Omron | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | Multifunction | |
| Time Range | 0.2 to 5 min | |
| Number of Contacts | 4 | |
| Switching Voltage | 250, 30V ac | |
| Number of Timer Functions | 1 | |
| Contact Configuration | 4PDT | |
| IP Rating | IP40 | |
| Supply AC Voltage | 24V ac | |
| Contact Current | 5A | |
| Supply DC Voltage | 125 V dc | |
| Minimum Operating Temperature | -10°C | |
| Terminal Type | Plug-In | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CSA C22.2 No. 14, Lloyds, IEC 60664-1, EN 61812-1, UL 508, CE, CCC:GB/T 14048.5 | |
| Width | 21.5mm | |
| Height | 63mm | |
| Length | 28mm | |
| Series | H3Y-4 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Omron | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function Multifunction | ||
Time Range 0.2 to 5 min | ||
Number of Contacts 4 | ||
Switching Voltage 250, 30V ac | ||
Number of Timer Functions 1 | ||
Contact Configuration 4PDT | ||
IP Rating IP40 | ||
Supply AC Voltage 24V ac | ||
Contact Current 5A | ||
Supply DC Voltage 125 V dc | ||
Minimum Operating Temperature -10°C | ||
Terminal Type Plug-In | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CSA C22.2 No. 14, Lloyds, IEC 60664-1, EN 61812-1, UL 508, CE, CCC:GB/T 14048.5 | ||
Width 21.5mm | ||
Height 63mm | ||
Length 28mm | ||
Series H3Y-4 | ||
สถานะRoHS: ได้รับการยกเว้น
Omron H3Y-4 Series Timer Relay, 0.2-5min Time Range, 24V AC Supply Voltage - H3Y-4 AC24 5M
This timer relay provides configurable time-delay control for automation and control-panel tasks, operating from an AC supply and delivering timed switching through multiple changeover contacts. It is intended for DIN rail mounting in industrial cabinets and is suited to machinery control and process sequencing where a compact, plug-in timing device is required.
Features and Benefits:
• 0.2-5min range delivers short to moderate delay timings • Four changeover contacts allow complex control logic • 5A contact rating supports common control loads • 24V AC supply reduces interfacing complexity in AC systems • Plug-in terminals enable quick replacement and maintenance
Applications
• Suitable for sequencing motors and actuators in production lines • Ideal for adding timed control to conveyor systems • Used for delay functions in control panels for HVAC equipment • Can be used for interlock timing in machine safety circuits
What switching voltages can it handle for outputs?
Outputs are rated to switch up to 250V AC and 30V DC, suitable for a variety of control and signal circuits.
How many distinct timer functions are selectable?
The unit offers a single timer function configurable across its time range for straightforward delay applications.
What environmental operating limits should be observed?
The device operates between -10°C and 55°C and has an enclosure rating providing Basic protection against solid objects but not against water.
What approvals or standards does it conform to for industrial use?
It meets an array of international electrical and safety standards including IEC and UL classifications as well as recognised national approvals.
Approvals
UL, CSA
Standards
EN 50081-2, EN50082-2, VDE0435/P2021, VDE0110
