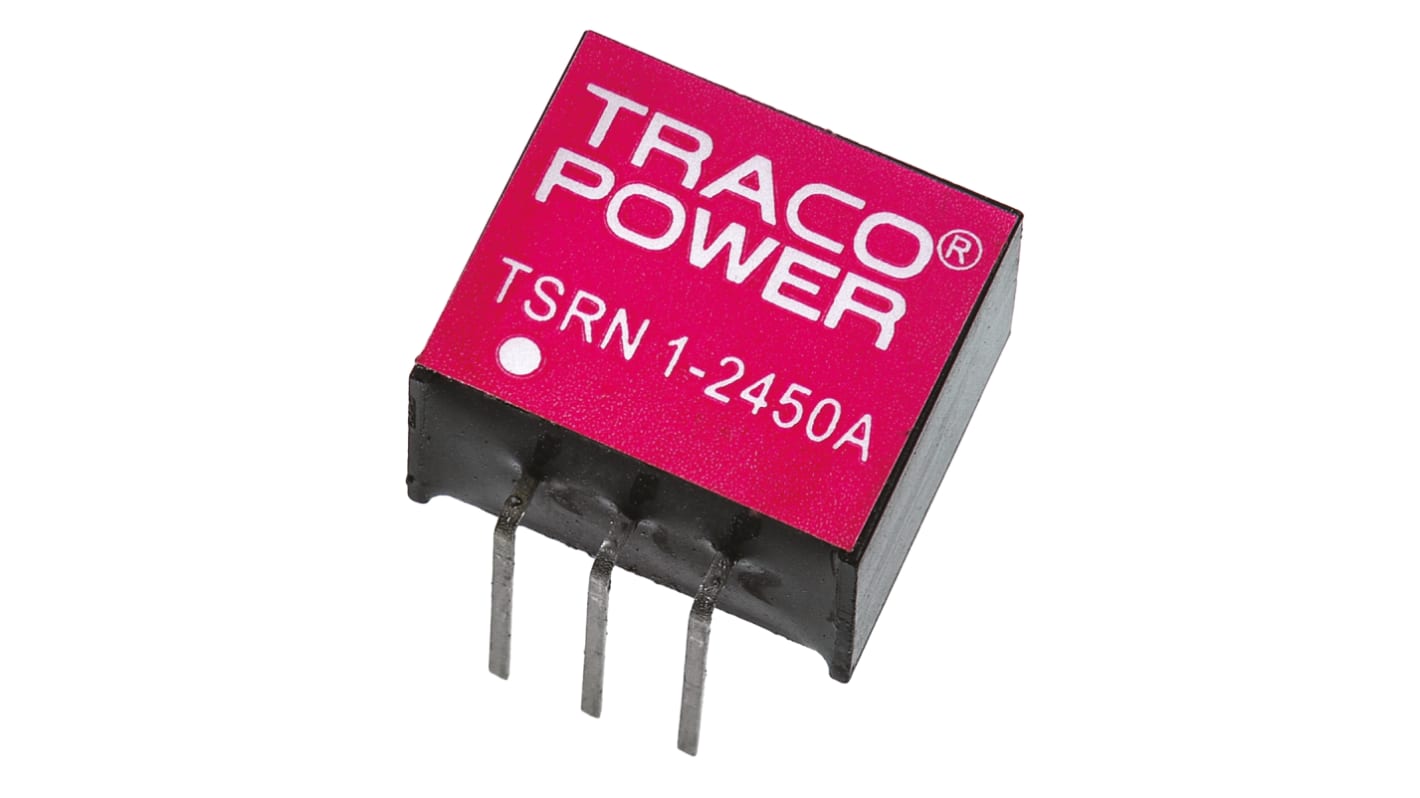

TRACOPOWER Switching Regulator, Through Hole, 5V dc Output Voltage, -7 → -32V dc Input Voltage, 1A Output

RS Stock No.:: 755-3438
Distrelec หมายเลขบทความ:: 300-80-913
หมายเลขชิ้นส่วนของผู้ผลิต:: TSRN 1-2450A
ผู้ผลิต:: TRACOPOWER

TRACOPOWER Switching Regulator, Through Hole, 5V dc Output Voltage, -7 → -32V dc Input Voltage, 1A Output

มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB526.70

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB563.57

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีสต็อกจำกัด

เพิ่มอีก 9 ชิ้นที่เหลือจะส่งจากวันที่ 15 ธันวาคม 2568
เพิ่มอีก 59 ชิ้นที่เหลือจะส่งจากวันที่ 22 ธันวาคม 2568

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 - 2	THB526.70
3 - 4	THB513.53
5 +	THB505.65

*price indicative

RS Stock No.:: 755-3438
Distrelec หมายเลขบทความ:: 300-80-913
หมายเลขชิ้นส่วนของผู้ผลิต:: TSRN 1-2450A
ผู้ผลิต:: TRACOPOWER

ข้อมูลทางเทคนิค

Technical data sheets

Legislation and Compliance

Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	TRACOPOWER
	Output Voltage	5 V dc, -5 V dc, -5 V dc, -5 V dcV dc
	Output Current	1A
	Input Voltage	-7 → -32V dc
	Mounting Type	Through Hole
	Number of Outputs	1
	Package	SIP 3
	Efficiency	92%
	Ripple And Noise	75mV Pk-Pk
	Maximum Temperature	+85°C
	Minimum Temperature	-40°C
	Series	TSRN 1
	Line Regulation	±0.2%
	Maximum Input Current	3mA
	Standards Met	CE
	Depth	10.2mm
	Switching Frequency Range	464 → 696kHz
	Protection Features	Over Temperature Protection, Short Circuit Protection
	Application	Energy Sensitive
	Weight	1.9kg
	Length	11.7mm
	MTBF	20000000h
	Special Features	3-Years Warranty
	Load Regulation	±0.4%
	Power Signal Conversion Type	DC-DC
	Width	7.5mm

	เลือกทั้งหมด
	Brand TRACOPOWER
	Output Voltage 5 V dc, -5 V dc, -5 V dc, -5 V dcV dc
	Output Current 1A
	Input Voltage -7 → -32V dc
	Mounting Type Through Hole
	Number of Outputs 1
	Package SIP 3
	Efficiency 92%
	Ripple And Noise 75mV Pk-Pk
	Maximum Temperature +85°C
	Minimum Temperature -40°C
	Series TSRN 1
	Line Regulation ±0.2%
	Maximum Input Current 3mA
	Standards Met CE
	Depth 10.2mm
	Switching Frequency Range 464 → 696kHz
	Protection Features Over Temperature Protection, Short Circuit Protection
	Application Energy Sensitive
	Weight 1.9kg
	Length 11.7mm
	MTBF 20000000h
	Special Features 3-Years Warranty
	Load Regulation ±0.4%
	Power Signal Conversion Type DC-DC
	Width 7.5mm

ล็อกอินเพื่อดูโมเดล CAD

COO (Country of Origin):: TW

Traco 1A SIP Step Down Switching Regulator - TSRN-1 Series

TSRN-1 Series 1A step-down switching regulators with a wide input voltage range of up to 42 Vdc and a high efficiency of up to 95% which allows full load operation without the need for a heatsink or forced air cooling. These TSRN-1 Series 1A step-down switching regulators are suitable for positive and negative output circuits (please refer to table for additional data). Excellent line and load regulation and a low standby current makes these TSRN-1 switching regulators ideal for use in energy sensitive applications.

Input voltage range up to 42 VDC
Built in filter capacitors
No heat-sink required
Over-temperature and short circuit protection
Low standby current: 1 mA for <= 3.3 Vdc output models, 3 mA for >= 5.0 Vdc ouput models
SIP package fits existing TO-220 footprint
Pin compatible with LMxx linear regulators

Note

Part numbers: TSRN 1-xxxx have straight pins
Part numbers: TSRN 1-xxxxA have angular pins
MTBF: MIL-HDBK-217 @ +25°C
Derating: 2.7 %/K above +70°C
For input voltages higher then 36 Vdc an input capacitor 22 μF/ 50 V is required

Traco Power Switching Regulator, 470μF Maximum Capacitive Load, 92% Efficiency - TSRN 1 Series - TSRN 1-2450A

Pull the plug on erratic power delivery to your PCB-linked devices with this switching regulator from Traco Power. It steps down input signals varying between 6.5 and 42V DC to deliver a stable 5V DC that's safe for low-voltage components such as LED lights. The unit also has an integrated capacitor that cleans out ripple from the supply, giving you noiseless signal transmission. Plastic housing offers impact protection to the workings, as well as effective insulation to shield you from electric shocks during handling.

Features & Benefits

• Conforms to UL 94-V0 standards, meaning it stops burning in 10 seconds or less in the event of a fire
• Mean time between failures of more than 20 million operating cycles assures you of long-term reliability
• Performs optimally in a temperature range between -40°C and +85°C, making it suitable for hazardous locations

Applications

• HVAC systems
• Security and surveillance devices
• Research labs

How do I mount this switching regulator on my PCB?

The unit is designed with pins for vertical through-hole mounting and soldering onto your circuit board. This method achieves a permanent link to your network that resists vibration.
