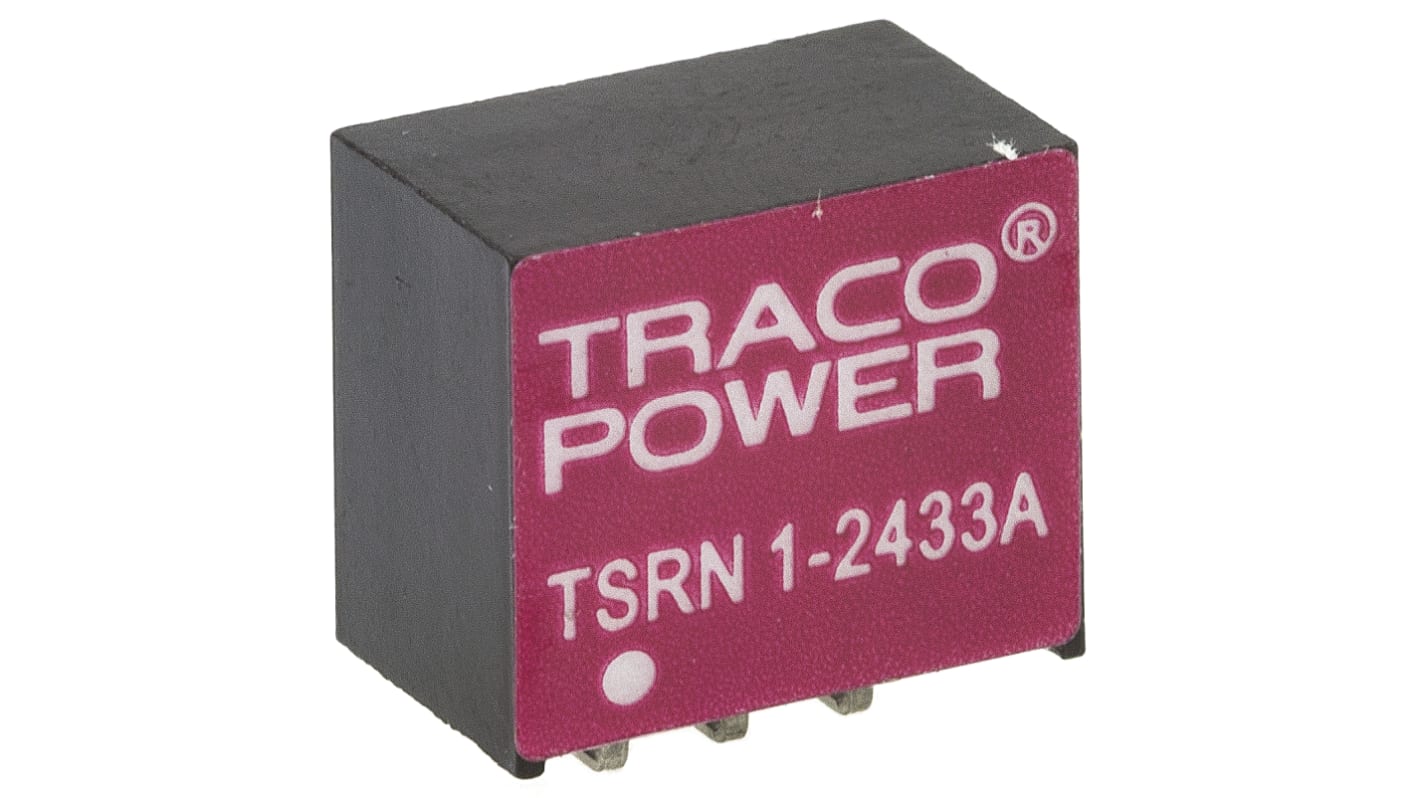

TRACOPOWER Switching Regulator, Through Hole, ±3.3V dc Output Voltage, 4.6 → 32 V dc, 4.6 → 42 V dc Input

View all Switching Regulators
Bulk discount available

Subtotal (1 unit)*

THB442.15

(exc. VAT)

THB473.10

(inc. VAT)

Add to Basket
Select or type quantity
มีสต็อกจำกัด
  • เพิ่มอีก 4 ชิ้นที่เหลือจะส่งจากวันที่ 15 ธันวาคม 2568
  • เพิ่มอีก 9 ชิ้นที่เหลือจะส่งจากวันที่ 22 ธันวาคม 2568
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
Units
Per unit
1 - 2THB442.15
3 - 4THB431.08
5 +THB424.46

*price indicative

RS Stock No.:
755-3429
Mfr. Part No.:
TSRN 1-2433A
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

±3.3V dc

Output Current

1 A, 600 mA

Input Voltage

4.6 → 32 V dc, 4.6 → 42 V dc

Mounting Type

Through Hole

Number of Outputs

1

Package

SIP

Efficiency

77%, 79%

Ripple And Noise

50mV Pk-Pk

Maximum Temperature

+85°C

Minimum Temperature

-40°C

Series

TSRN 1

Line Regulation

±0.2%

Weight

1.9g

Protection Features

Short Circuit Protection

Width

7.5mm

Length

11.7mm

MTBF

6000000h

Load Regulation

±0.4%

Depth

10.2mm

COO (Country of Origin):
TW

Traco 1A SIP Step Down Switching Regulator - TSRN-1 Series


TSRN-1 Series 1A step-down switching regulators with a wide input voltage range of up to 42 Vdc and a high efficiency of up to 95% which allows full load operation without the need for a heatsink or forced air cooling. These TSRN-1 Series 1A step-down switching regulators are suitable for positive and negative output circuits (please refer to table for additional data). Excellent line and load regulation and a low standby current makes these TSRN-1 switching regulators ideal for use in energy sensitive applications.

Input voltage range up to 42 VDC
Built in filter capacitors
No heat-sink required
Over-temperature and short circuit protection
Low standby current: 1 mA for <= 3.3 Vdc output models, 3 mA for >= 5.0 Vdc ouput models
SIP package fits existing TO-220 footprint
Pin compatible with LMxx linear regulators

Note

Part numbers: TSRN 1-xxxx have straight pins
Part numbers: TSRN 1-xxxxA have angular pins
MTBF: MIL-HDBK-217 @ +25°C
Derating: 2.7 %/K above +70°C
For input voltages higher then 36 Vdc an input capacitor 22 μF/ 50 V is required
