Werma KombiSIGN 72 Series Yellow Blinking, Steady Effect Beacon, LED Bulb 24V, AC/DC, IP65
- RS Stock No.:
- 184-5128
- Distrelec หมายเลขบทความ:
- 300-87-827
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 647.310.75
- ผู้ผลิต:
- Werma
ยอดรวมย่อย (1 ชิ้น)*
THB1,846.55
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,975.81
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 255 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB1,846.55 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 184-5128
- Distrelec หมายเลขบทความ:
- 300-87-827
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 647.310.75
- ผู้ผลิต:
- Werma
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Werma | |
| Product Type | Beacon | |
| Series | KombiSIGN 72 | |
| Minimum Sound Level | 95dB | |
| Component Type | Twinlight | |
| Multifunction | Yes | |
| Current Type | AC/DC | |
| Sounder Type | Electronic | |
| Light Effect | Blinking, Steady | |
| Current Consumption | 80mA | |
| Mount Type | Base | |
| Lens Colour | Yellow | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Sound Level | 105dB | |
| Maximum Operating Temperature | 60°C | |
| Height | 66mm | |
| Standards/Approvals | CE, cULus, UKCA | |
| Hazardous Area Certification | No | |
| Base Diameter | 70mm | |
| IP Rating | IP65 | |
| Housing Colour | Yellow | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Werma | ||
Product Type Beacon | ||
Series KombiSIGN 72 | ||
Minimum Sound Level 95dB | ||
Component Type Twinlight | ||
Multifunction Yes | ||
Current Type AC/DC | ||
Sounder Type Electronic | ||
Light Effect Blinking, Steady | ||
Current Consumption 80mA | ||
Mount Type Base | ||
Lens Colour Yellow | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -30°C | ||
Maximum Sound Level 105dB | ||
Maximum Operating Temperature 60°C | ||
Height 66mm | ||
Standards/Approvals CE, cULus, UKCA | ||
Hazardous Area Certification No | ||
Base Diameter 70mm | ||
IP Rating IP65 | ||
Housing Colour Yellow | ||
- COO (Country of Origin):
- DE

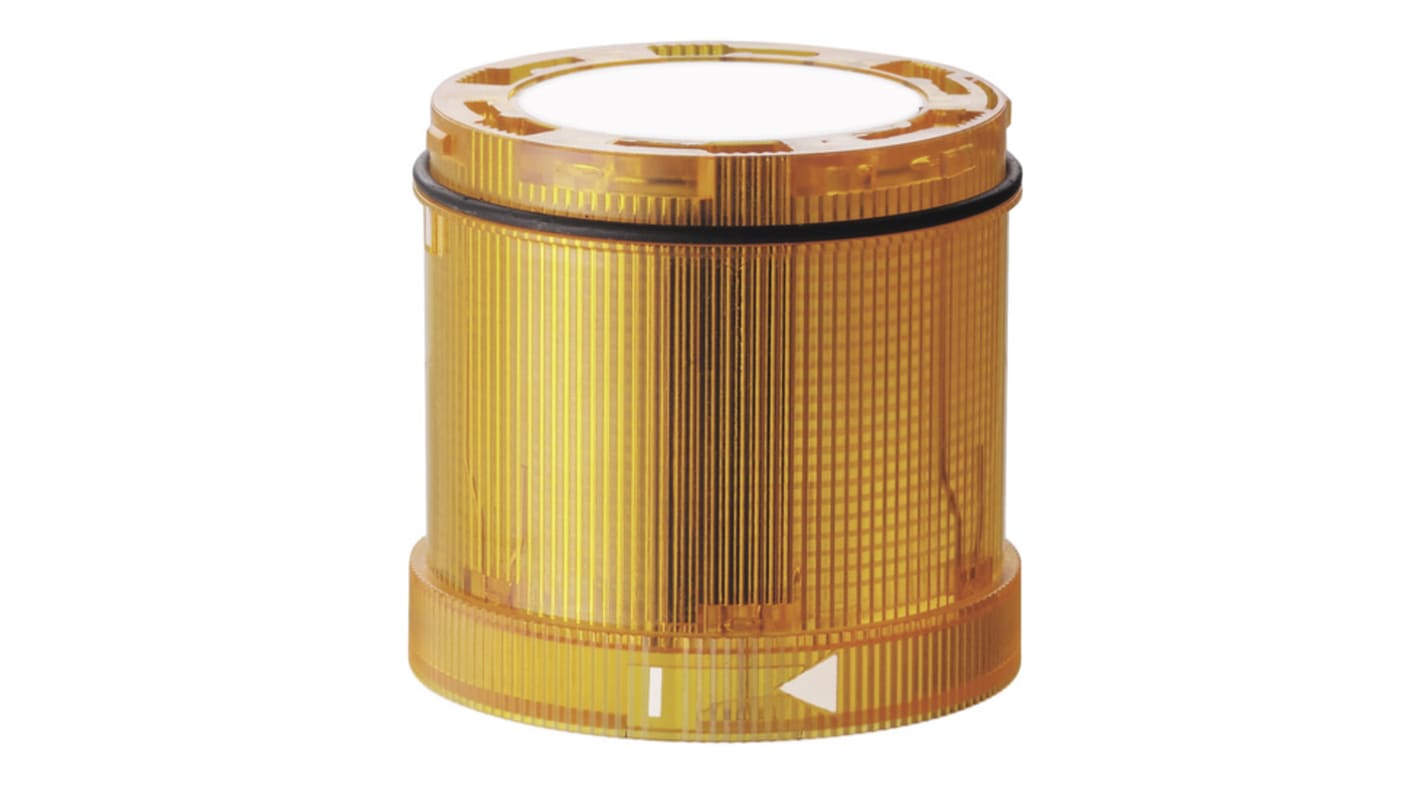

Werma KombiSIGN 72 Series Beacon, Yellow Housing, 24V Maximum Supply Voltage - 647.310.75
This beacon is a compact industrial signal designed to provide visual and audible alerts in machinery and process environments. It combines LED light output with an electronic sound source to convey warnings or status changes, while the housing and lens are finished in high-visibility yellow to aid recognition on the factory floor.
Features and Benefits:
• IP65 ingress protection enables use in wet or dusty locations
• LED illumination draws only 80mA, improving energy efficiency
• Operates from 24V AC/DC for versatile supply compatibility
• Electronic sounder delivers 95-105 dB for clear audible signalling
• Dual-mode light supports blinking and steady indications
• Twinlight configuration provides simultaneous visual redundancy
• LED illumination draws only 80mA, improving energy efficiency
• Operates from 24V AC/DC for versatile supply compatibility
• Electronic sounder delivers 95-105 dB for clear audible signalling
• Dual-mode light supports blinking and steady indications
• Twinlight configuration provides simultaneous visual redundancy
Applications
• Suitable for machine-status signalling on production lines
• Ideal for assembly stations requiring combined audio/visual alerts
• Used with control panels in wet manufacturing environments
• Can be used for safety indication on mobile equipment
• Suitable for integration into automated process systems
• Ideal for assembly stations requiring combined audio/visual alerts
• Used with control panels in wet manufacturing environments
• Can be used for safety indication on mobile equipment
• Suitable for integration into automated process systems
What temperature range can it withstand during operation?
It functions across a wide span from -30°C up to 60°C to suit harsh workshop conditions.
What approvals cover its conformity to safety standards?
It carries CE, cULus and UKCA approvals indicating adherence to recognised regulatory criteria.
How compact is the mounting footprint for panel or base installation?
The unit mounts on a 70 mm diameter base to fit confined installation spaces.
Is the lamp replaceable or specified as integral?
The light source is LED and is supplied fitted as part of the component.
Can it be used in certified hazardous locations?
It does not hold hazardous-area certification and should not be installed where such approval is required.
