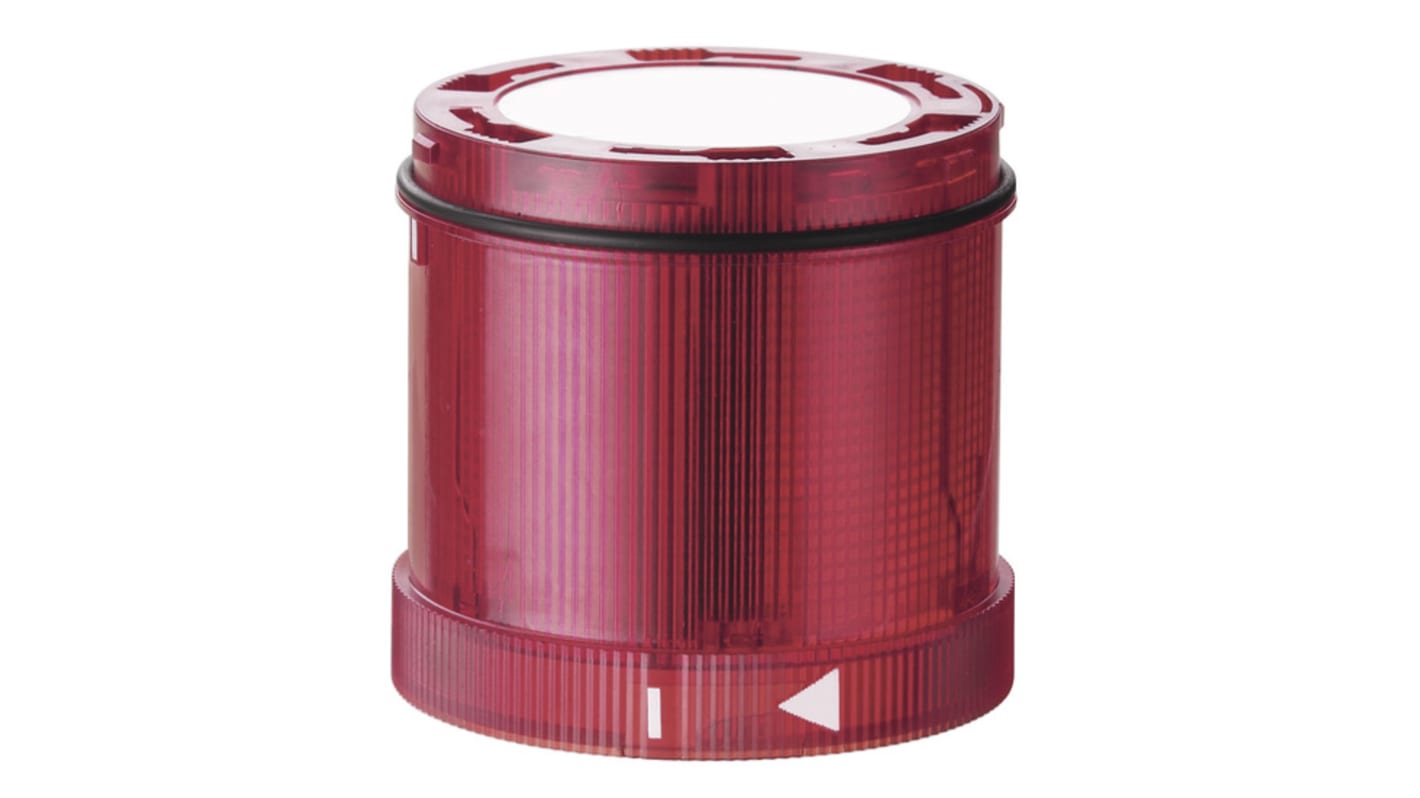

Werma KombiSIGN 72 Series Red Blinking, Steady Effect Beacon, LED Bulb 24V ac/dc, AC/DC, IP65
- RS Stock No.:
- 184-5126
- Distrelec หมายเลขบทความ:
- 300-87-819
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 647.110.75
- ผู้ผลิต:
- Werma
ยอดรวมย่อย (1 ชิ้น)*
THB1,821.15
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,948.63
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 161 ชิ้นจะส่งได้หลังจากวันที่ 10 สิงหาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB1,821.15 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 184-5126
- Distrelec หมายเลขบทความ:
- 300-87-819
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 647.110.75
- ผู้ผลิต:
- Werma
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Werma | |
| Series | KombiSIGN 72 | |
| Product Type | Beacon | |
| Minimum Sound Level | 95dB | |
| Component Type | Twinlight | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Light Effect | Blinking, Steady | |
| Sounder Type | Electronic | |
| Mount Type | Base | |
| Current Consumption | 80mA | |
| Lens Colour | Red | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V ac/dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Maximum Sound Level | 105dB | |
| Height | 66mm | |
| Standards/Approvals | CE, cULus, UKCA | |
| Base Diameter | 70mm | |
| Hazardous Area Certification | No | |
| IP Rating | IP65 | |
| Housing Colour | Red | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Werma | ||
Series KombiSIGN 72 | ||
Product Type Beacon | ||
Minimum Sound Level 95dB | ||
Component Type Twinlight | ||
Multifunction No | ||
Current Type AC/DC | ||
Light Effect Blinking, Steady | ||
Sounder Type Electronic | ||
Mount Type Base | ||
Current Consumption 80mA | ||
Lens Colour Red | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V ac/dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Maximum Sound Level 105dB | ||
Height 66mm | ||
Standards/Approvals CE, cULus, UKCA | ||
Base Diameter 70mm | ||
Hazardous Area Certification No | ||
IP Rating IP65 | ||
Housing Colour Red | ||
- COO (Country of Origin):
- DE
Werma KombiSIGN 72 Series Beacon, 24V Maximum Supply Voltage, 105dB Maximum Sound Level - 647.110.75
This beacon is a compact visual and audible signalling device designed for industrial environments where clear status indication is required. It combines a red LED light and an electronic sounder to deliver both visual and acoustic alerts. The unit is intended for surface mounting and operates from AC or DC supplies, providing selectable flashing or steady light behaviour suitable for process, safety and equipment signalling.
Features and Benefits:
• IP65 rated weatherproof protection for harsh environments
• Red LED twinlight provides visible flashing or steady indication
• Operates from 24V AC/DC enabling flexible power integration
• Electronic sounder delivers up to 105dB for audible alerts
• Wide operating range from -30°C to 60°C for low-temperature use
• Compact 70mm base supports space-saving installation
• Red LED twinlight provides visible flashing or steady indication
• Operates from 24V AC/DC enabling flexible power integration
• Electronic sounder delivers up to 105dB for audible alerts
• Wide operating range from -30°C to 60°C for low-temperature use
• Compact 70mm base supports space-saving installation
Applications
• Suitable for factory floor machine status indication
• Ideal for loading bays requiring weatherproof signalling
• Can be used with control panels in outdoor enclosures
• Used for assembly lines needing both visual and audible alerts
• Suitable for maintenance areas where compact signalling is required
• Ideal for loading bays requiring weatherproof signalling
• Can be used with control panels in outdoor enclosures
• Used for assembly lines needing both visual and audible alerts
• Suitable for maintenance areas where compact signalling is required
What type of lamp technology is used and how does it affect maintenance?
It uses LED illumination which reduces replacement frequency and lowers power draw compared with filament lamps.
How loud is the acoustic output at maximum setting and what range does it cover?
The sounder can reach 105dB at its highest level, providing effective warning across noisy industrial spaces where high audibility is required.
What mounting form does the product use and how does that influence installation?
The unit mounts by its base, simplifying fixed installation onto flat surfaces or panels without additional brackets.
Which approvals accompany the unit for use in regulated installations?
It carries CE, cULus and UKCA approvals suitable for many regulated industrial deployments.
