Lorlin RA, 3 Position 4PST Rotary Switch, 1A, Solder
- RS Stock No.:
- 204-7720
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RA01D03BSSMS0X
- ผู้ผลิต:
- Lorlin
รับส่วนลดสำหรับการซื้อจำนวนมาก
เพิ่มอีก 50 ชิ้นเพื่อประหยัดได้ THB2,132.00
ดูตัวเลือกการกำหนดราคาในการซื้อปริมาณมากยอดรวมย่อย (1 ชิ้น)*
THB1,421.02
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,520.49
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- 25 ชิ้นจะส่งได้หลังจากวันที่ 25 พฤศจิกายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย | การประหยัด |
|---|---|---|
| 1 - 49 | THB1,421.02 | - |
| 50 - 99 | THB1,378.38 | THB2,132.00 |
| 100 - 249 | THB1,335.76 | THB8,526.00 |
| 250 - 499 | THB1,307.34 | THB28,420.00 |
| 500 + | THB1,278.92 | THB71,050.00 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 204-7720
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- RA01D03BSSMS0X
- ผู้ผลิต:
- Lorlin
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Lorlin | |
| Product Type | Rotary Switch | |
| Series | RA | |
| Contact Configuration | 4PST | |
| Switch Contact Current | 1A | |
| Number of Positions | 3 | |
| Housing Material | Zinc Alloy | |
| Number of Poles | 4 | |
| Depth | 23.8mm | |
| Maximum AC Voltage | 250V ac | |
| Width | 25.4mm | |
| Maximum DC Voltage | 12V dc | |
| Minimum Operating Temperature | -30°C | |
| Mount Type | Panel | |
| Switch Configuration | Off-On | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Diameter | 25.4mm | |
| Terminal Type | Solder | |
| Angle of Throw | 30 ° | |
| Mechanical Life | 10000Operations | |
| Illuminated | No | |
| Height | 9mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Lorlin | ||
Product Type Rotary Switch | ||
Series RA | ||
Contact Configuration 4PST | ||
Switch Contact Current 1A | ||
Number of Positions 3 | ||
Housing Material Zinc Alloy | ||
Number of Poles 4 | ||
Depth 23.8mm | ||
Maximum AC Voltage 250V ac | ||
Width 25.4mm | ||
Maximum DC Voltage 12V dc | ||
Minimum Operating Temperature -30°C | ||
Mount Type Panel | ||
Switch Configuration Off-On | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Diameter 25.4mm | ||
Terminal Type Solder | ||
Angle of Throw 30 ° | ||
Mechanical Life 10000Operations | ||
Illuminated No | ||
Height 9mm | ||

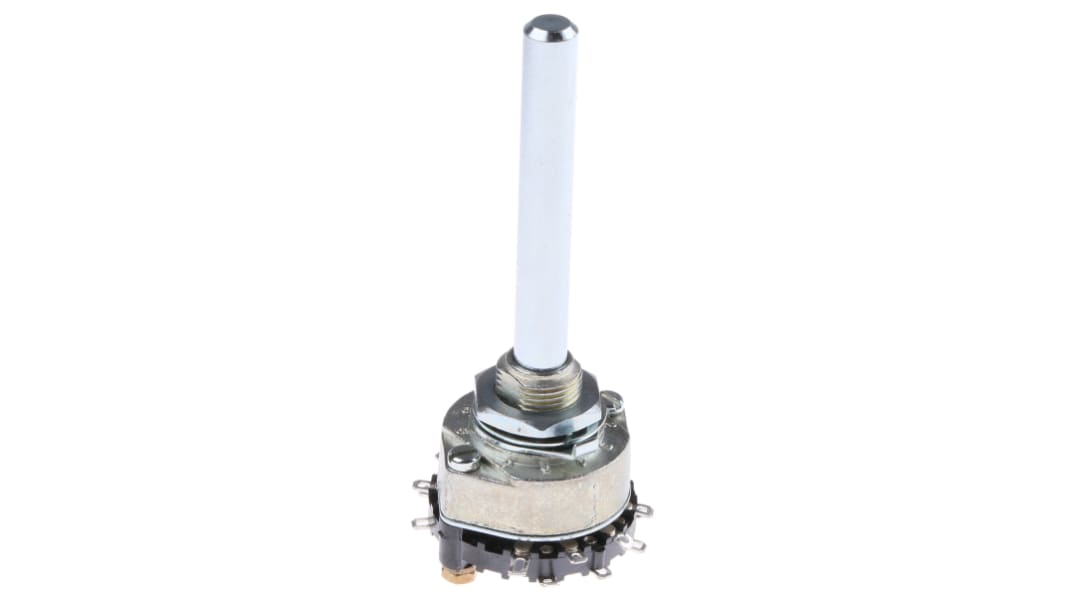

Wafer switches, RA series
Rotary switches for panel mounting, with a 6 mm diameter shaft.
Solder terminals.
Available in four versions.
Additional wafers can be ordered separately.
PT series accessories must be used to fit additional wafers (extension shafts, spacers and washers).
Buttons are also available in the catalogue.
