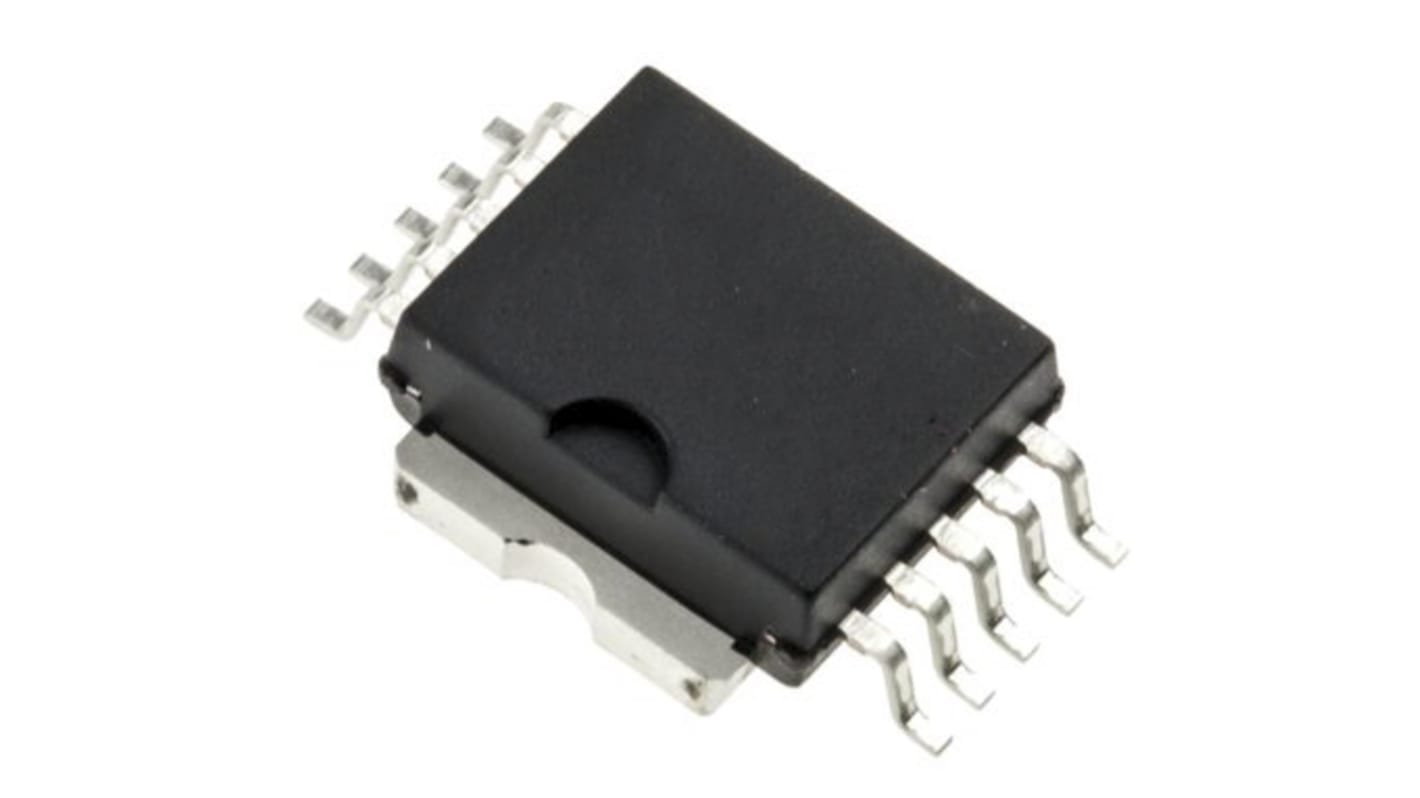

onsemi NCV1060BD100R2G, PWM Controller, 9 V, 65 kHz 10-Pin, SOIC
- RS Stock No.:
- 185-8092
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NCV1060BD100R2G
- ผู้ผลิต:
- onsemi
ไม่พร้อมจำหน่ายในตอนนี้
ขออภัย เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกเมื่อใด
- RS Stock No.:
- 185-8092
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- NCV1060BD100R2G
- ผู้ผลิต:
- onsemi
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | onsemi | |
| Maximum Switching Frequency | 65 kHz | |
| Output Voltage | 670 V | |
| Output Current | 300 mA | |
| Mounting Type | Surface Mount | |
| Fall Time | 10ns | |
| Rise Time | 20ns | |
| Package Type | SOIC | |
| Pin Count | 10 | |
| Maximum Duty Cycle | 72% | |
| Dimensions | 5 x 4 x 1.75mm | |
| Length | 5mm | |
| PWM Controller Type | Current Mode | |
| Width | 4mm | |
| Height | 1.75mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Supply Voltage | 9 V | |
| Maximum Operating Temperature | +150 °C | |
| Automotive Standard | AEC-Q100 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand onsemi | ||
Maximum Switching Frequency 65 kHz | ||
Output Voltage 670 V | ||
Output Current 300 mA | ||
Mounting Type Surface Mount | ||
Fall Time 10ns | ||
Rise Time 20ns | ||
Package Type SOIC | ||
Pin Count 10 | ||
Maximum Duty Cycle 72% | ||
Dimensions 5 x 4 x 1.75mm | ||
Length 5mm | ||
PWM Controller Type Current Mode | ||
Width 4mm | ||
Height 1.75mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Supply Voltage 9 V | ||
Maximum Operating Temperature +150 °C | ||
Automotive Standard AEC-Q100 | ||
- COO (Country of Origin):
- TH
Built−in 670 V MOSFET with RDS(on) of 34 Ω
Large Creepage Distance Between High−voltage Pins
Adjustable Peak Current up to 250 mA
Direct Feedback connection for non-isolated converter
Internal and Adjustable Over Power Protection (OPP) Circuit
Auto-Recovery Output Short Circuit Protection with Timer-Based Detection
Current−Mode Fixed Frequency Operation – 60 or 100 kHz
With (A version) or without (B version) AC Input Voltage Line Detection
Frequency Jittering (including during frequency foldback mode)
Up to 8W output SMPS design capability
Safer and more robust design even with SMD packages
Automotive Applications
Increased design scalability
Simpler and lower cost Buck or Buck-Boost designs
Non dissipative proprietary technique to self protect the load
Provides more robust protection without worrying about the coupling of the aux
Ability to scale for efficiency or size
Enhanced Protection Against Faults when AC line is too low or for power supply with Vin down to 21 Vdc
Better EMI Signature Over the Entire Operating Range
Applications
EV Auxiliary Power Supply
End Products
On Board chargers
Traction Inverters
Large Creepage Distance Between High−voltage Pins
Adjustable Peak Current up to 250 mA
Direct Feedback connection for non-isolated converter
Internal and Adjustable Over Power Protection (OPP) Circuit
Auto-Recovery Output Short Circuit Protection with Timer-Based Detection
Current−Mode Fixed Frequency Operation – 60 or 100 kHz
With (A version) or without (B version) AC Input Voltage Line Detection
Frequency Jittering (including during frequency foldback mode)
Up to 8W output SMPS design capability
Safer and more robust design even with SMD packages
Automotive Applications
Increased design scalability
Simpler and lower cost Buck or Buck-Boost designs
Non dissipative proprietary technique to self protect the load
Provides more robust protection without worrying about the coupling of the aux
Ability to scale for efficiency or size
Enhanced Protection Against Faults when AC line is too low or for power supply with Vin down to 21 Vdc
Better EMI Signature Over the Entire Operating Range
Applications
EV Auxiliary Power Supply
End Products
On Board chargers
Traction Inverters
