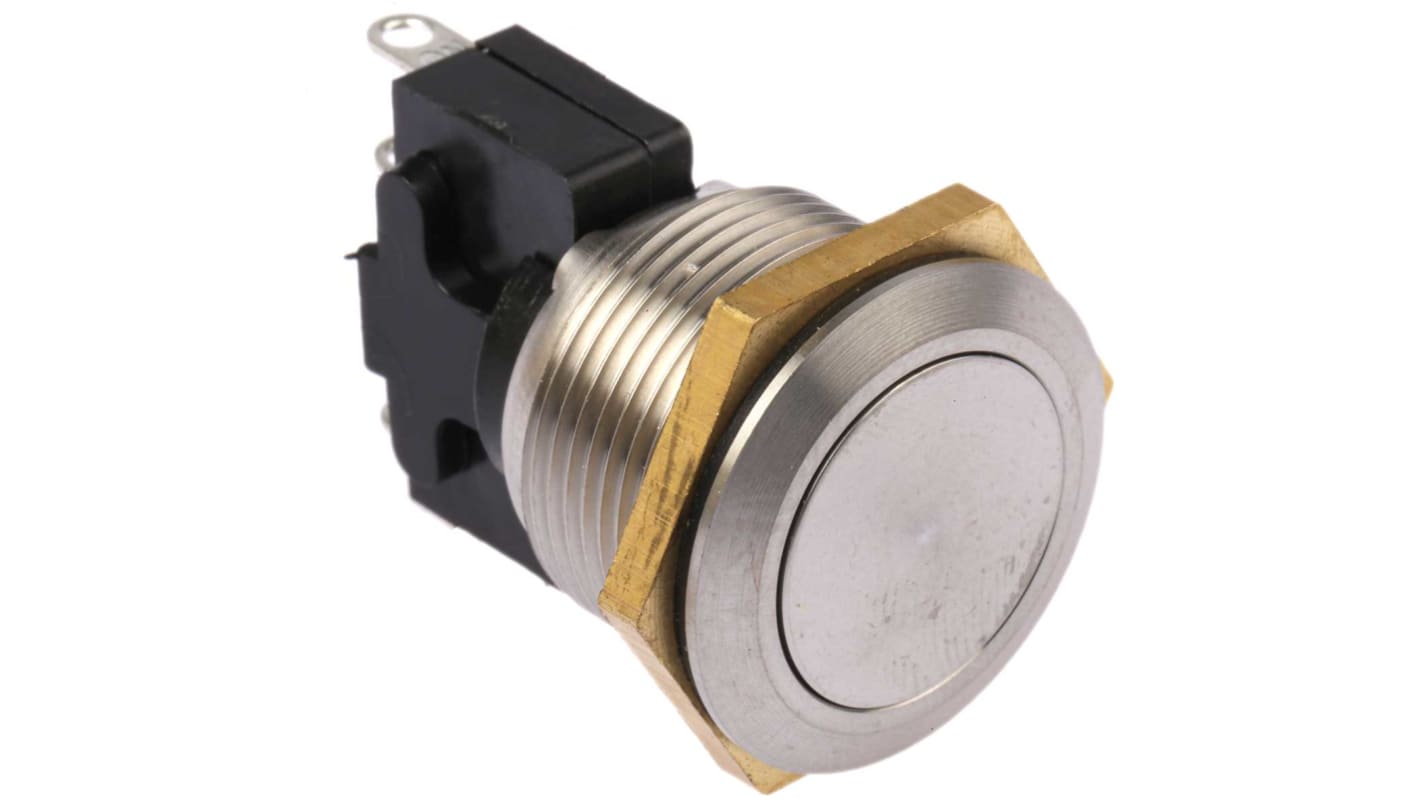

ITW Switches 76-95 Series Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPDT, 250V ac, IP67
- RS Stock No.:
- 841-609
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 76-9510/4044
- ผู้ผลิต / Manufacturer:
- ITW Switches
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ดู Push Button Switches ทั้งหมด
137 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB651.81
(exc. VAT)
THB697.44
(inc. VAT)
Units | Per unit |
1 - 9 | THB651.81 |
10 - 49 | THB632.26 |
50 - 99 | THB612.70 |
100 - 249 | THB599.67 |
250 + | THB586.62 |
- RS Stock No.:
- 841-609
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 76-9510/4044
- ผู้ผลิต / Manufacturer:
- ITW Switches
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- BZ
รายละเอียดสินค้า / Product Details
10A Robust Switches
This 76-95 Series are vandal resistant, push button switches from ITW. Their design is extremely rugged, making them particularly suited to applications where vandal resistance is necessary. They can be used in numerous applications. Such as:-
Vandal resistant requirements
Military environments
Industrial environments
Process control
Elevators
Medical instrumentation
Fishing vessels
Earth moving equipment
Railway carriage equipment
External security door controls
Military environments
Industrial environments
Process control
Elevators
Medical instrumentation
Fishing vessels
Earth moving equipment
Railway carriage equipment
External security door controls
Features and Benefits
Vandal resistant – designed to withstand impacts of significant force.
Panel sealed to IP67 – (totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
Stainless steel body and buttons – resists corrosion, heat damage and chemical damage.
Front or rear mount versions – both types designed to reduce the possibility of an object being forced behind the switch to lever it from its mounting.
Momentary action push button switch - only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
Panel sealed to IP67 – (totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
Stainless steel body and buttons – resists corrosion, heat damage and chemical damage.
Front or rear mount versions – both types designed to reduce the possibility of an object being forced behind the switch to lever it from its mounting.
Momentary action push button switch - only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
Supplied with
Mounting hardware
ITW 76-9510/4044 Vandal Resistant Push Button Switch
This 76-9510/4044 is a vandal resistant push button switch.
Features and Benefits
Flush Button
Stainless Steel
Front panel – 15mm button
Solder terminals, single pole
Momentary action push button switch - only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position
Stainless Steel
Front panel – 15mm button
Solder terminals, single pole
Momentary action push button switch - only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Mounting Type | Panel Mount |
Push Button Style | Round |
Contact Configuration | Single Pole Double Throw (SPDT) |
Push Button Colour | Silver |
Panel Cut Out Diameter | 19.2mm |
Contact Material | Fine Silver |
Series | 76-95 |
IP Rating | IP67 |
Voltage Rating | 250V ac |
Contact Current Rating | 10 A @ 250 V ac |
Contact DC Voltage Rating | 5V |
Contact AC Voltage Rating | 250V |
Minimum Operating Temperature | -30°C |
Operating Temperature Range | -30 → +105°C |
Manufacturer Part No. | 76-9510/4044 |
Terminal Type | Solder |
Maximum Operating Temperature | +105°C |
