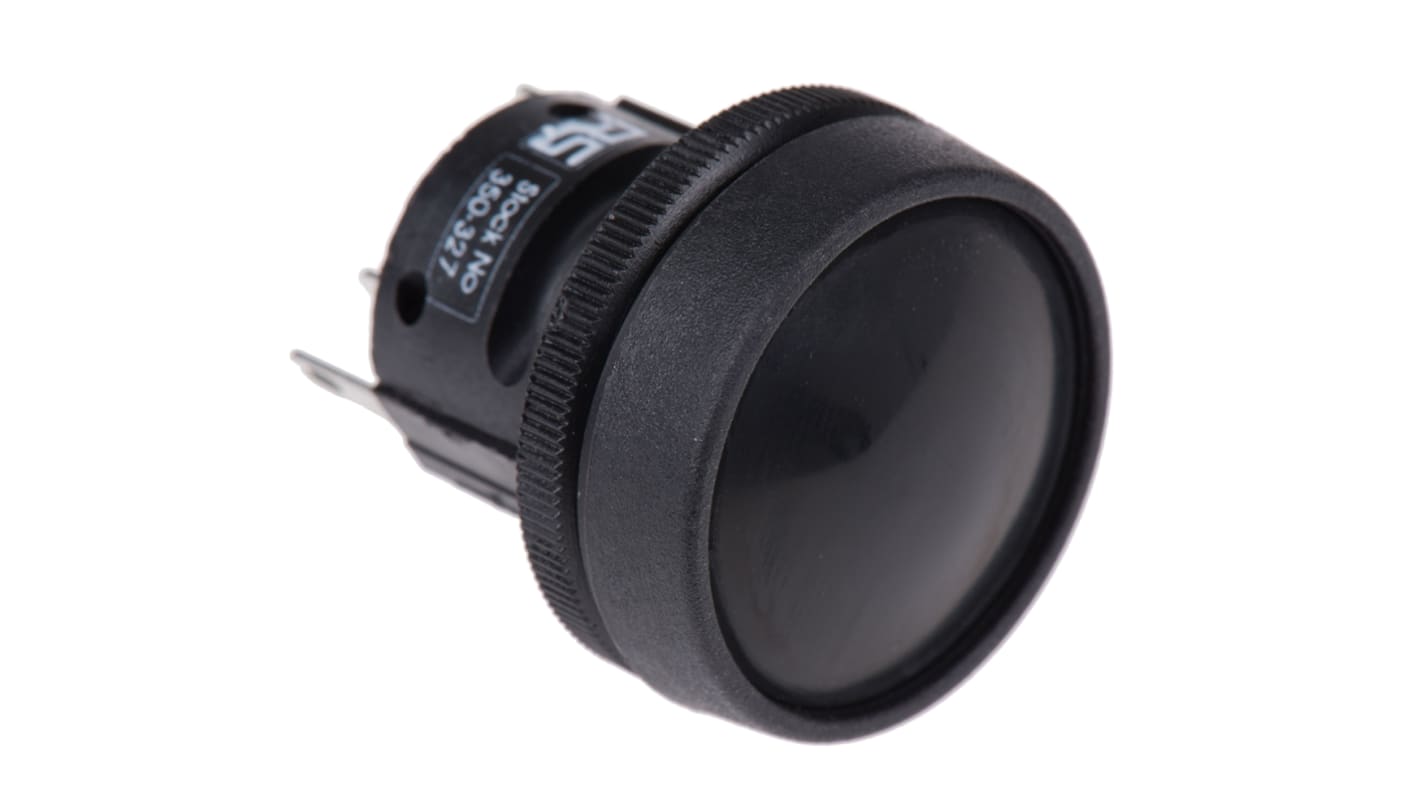

ITW Switches 76-91 Series Push Button Switch, Momentary, Panel, 22.5 mm Cutout, SPDT, Clear LED, IP67, 5 V
- RS Stock No.:
- 350-327
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 76-9116/439088
- ผู้ผลิต:
- ITW Switches
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB669.92
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB716.81
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 425 ชิ้นจะส่งได้หลังจากวันที่ 19 มกราคม 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 200 ชิ้นจะส่งได้หลังจากวันที่ 10 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 200 ชิ้นจะส่งได้หลังจากวันที่ 31 มีนาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 9 | THB669.92 |
| 10 - 49 | THB658.20 |
| 50 - 99 | THB641.76 |
| 100 - 249 | THB625.70 |
| 250 + | THB610.06 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 350-327
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 76-9116/439088
- ผู้ผลิต:
- ITW Switches
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | ITW Switches | |
| Product Type | Push Button Switch | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Illuminated | No | |
| Series | 76-91 | |
| Panel Cutout Size | 22.5 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| LED Colour | Clear | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -40°C | |
| Contact AC Voltage | 250V | |
| Contact DC Voltage | 5V | |
| Actuator Style | Round | |
| Switch Configuration | On-Off | |
| Maximum Operating Temperature | 80°C | |
| Switch Contact Current | 10 A | |
| Standards/Approvals | CSA, UL | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand ITW Switches | ||
Product Type Push Button Switch | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Illuminated No | ||
Series 76-91 | ||
Panel Cutout Size 22.5 mm | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
LED Colour Clear | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Minimum Operating Temperature -40°C | ||
Contact AC Voltage 250V | ||
Contact DC Voltage 5V | ||
Actuator Style Round | ||
Switch Configuration On-Off | ||
Maximum Operating Temperature 80°C | ||
Switch Contact Current 10 A | ||
Standards/Approvals CSA, UL | ||
This 76-9116/439088 is a momentary, panel mount push button switch.
Features and Benefits
• Black indicator colour
• Momentary 1 pole
• Momentary push button switch only makes electrical contact whilst the button is pressed, once you let go the switch returns it to the off position.
Flush Mount Pushbutton Switches, IP67 Sealed
The 76-91 Flexibutton Series from ITW, have been designed to cover a wide range of demanding environmental applications. Such as:-
• Field equipment
• Dairy
• Mining
• Hydraulic vehicles
• Marine Instrumentation
• Exterior security call points
• Car wash machinery
Features and Benefits
• Waterproof panel sealed to IP67 – approved to BS5420 (IEC144).
• The body of the flexibutton is flame retardant to UL94-VO.
• Robust construction making them ideal for use in harsh environments.
• Six button colours are available with solder/quick contact terminals as standard.
• Maximum panel thickness 4 mm.
Supplied with
Locknut and sealing washer
